Utility/Van Zoning

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle.

The following table explains the numbering system.

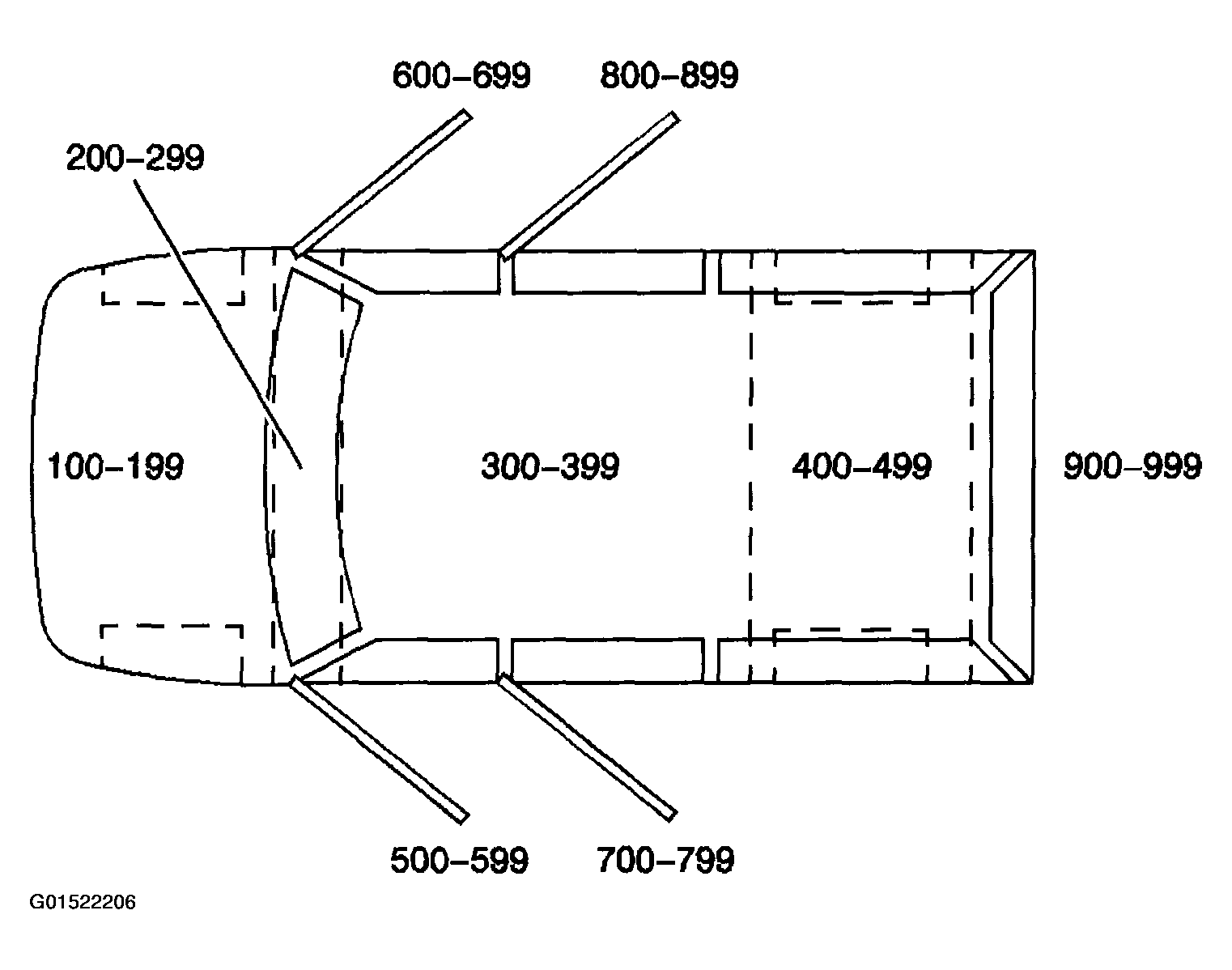

Fig 1: Identifying All Grounds In-Line Connectors

G01522206

Courtesy of GENERAL MOTORS CORP.

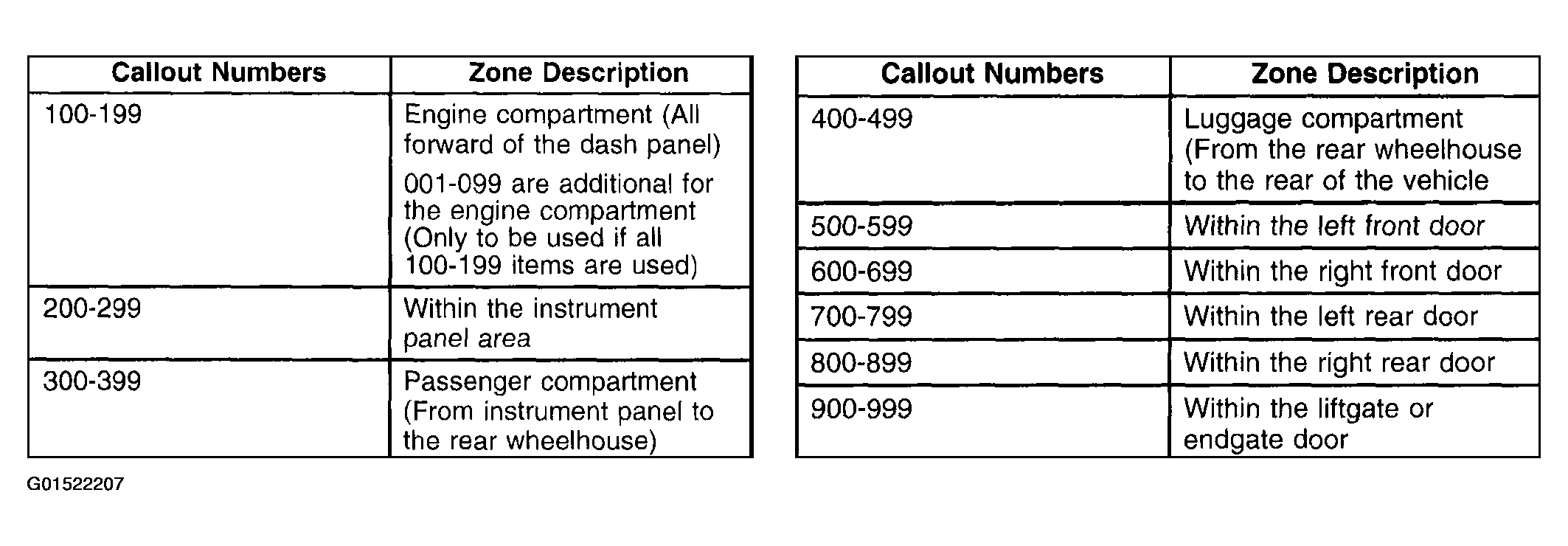

Fig 2: Identifying Utility/Van Zoning

G01522207

Courtesy of GENERAL MOTORS CORP.

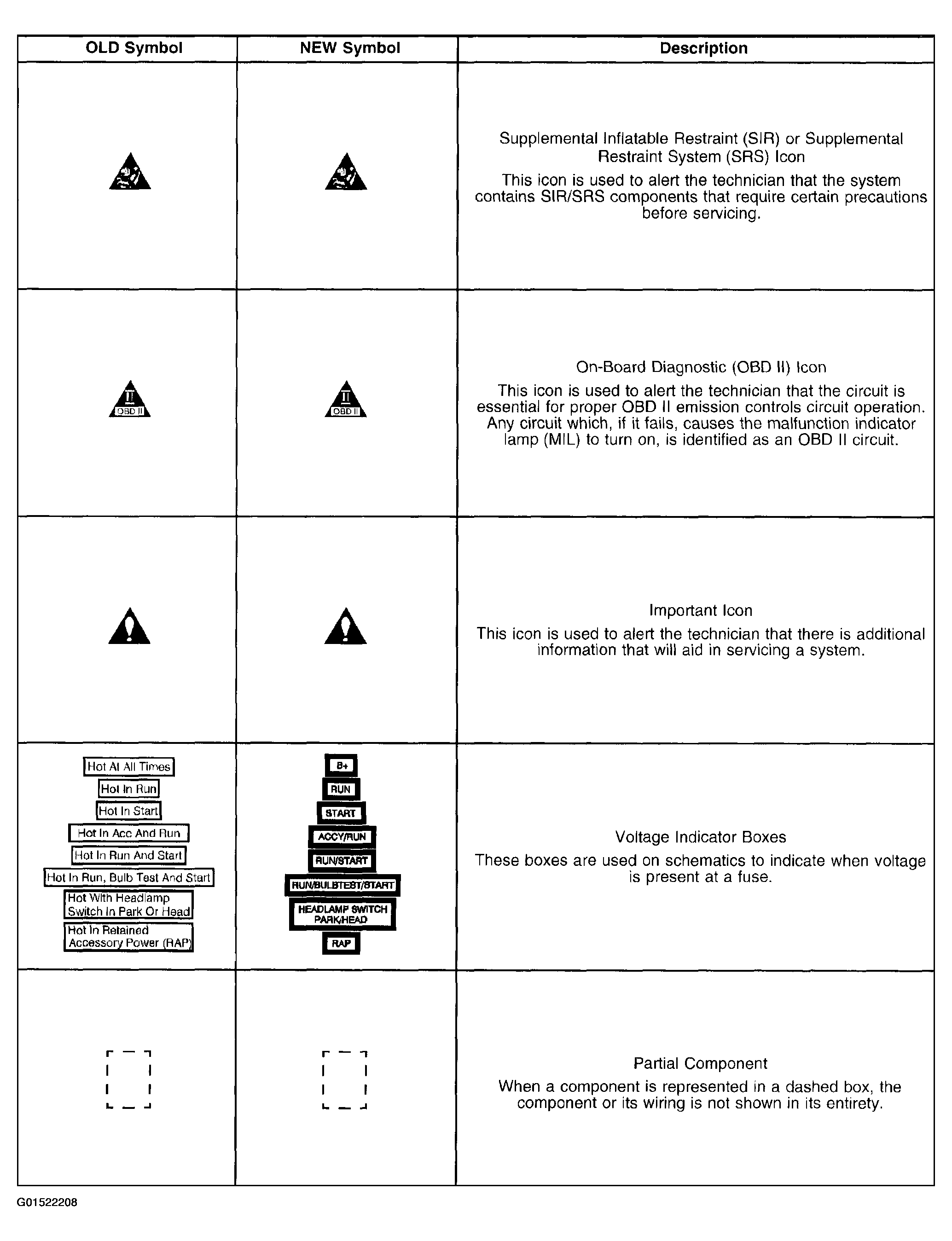

Fig 3: Electrical Symbols Description Chart

G01522208

Courtesy of GENERAL MOTORS CORP.

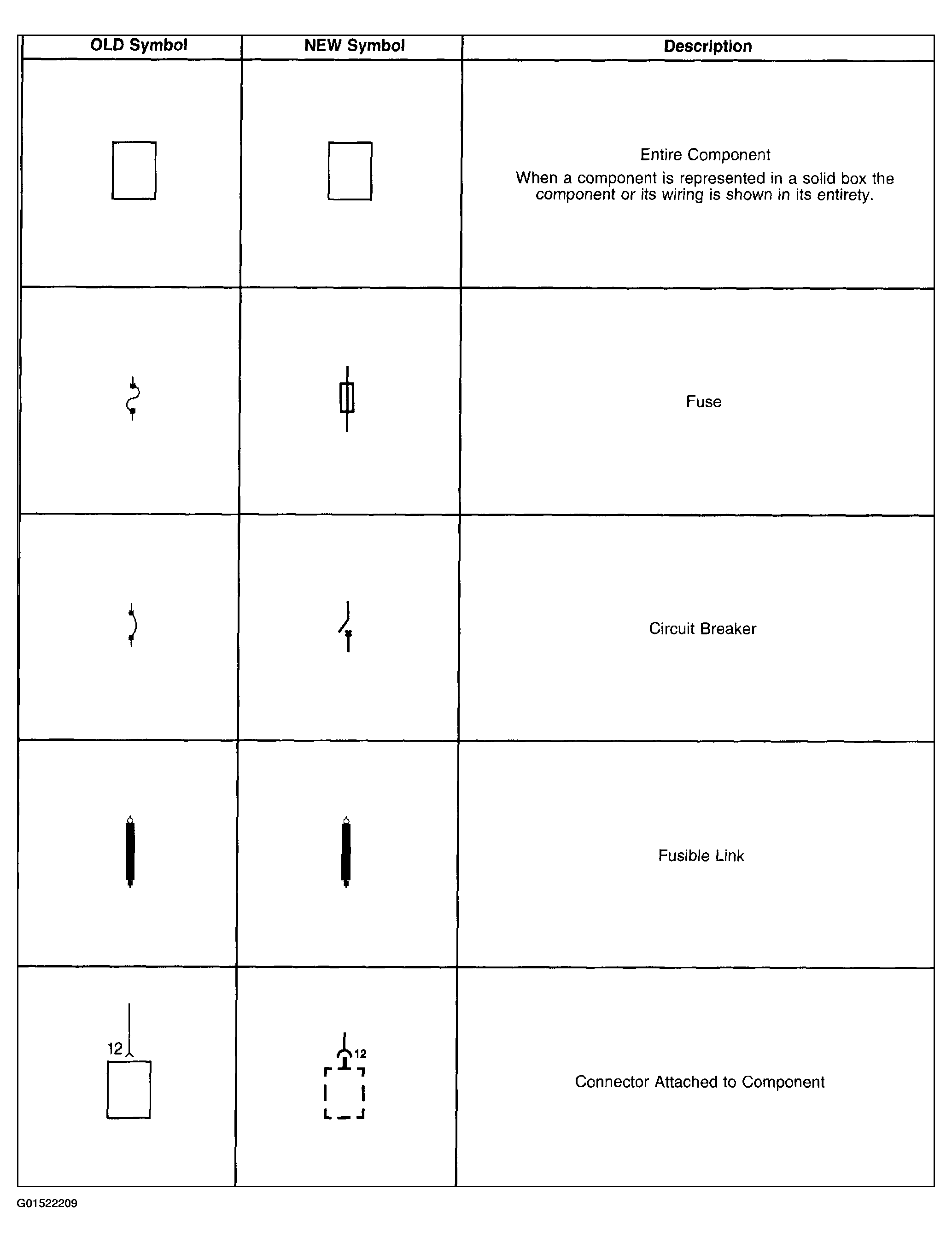

Fig 4: Electrical Symbols Description (1 Of 7)

G01522209

Courtesy of GENERAL MOTORS CORP.

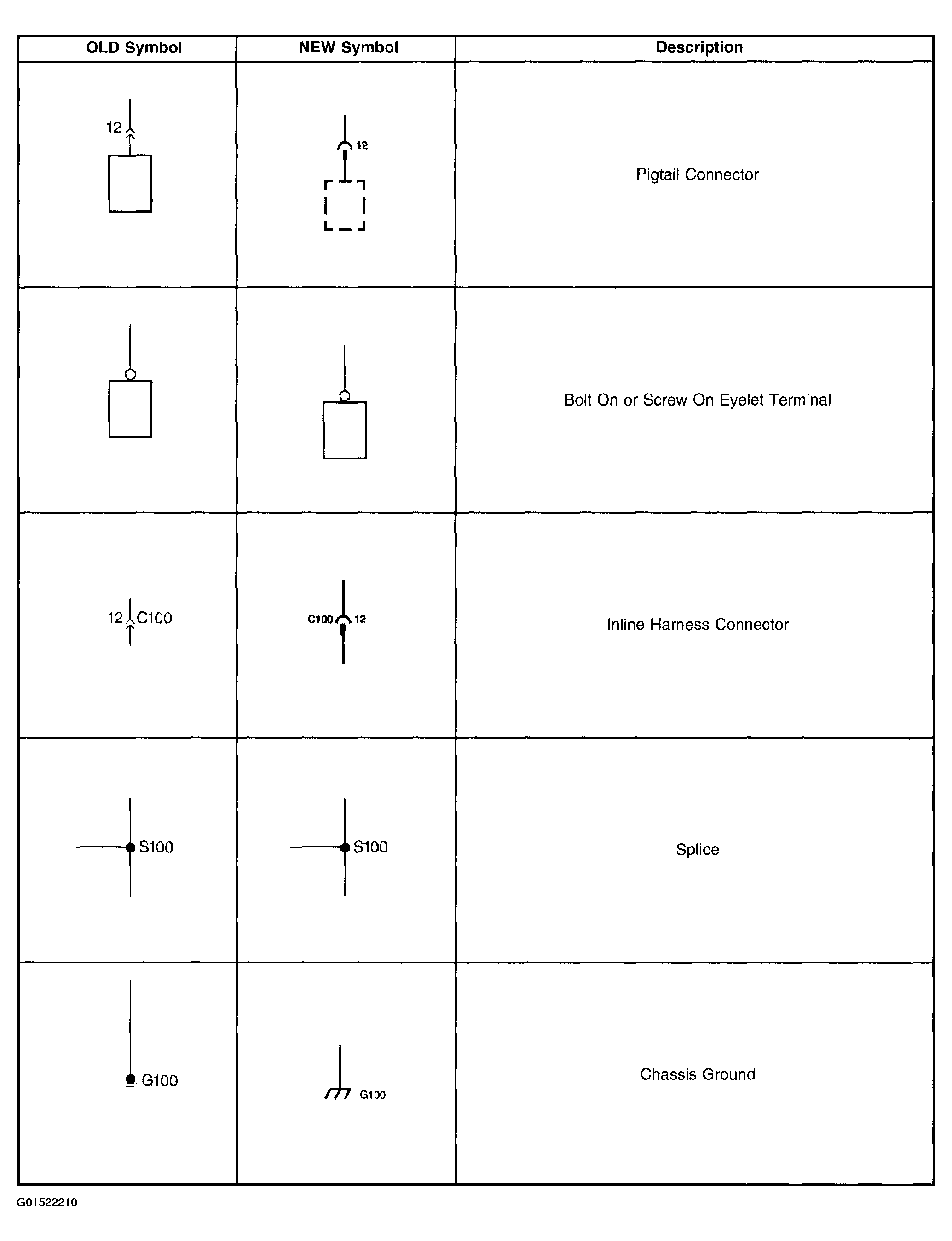

Fig 5: Electrical Symbols Description (2 Of 7)

G01522210

Courtesy of GENERAL MOTORS CORP.

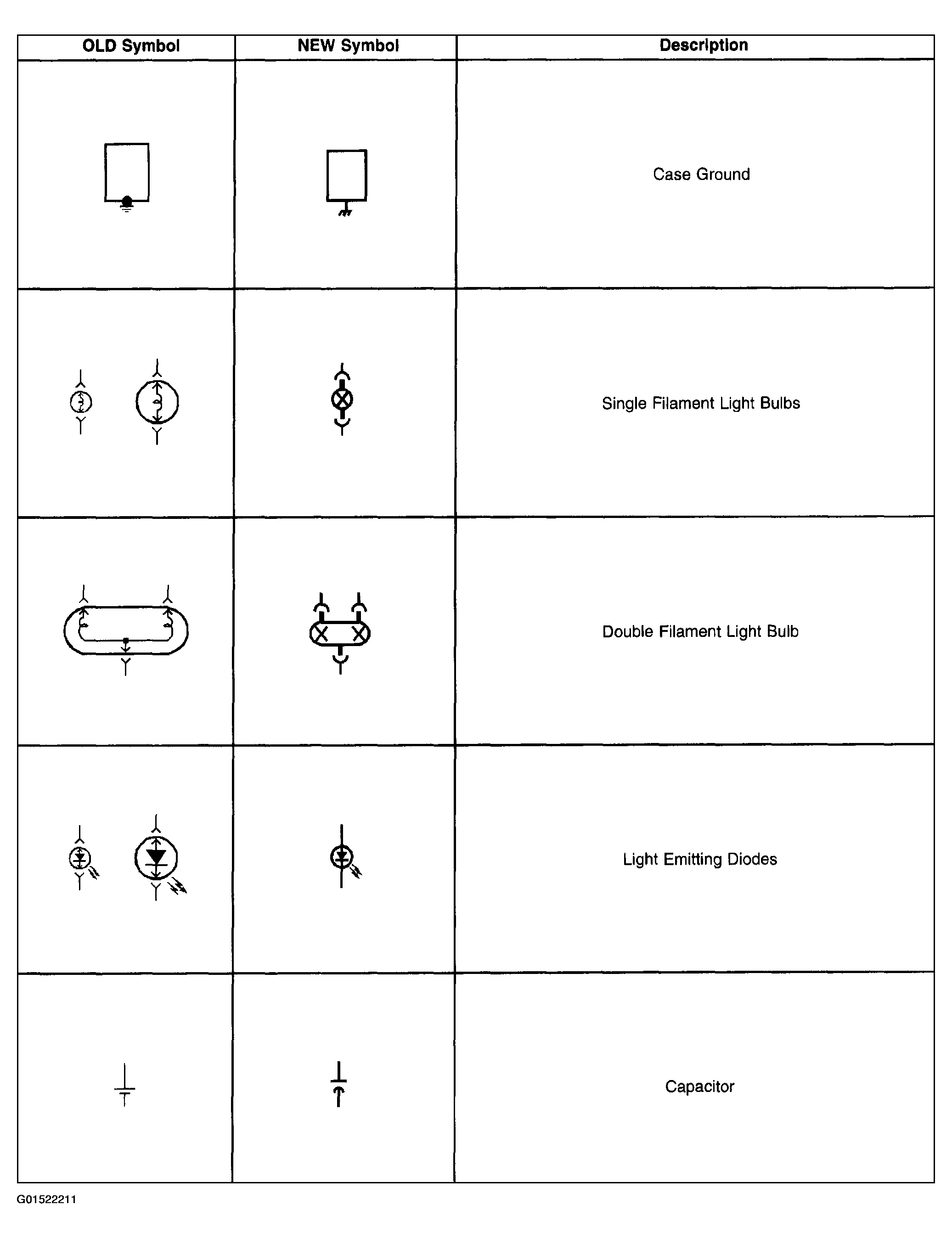

Fig 6: Electrical Symbols Description (3 Of 7)

G01522211

Courtesy of GENERAL MOTORS CORP.

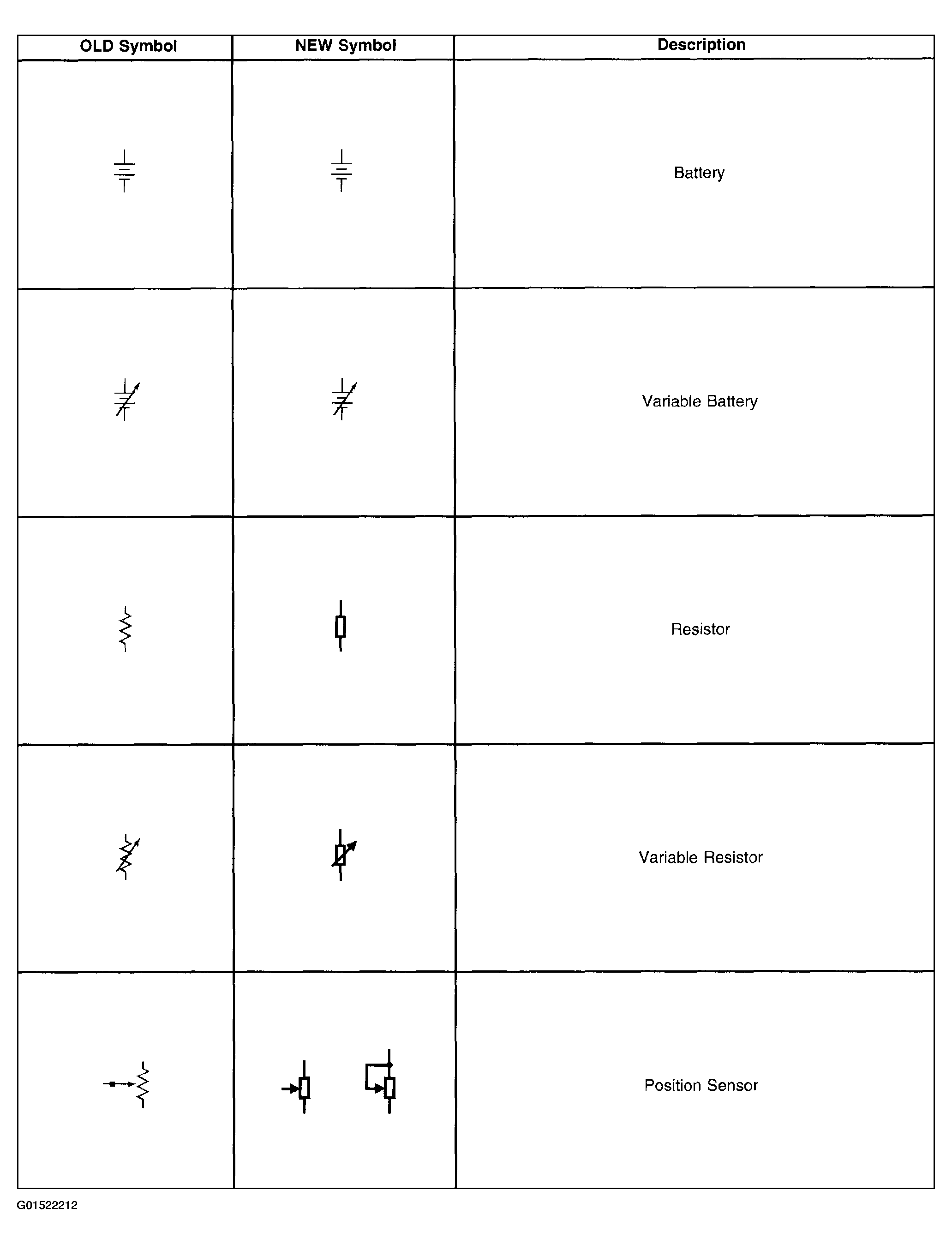

Fig 7: Electrical Symbols Description (4 Of 7)

G01522212

Courtesy of GENERAL MOTORS CORP.

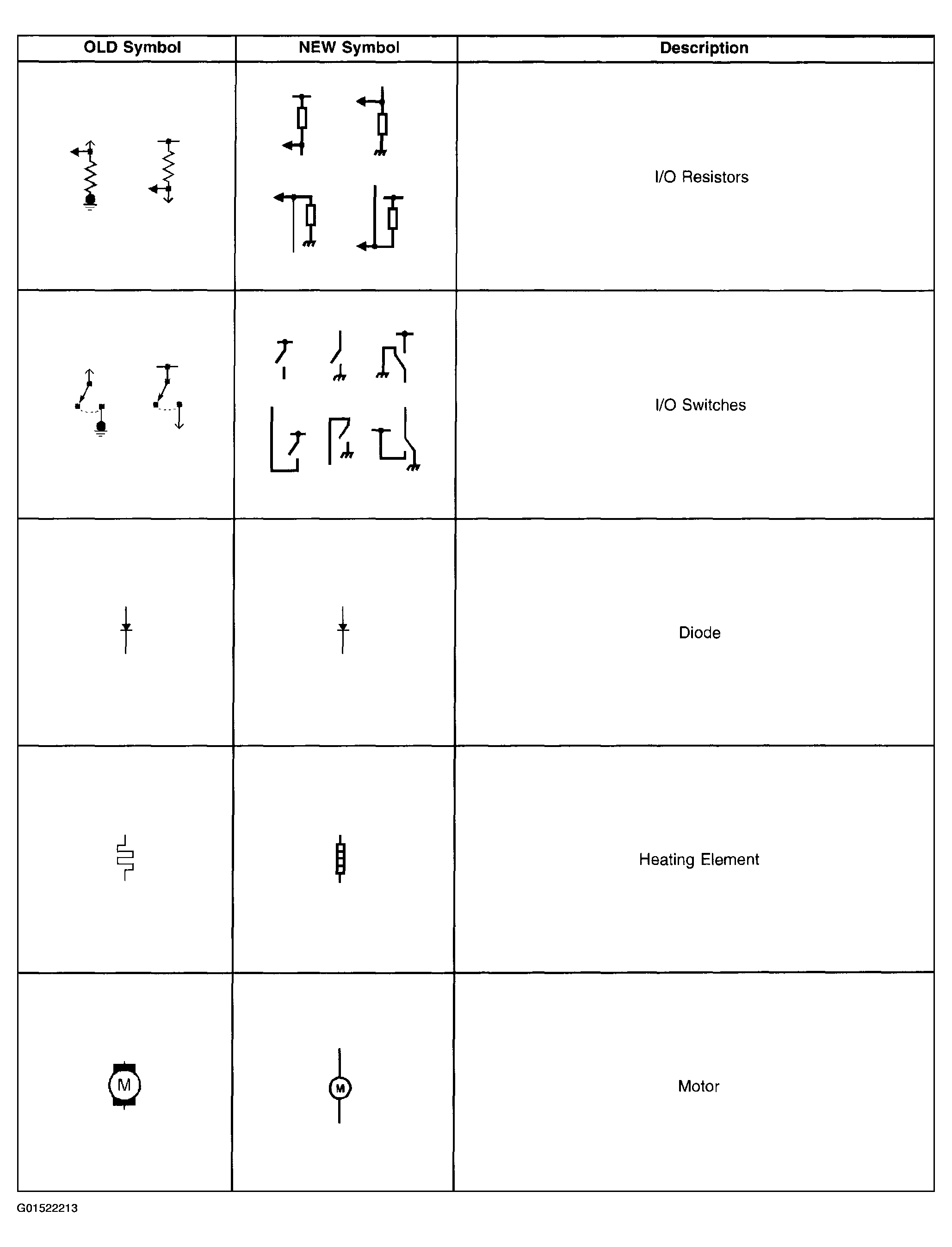

Fig 8: Electrical Symbols Description (5 Of 7)

G01522213

Courtesy of GENERAL MOTORS CORP.

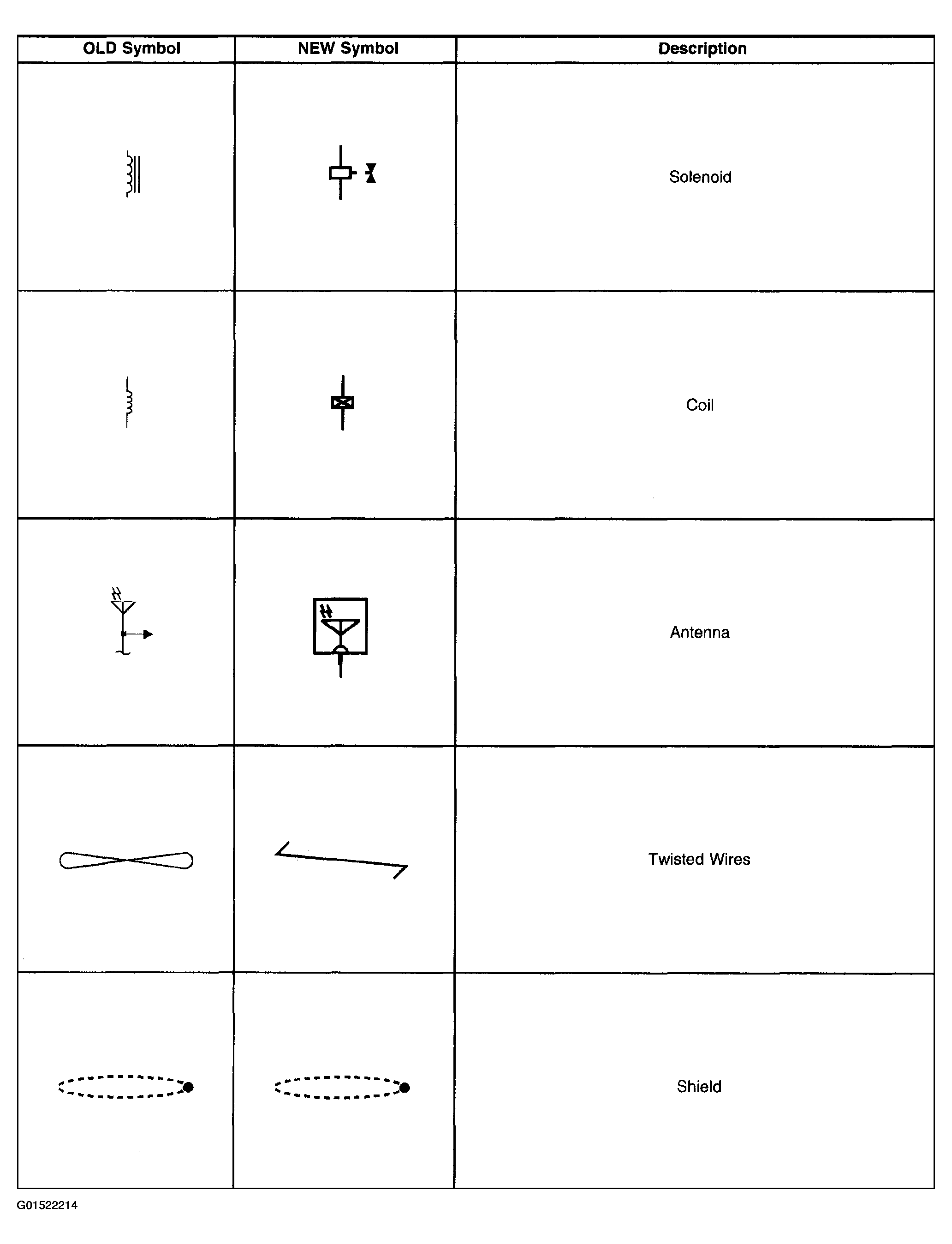

Fig 9: Electrical Symbols Description (6 Of 7)

G01522214

Courtesy of GENERAL MOTORS CORP.

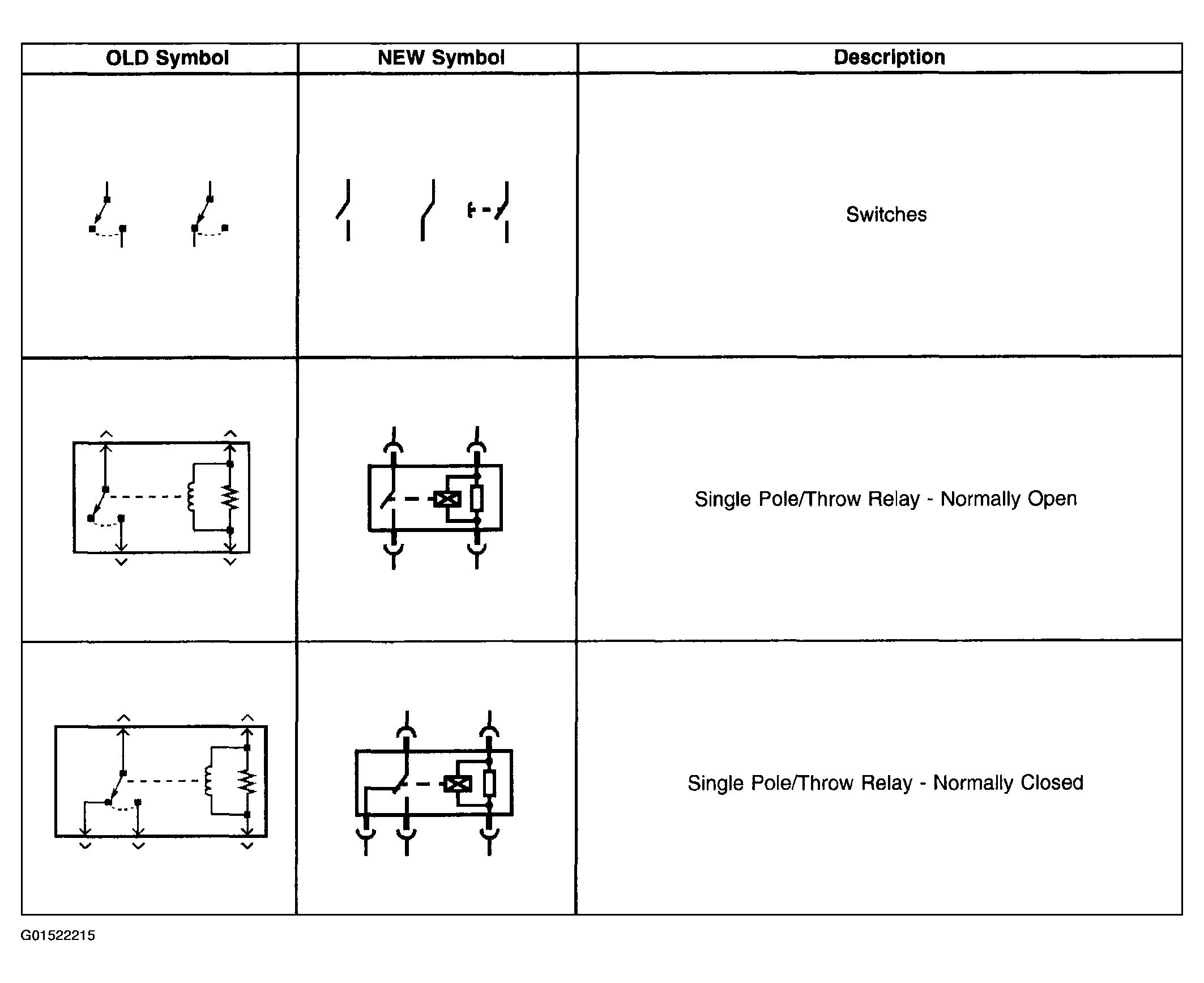

Fig 10: Electrical Symbols Description (7 Of 7)

G01522215

Courtesy of GENERAL MOTORS CORP.
