Power And Grounding Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

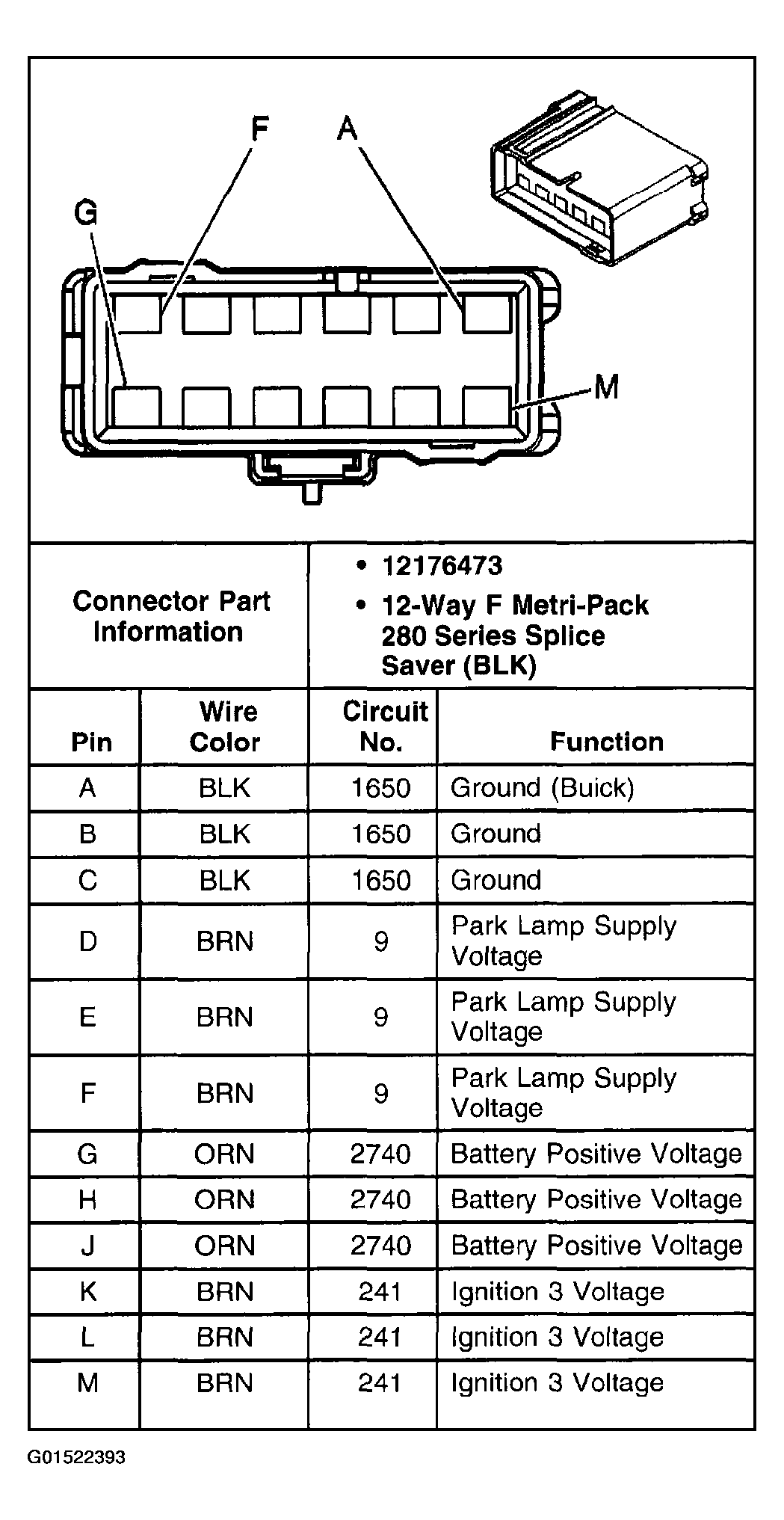

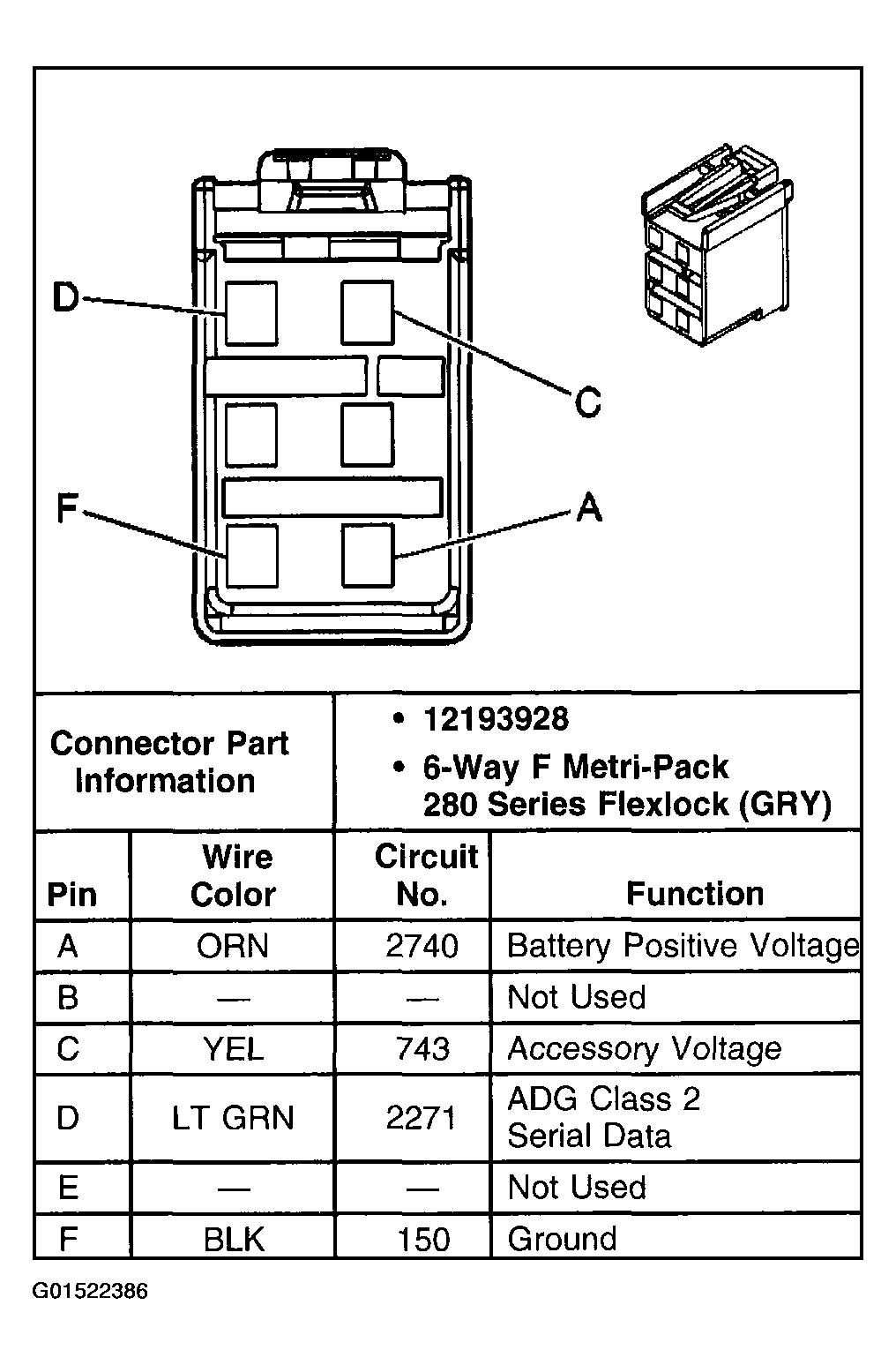

Fig 1: Identifying Auxiliary Drop Connector

Courtesy of GENERAL MOTORS CORP.

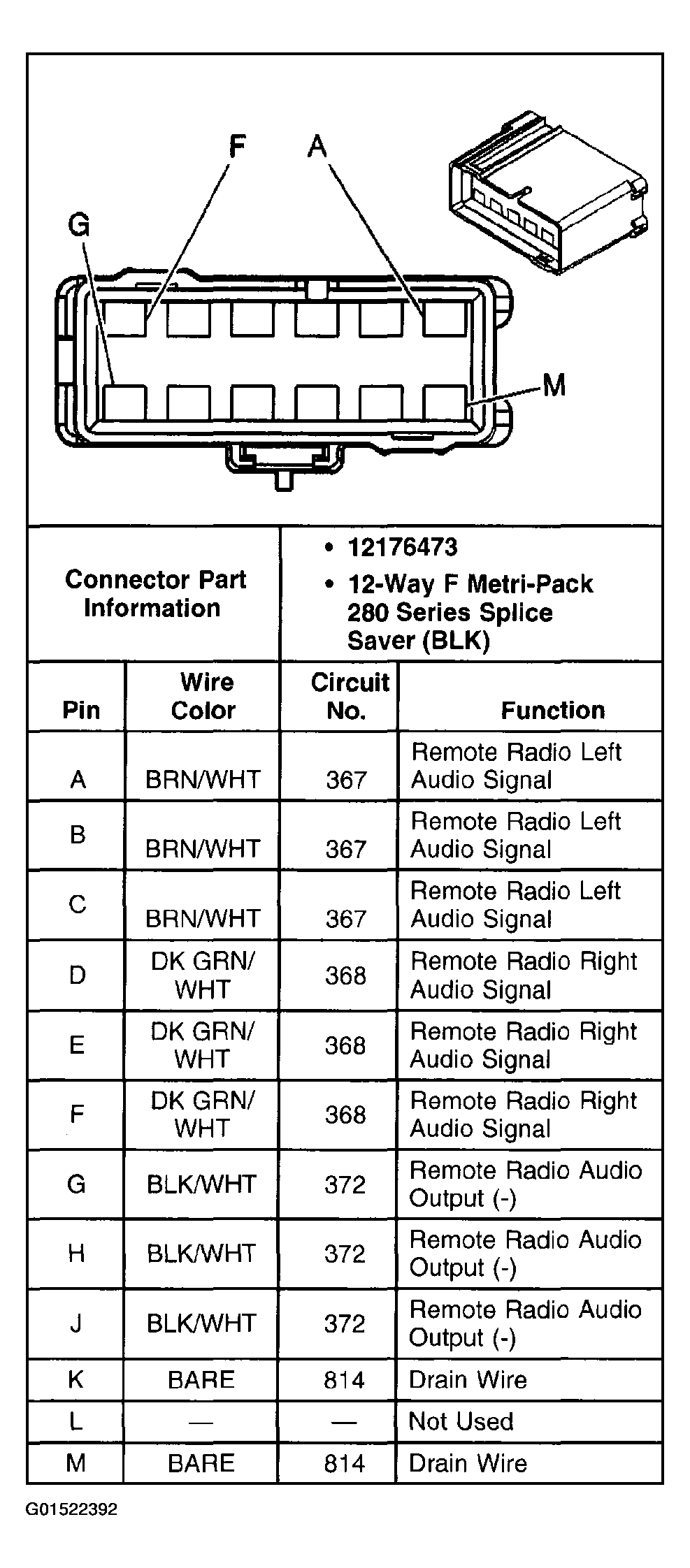

Fig 2: Identifying Auxiliary Power Outlet Console Connector

Courtesy of GENERAL MOTORS CORP.

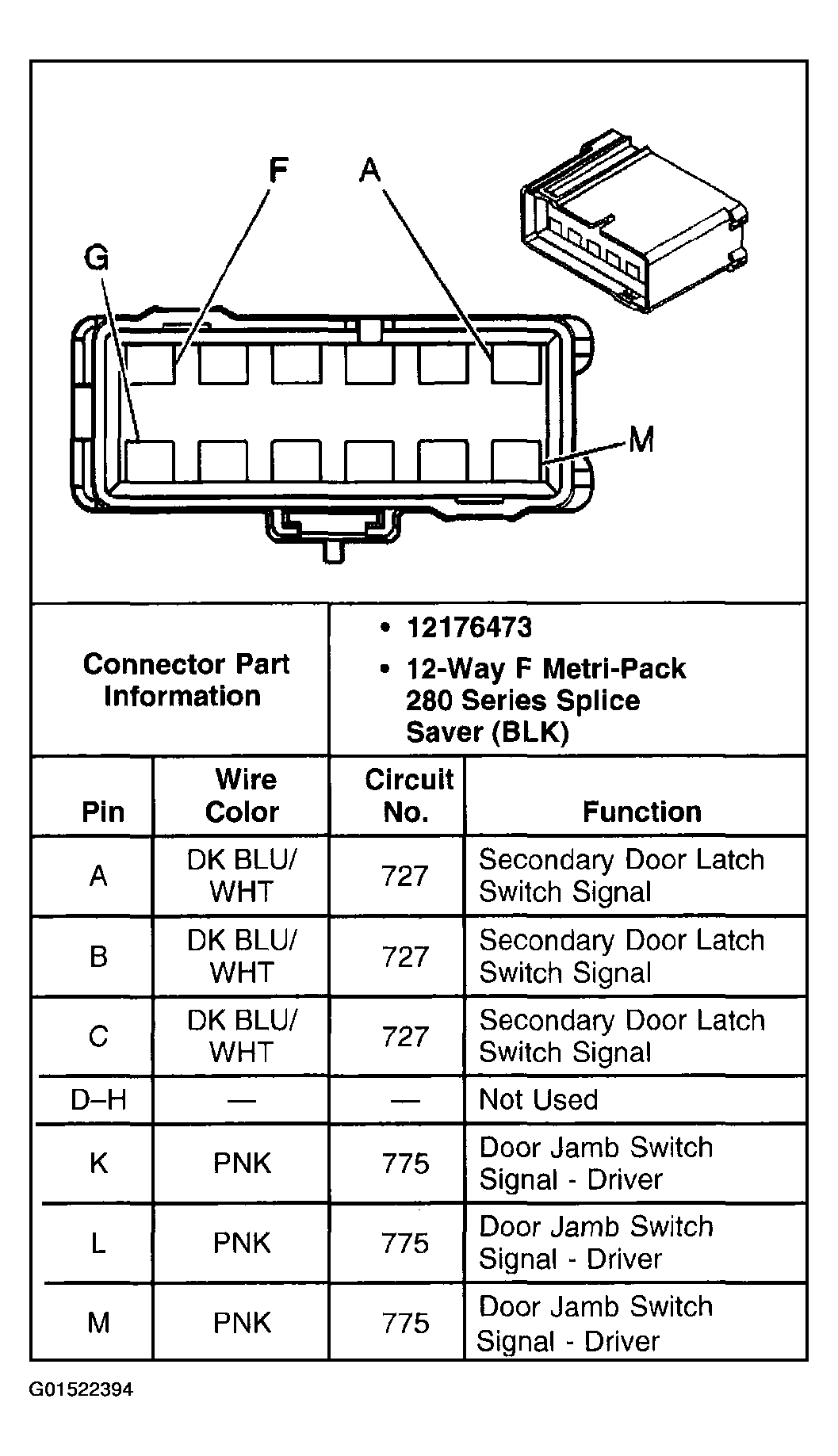

Fig 3: Auxiliary Power Outlet Front Connector

Courtesy of GENERAL MOTORS CORP.

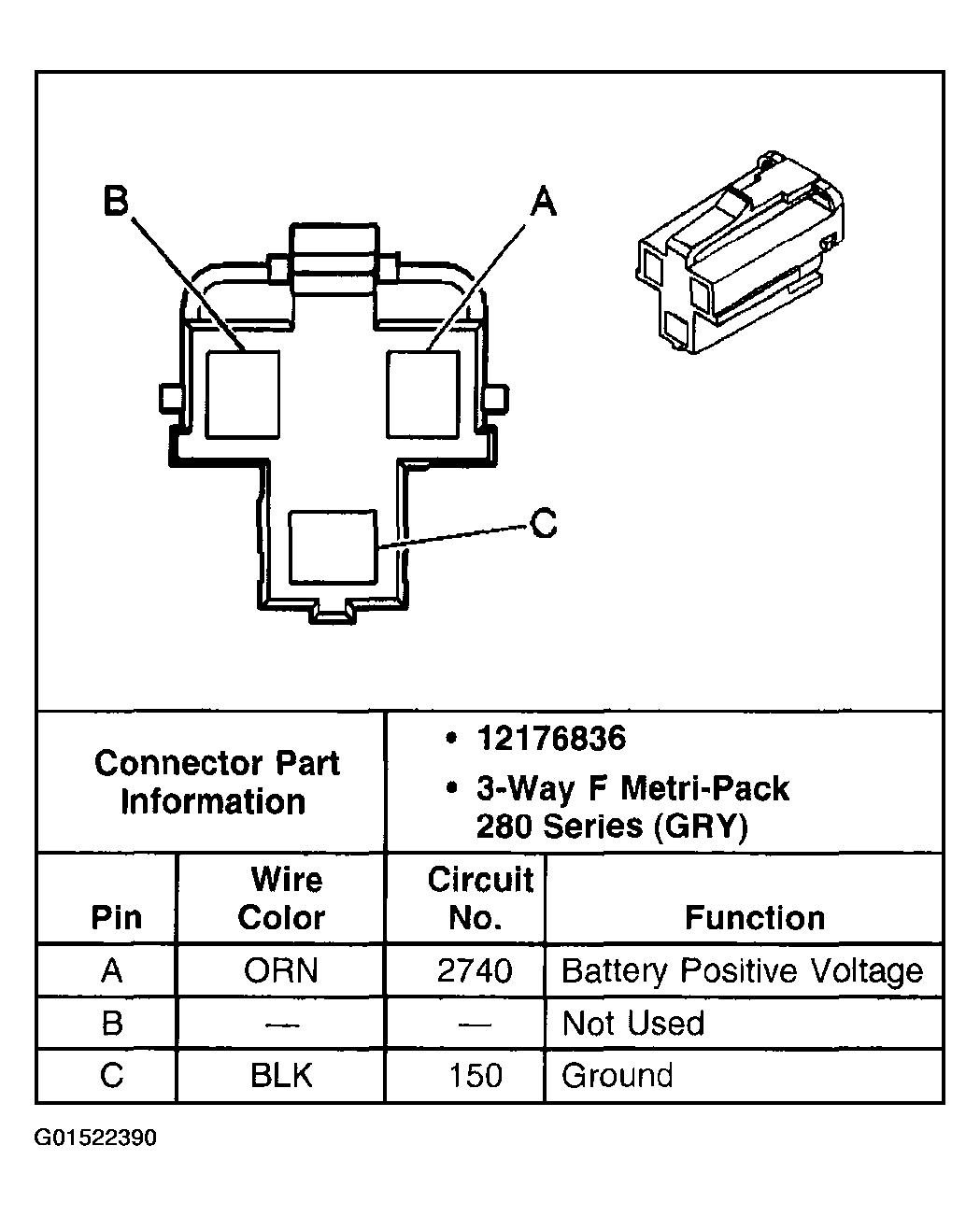

Fig 4: Identifying Auxiliary Power Outlet Rear Connector

Courtesy of GENERAL MOTORS CORP.

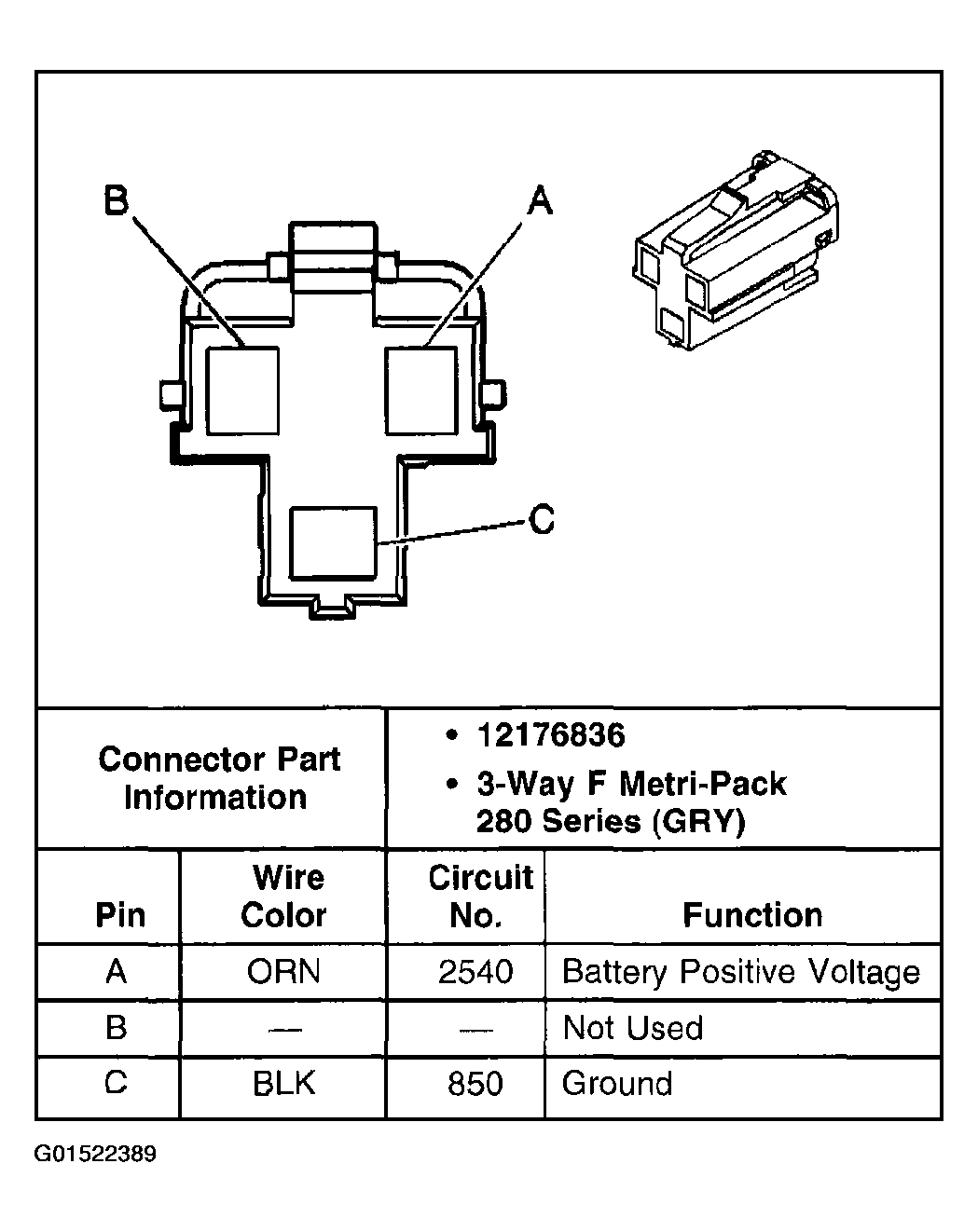

Fig 5: Identifying Cigar Lighter Connector

Courtesy of GENERAL MOTORS CORP.

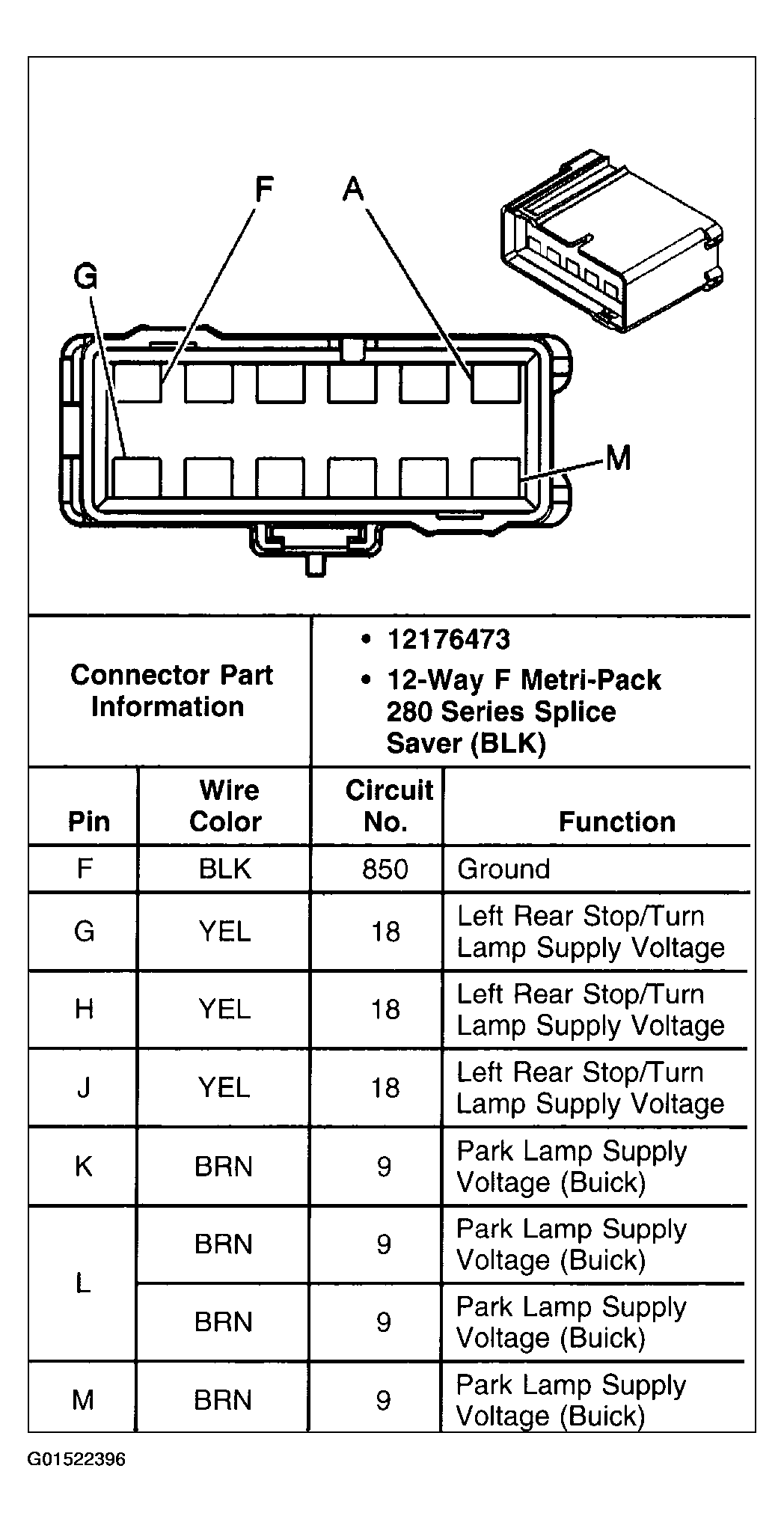

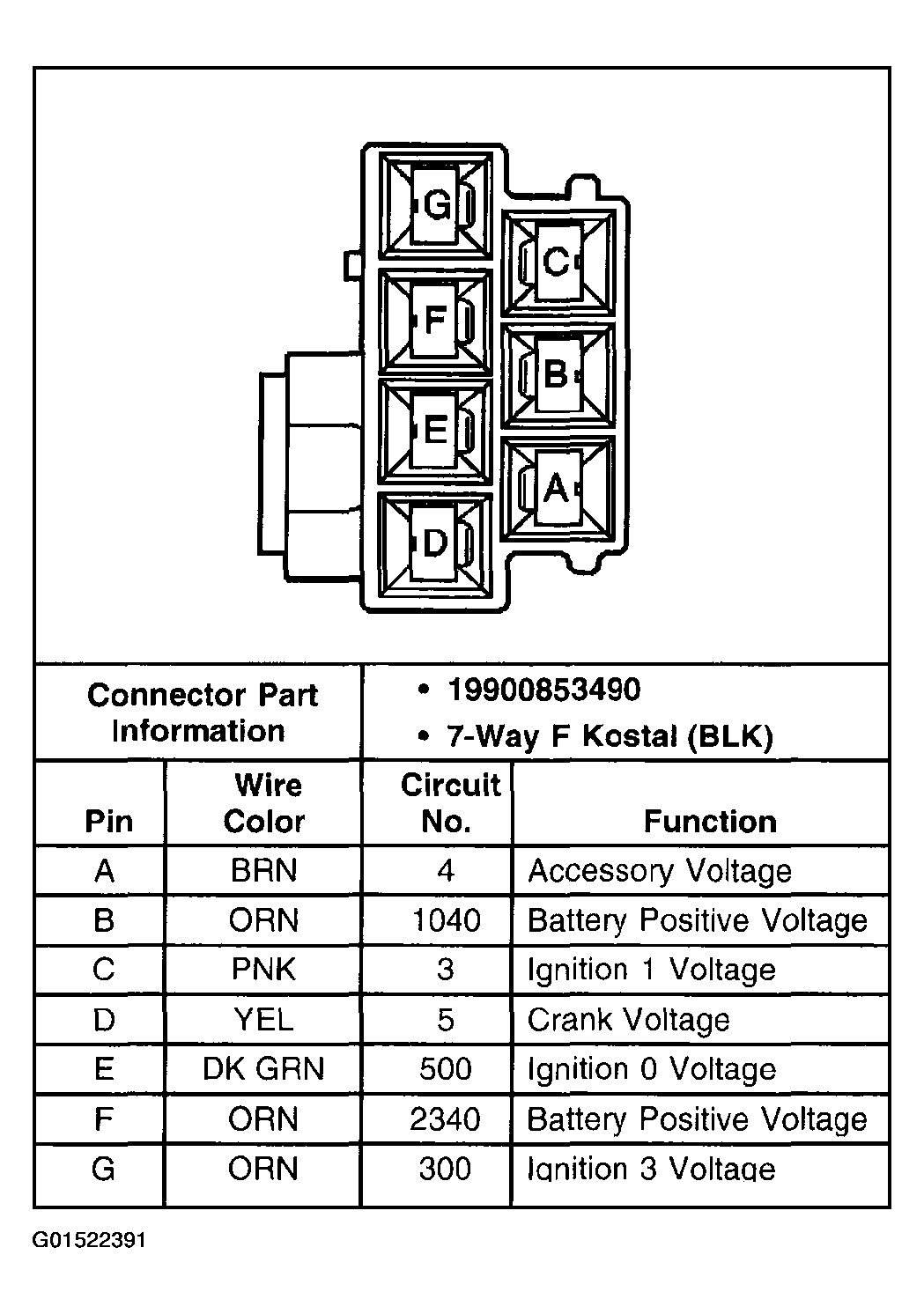

Fig 6: Identifying Ignition Switch Connector

Courtesy of GENERAL MOTORS CORP.

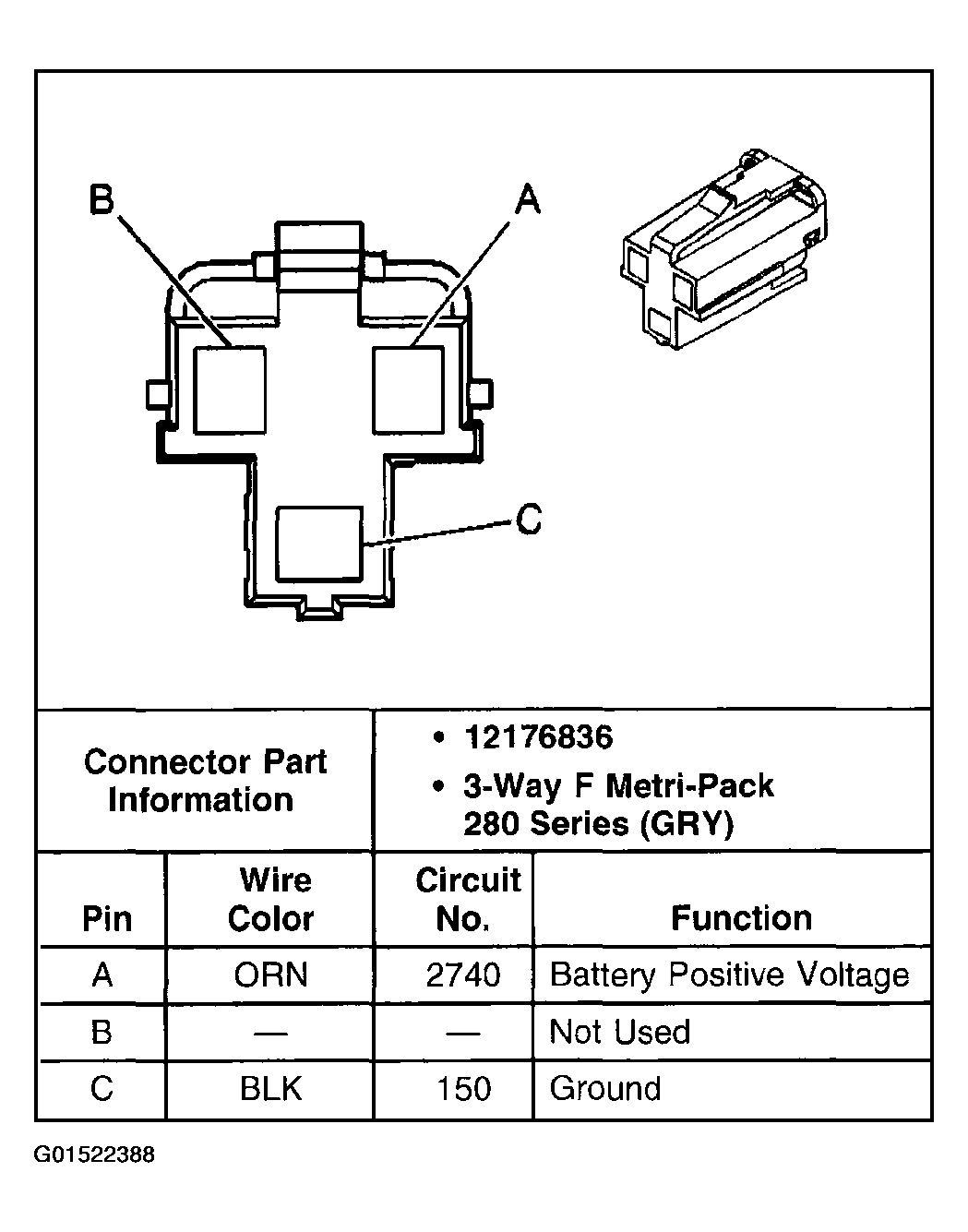

Fig 7: Identifying SP215 Connector

Courtesy of GENERAL MOTORS CORP.

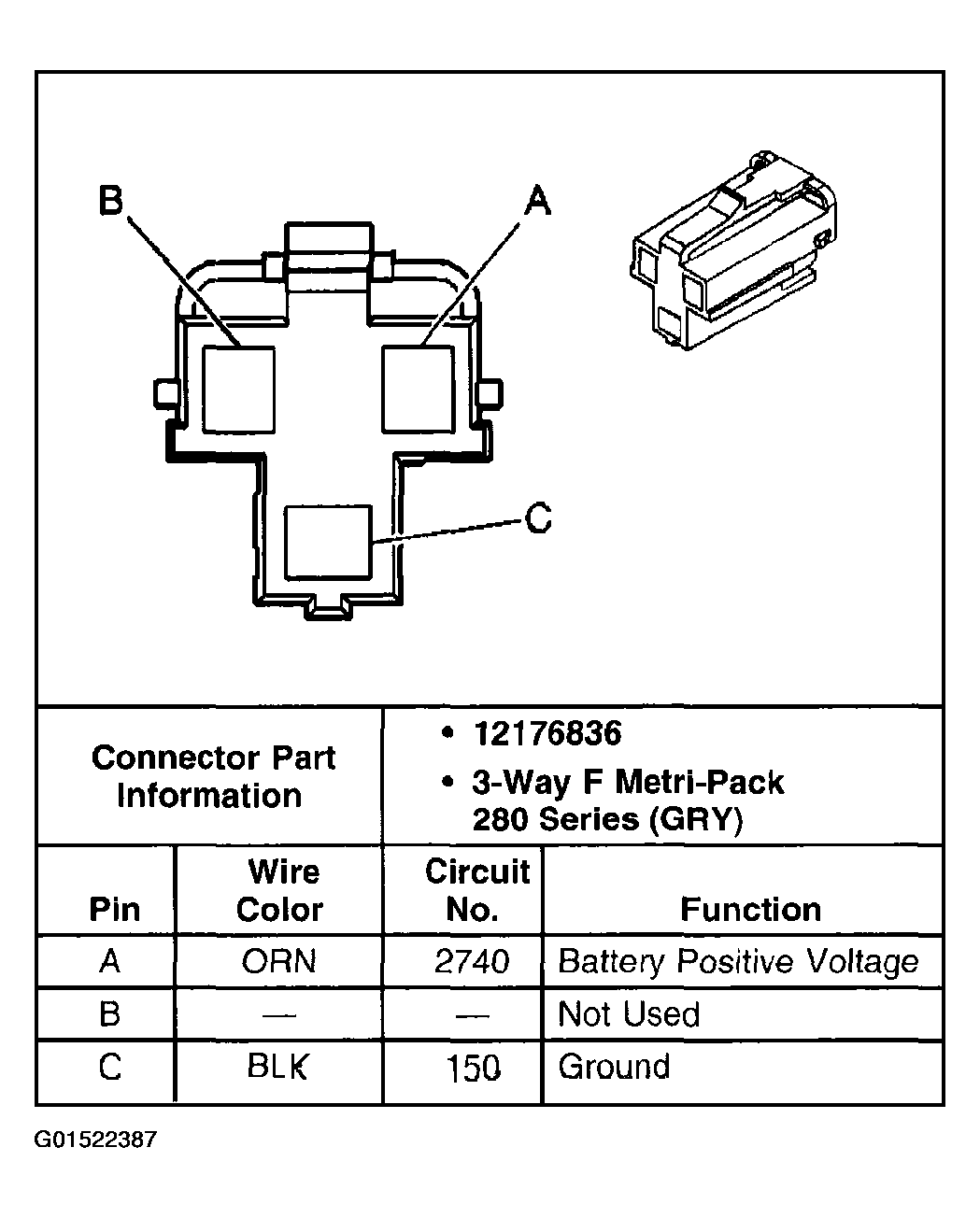

Fig 8: Identifying SP250 Connector

Courtesy of GENERAL MOTORS CORP.

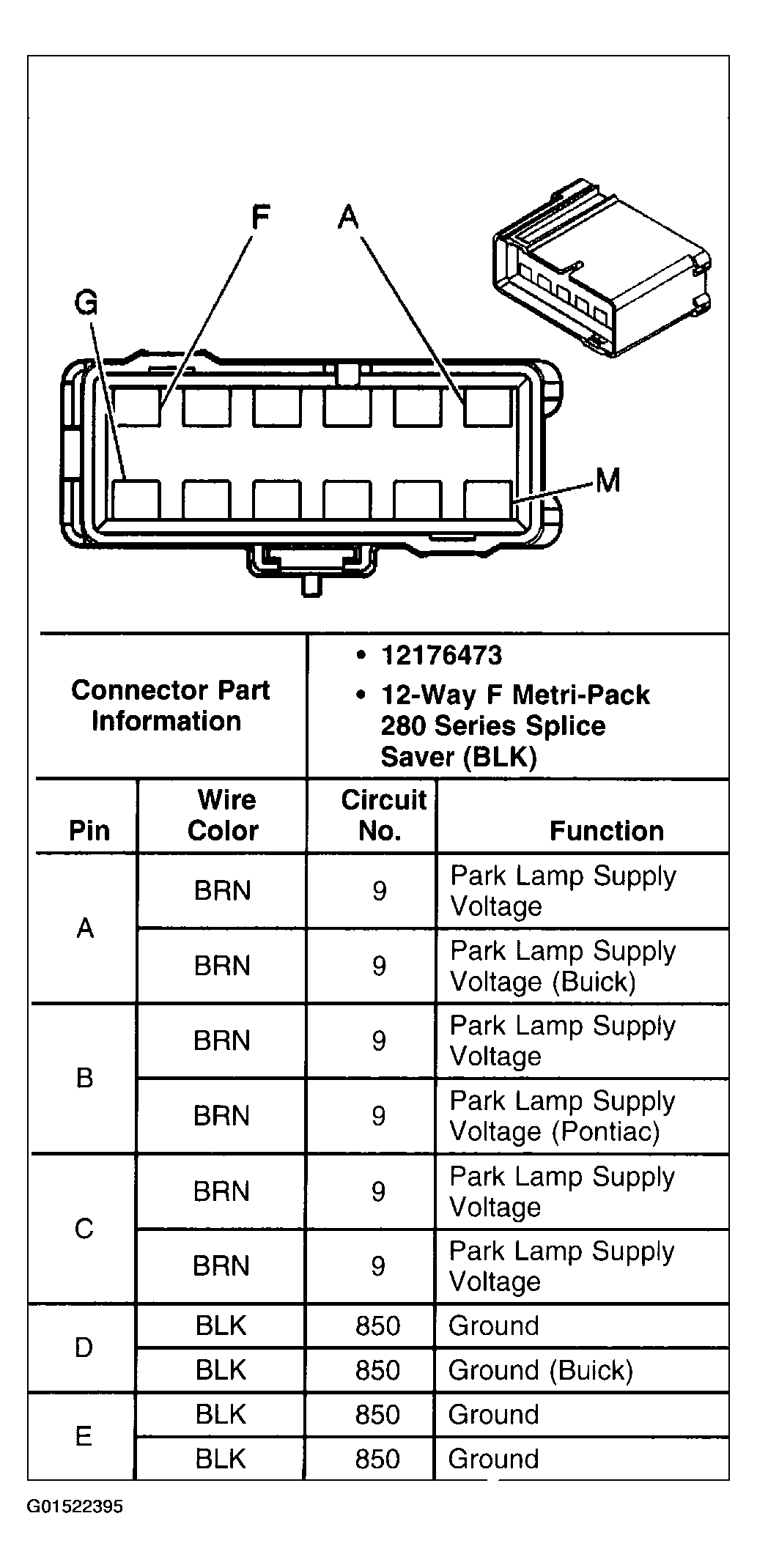

Fig 9: Identifying SP315 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying SP409 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying SP409 Connector

Courtesy of GENERAL MOTORS CORP.
