Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover (s). Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT  .
  2. Remove the valve rocker arm bolt (s).
  3. Remove the valve rocker arm (s).

    Important:  Place the valve train parts in a rack in order to ensure that they are installed in the same location from which they were removed. Intake pushrods are yellow and measure 144.18 mm (5.68 in) long. Exhaust pushrods are green and measure 152.51 mm (6.0 in) long.

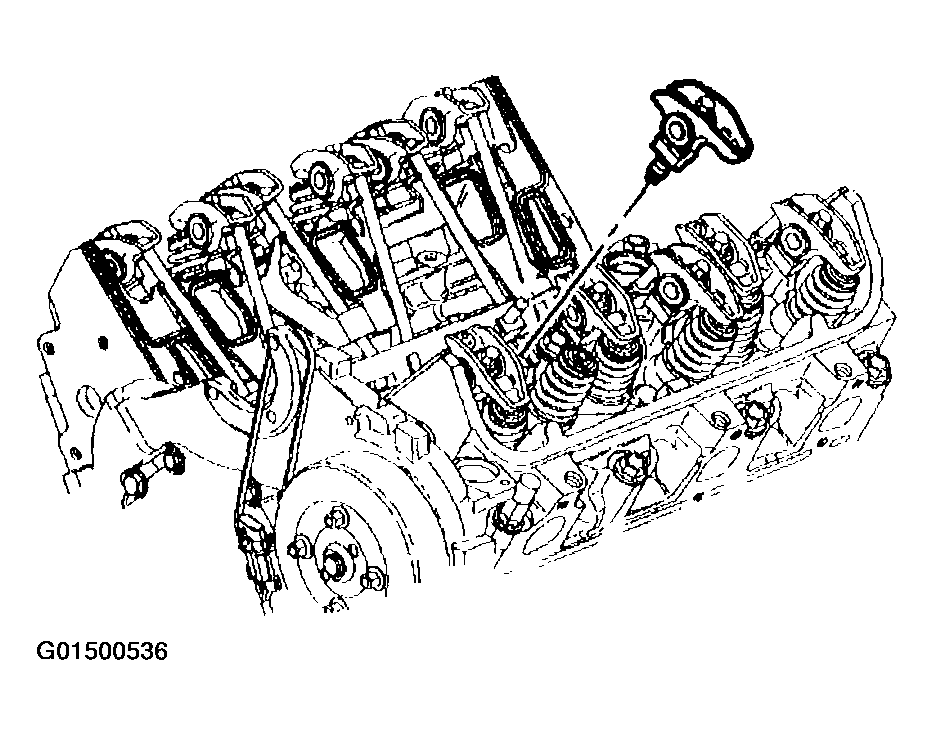

    Fig 1: Removing Valve Rocker Arm
    G01500536Courtesy of GENERAL MOTORS CORP.

    Important:  Use care when removing the pushrods. Ensure that they do not fall down into the lifter valley.

  4. Remove the pushrod (s).
  5. Clean and inspect the valve train components. Refer to VALVE ROCKER ARM AND PUSH RODS CLEANING AND INSPECTION  in the Engine Unit Repair Manual.
