Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pushrod (s) and the valve rocker arm (s). Refer to VALVE ROCKER ARM AND PUSH ROD INSTALLATION .
  2. Install the valve rocker arm cover (s). Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  .

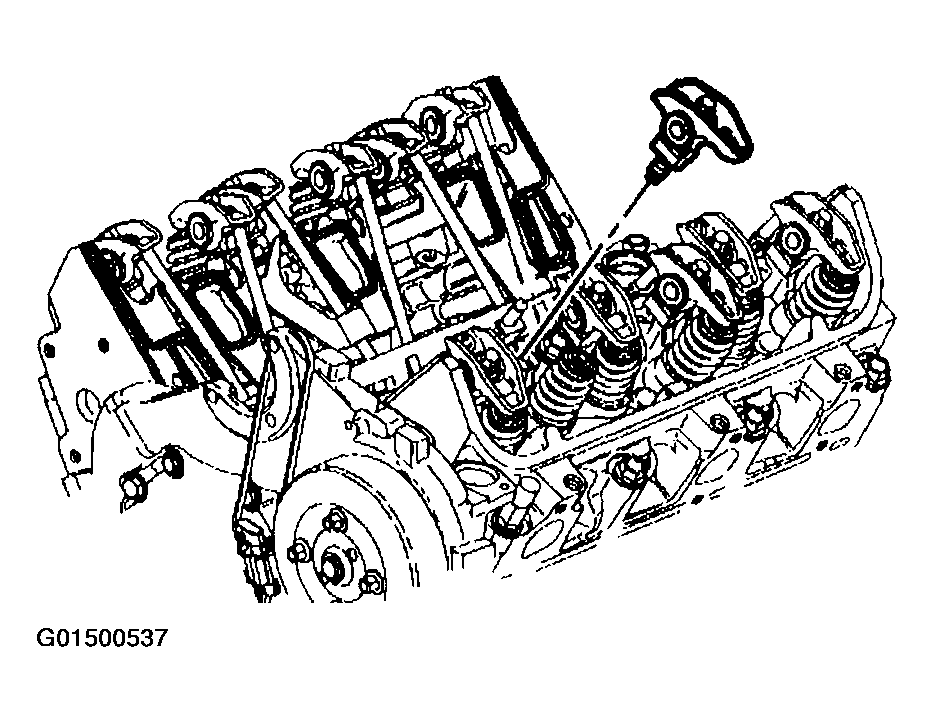

    Fig 1: Installing Valve Rocker Arm
    G01500537Courtesy of GENERAL MOTORS CORP.
