Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N 12346286 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install valve rocker arm cover.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the vacuum hose to the grommet in the engine right side valve rocker arm cover.

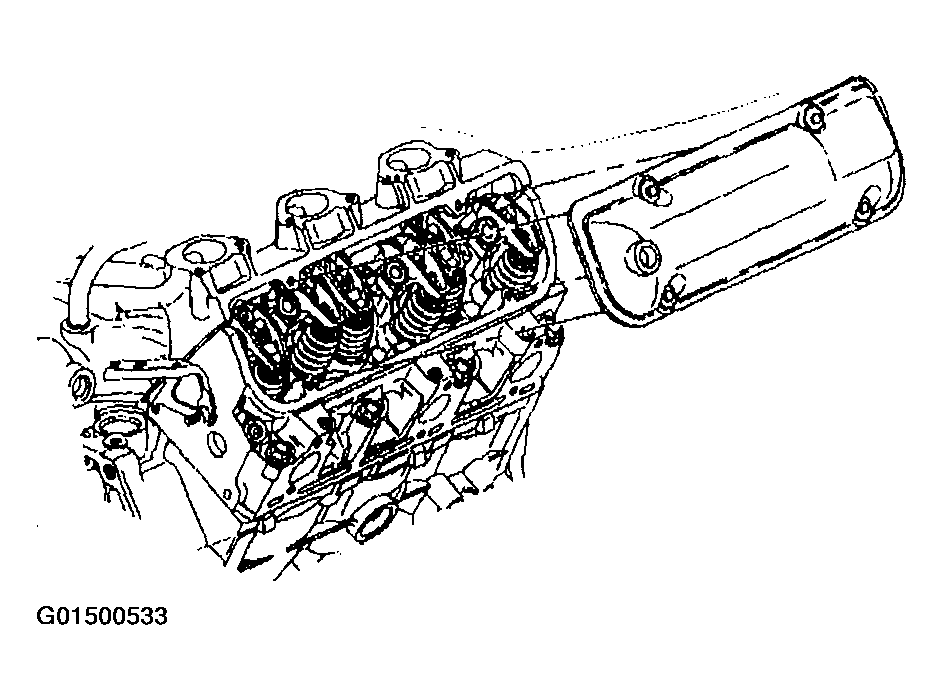

    Fig 1: Installing Valve Rocker Arm Right Cover
    G01500533Courtesy of GENERAL MOTORS CORP.
  6. Install the ignition coil bracket with coils.
  7. Install the EVAP canister purge solenoid valve.

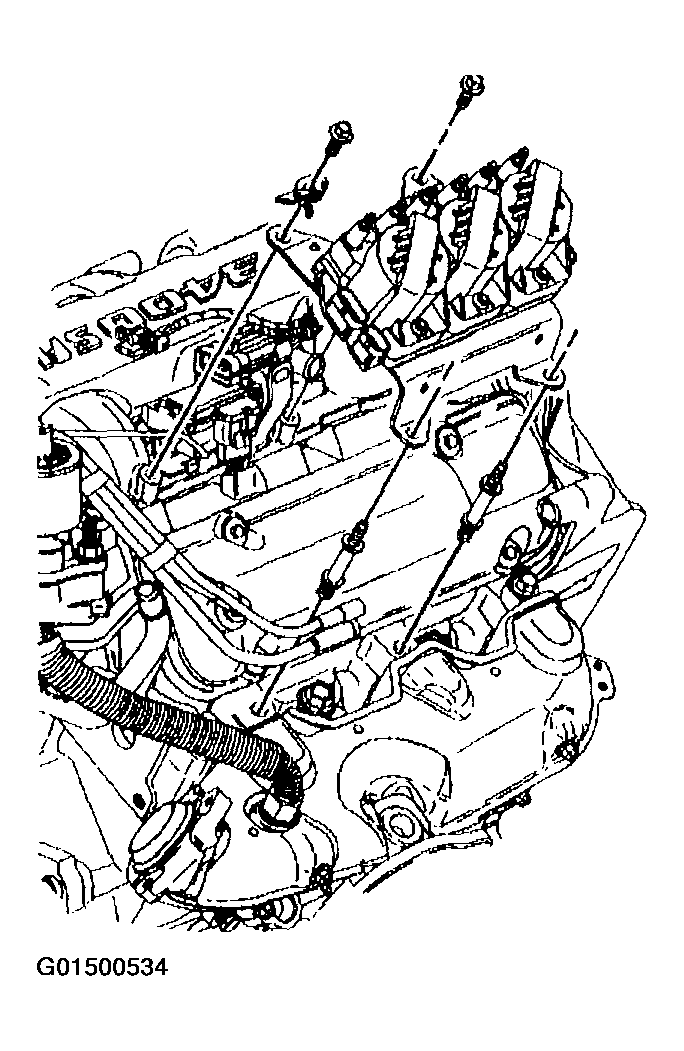

    Fig 2: Installing Ignition Coil Bracket With Coils - Valve Rocker Arm Right Cover Replacement
    G01500534Courtesy of GENERAL MOTORS CORP.
  8. Connect the vacuum hoses from the EVAP canister purge solenoid valve.
  9. Connect the engine right side spark plug wires.
  10. Install the generator bracket.
  11. Install the generator.
  12. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .

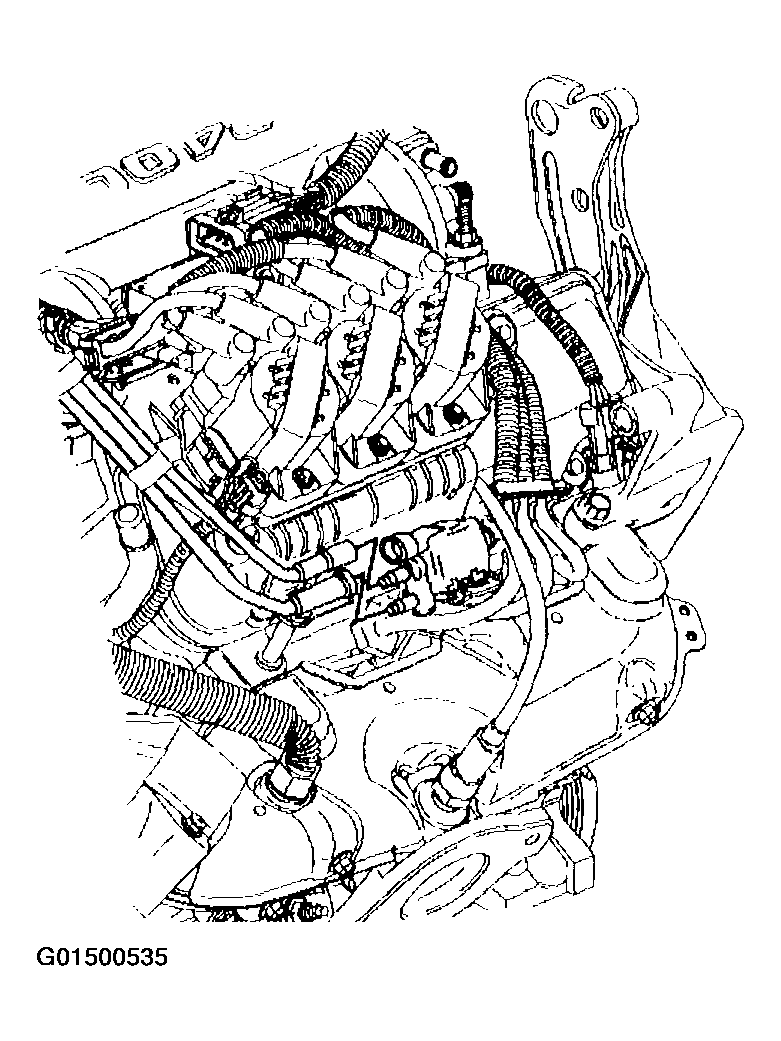

    Fig 3: Connecting Vacuum Hoses From EVAP Canister Purge Solenoid Valve
    G01500535Courtesy of GENERAL MOTORS CORP.
