Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .

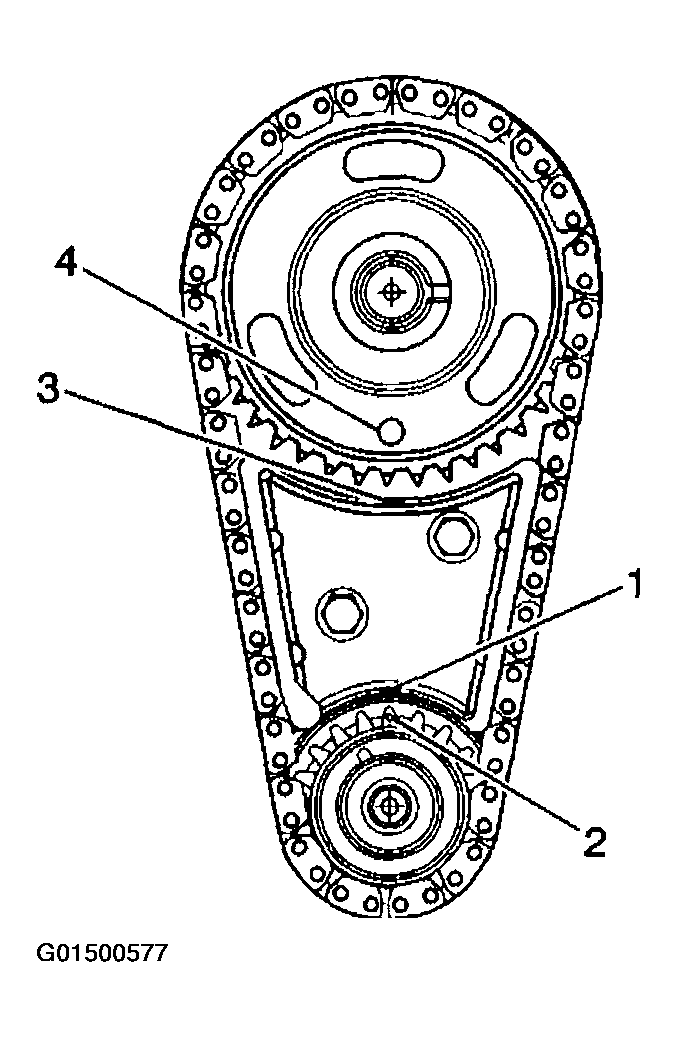

Align the crankshaft timing mark (2) to the timing mark on the bottom of the timing chain dampener (1).
Align the timing mark on the camshaft gear (4) with the timing mark on top of the timing chain dampener (3).

Fig 1: Aligning Crankshaft And Camshaft Timing Mark With Timing Chain Dampener Marks For Removal
Courtesy of GENERAL MOTORS CORP.

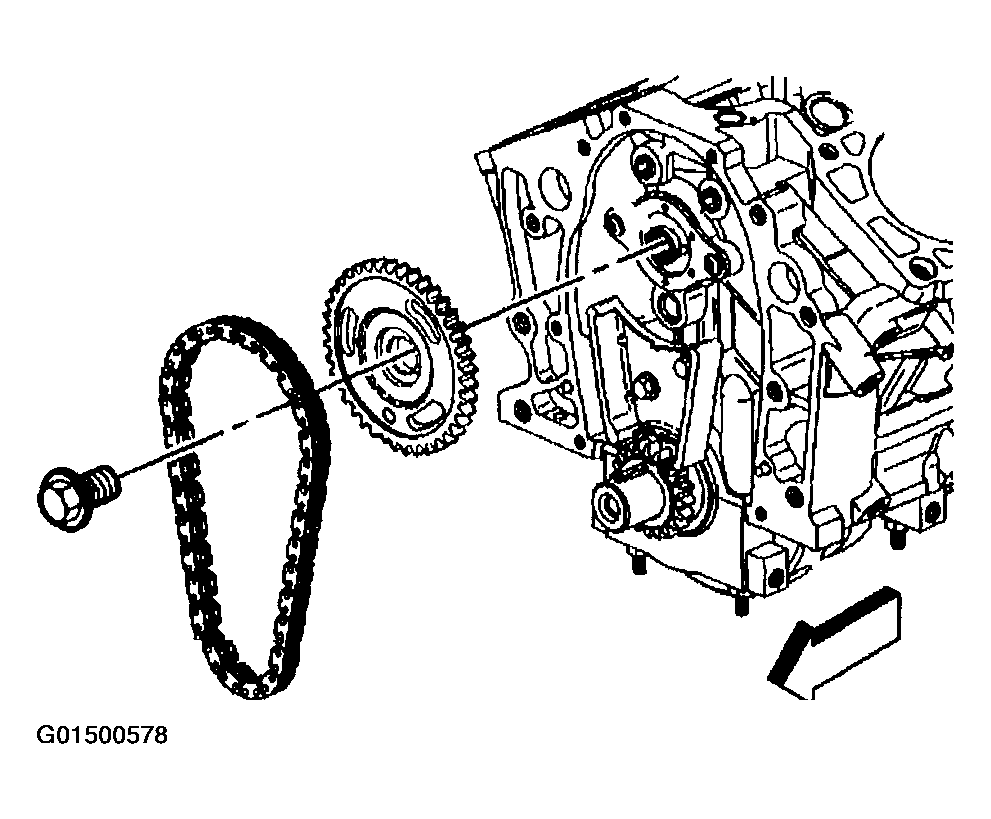

Remove the camshaft sprocket bolt.
Remove the camshaft sprocket and timing chain.

Fig 2: Removing Camshaft Sprocket And Timing Chain
Courtesy of GENERAL MOTORS CORP.

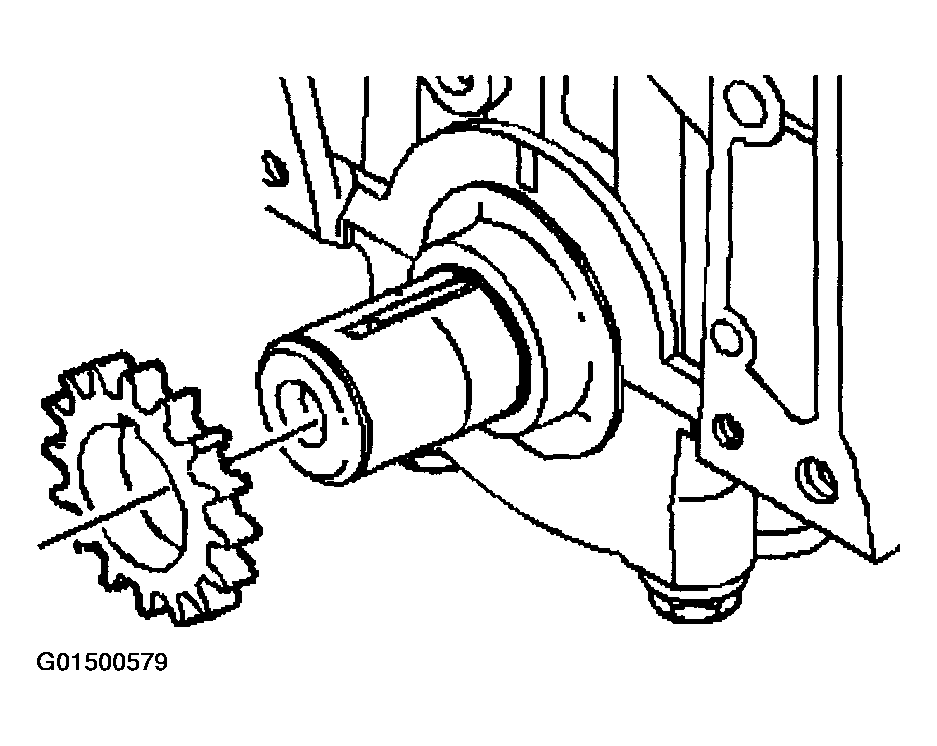

Remove the crankshaft sprocket.

Fig 3: Removing Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.

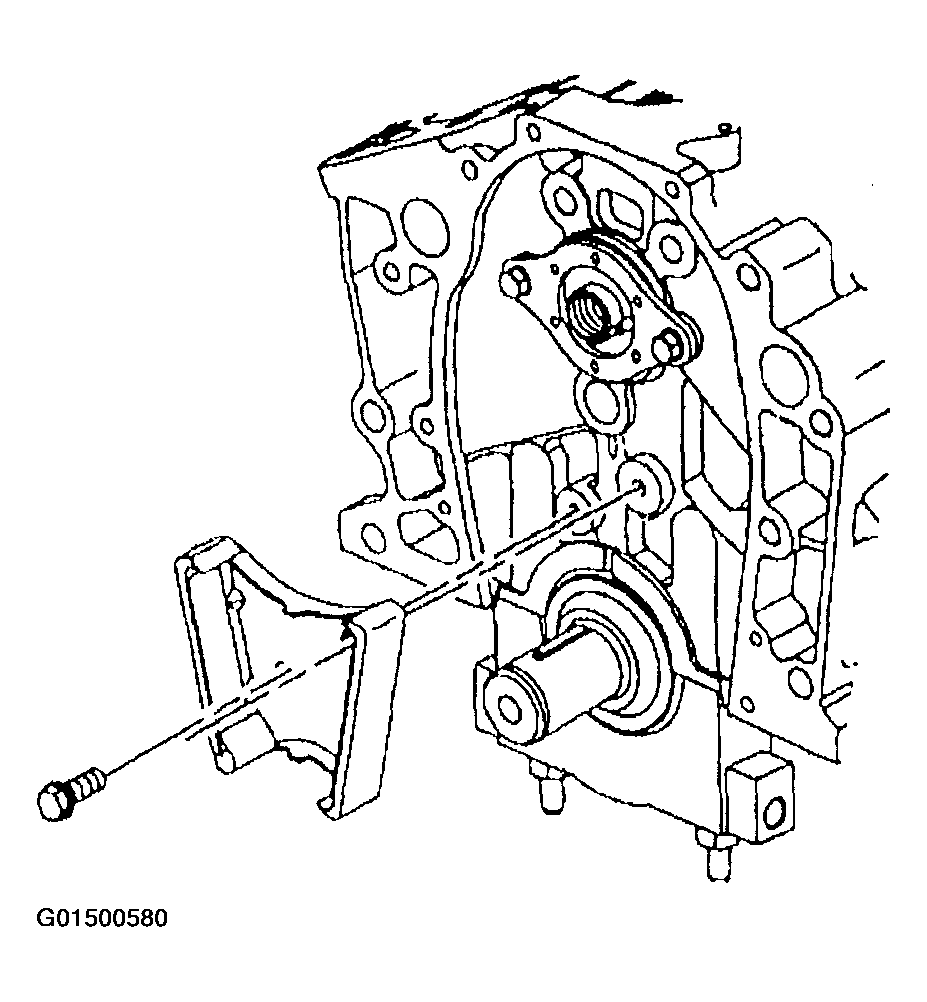

Remove the timing chain dampener bolts.
Remove the timing chain dampener.
Clean and inspect the timing chain and gears. Refer to TIMING CHAIN AND SPROCKETS CLEANING AND INSPECTION in the Engine Unit Repair Manual.

Fig 4: Removing Timing Chain Dampener
Courtesy of GENERAL MOTORS CORP.
