Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum hose from positive crankcase ventilation valve (2).
  2. Remove the positive crankcase ventilation valve.

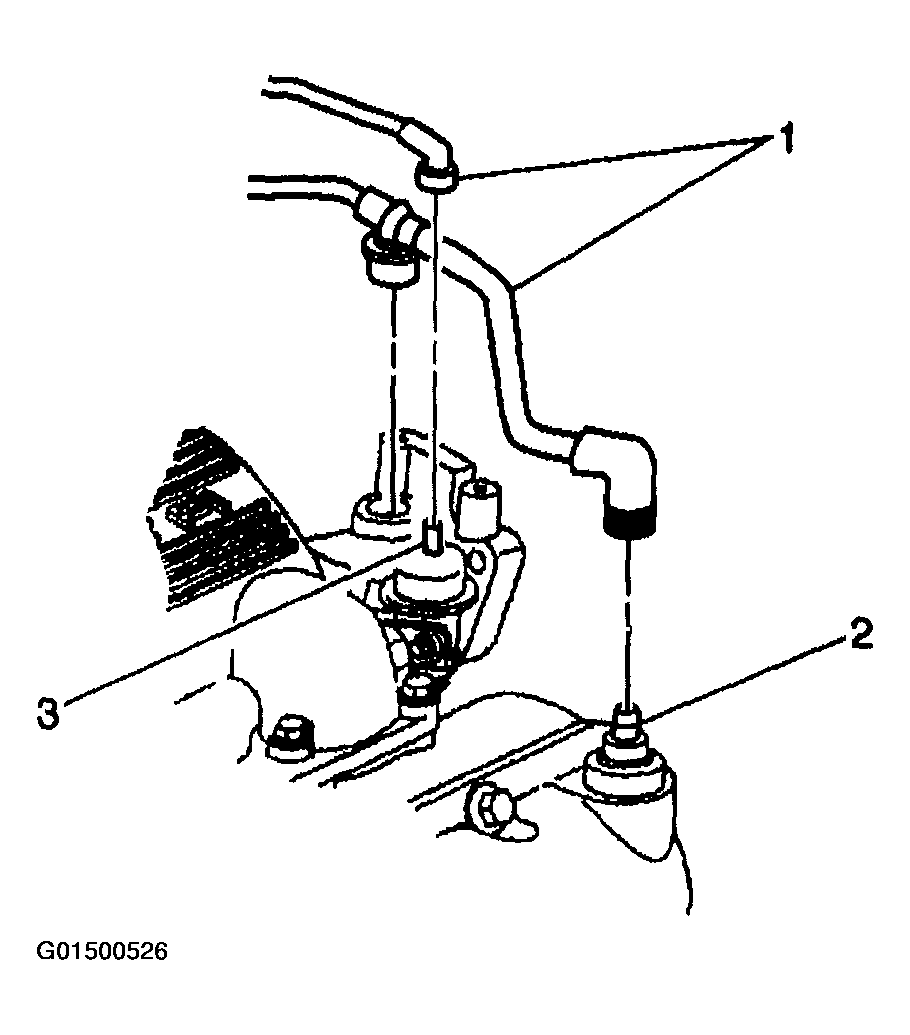

    Fig 1: Removing Positive Crankcase Ventilation Valve
    G01500526Courtesy of GENERAL MOTORS CORP.
