Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the positive crankcase ventilation valve (2).
  2. Connect the vacuum hose to positive crankcase ventilation valve.

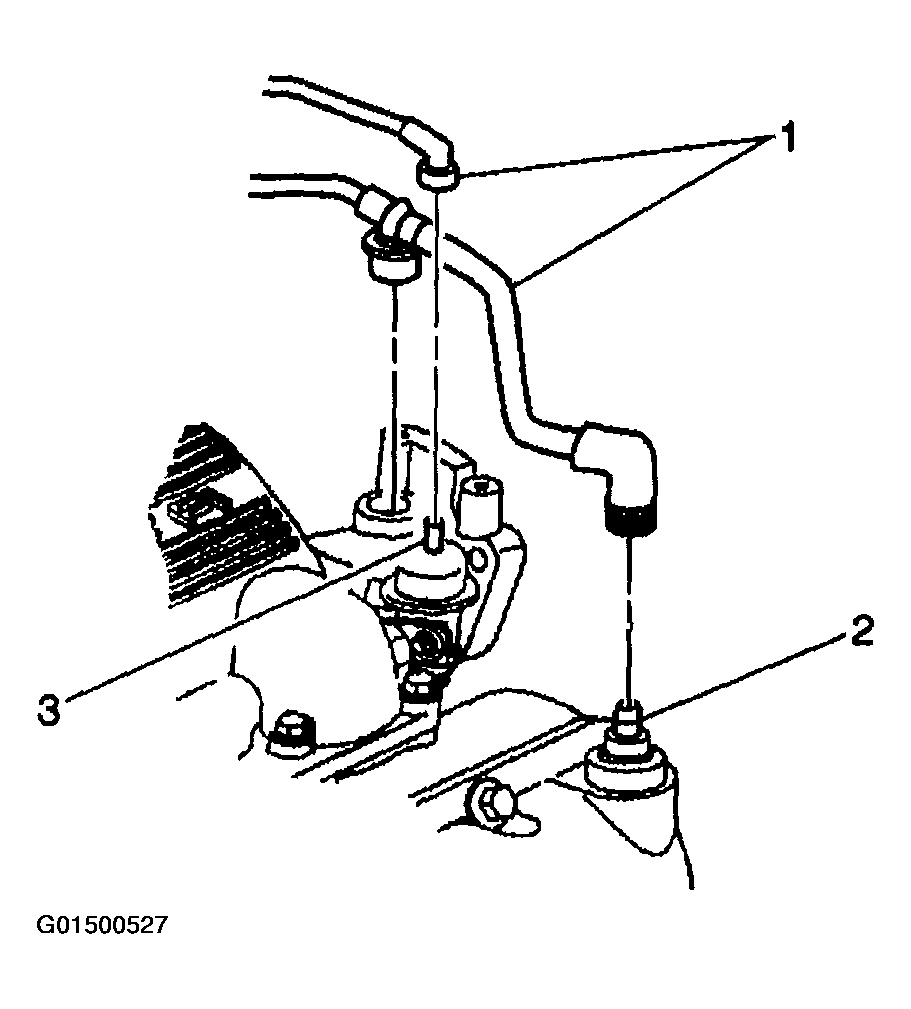

    Fig 1: Installing Positive Crankcase Ventilation Valve
    G01500527Courtesy of GENERAL MOTORS CORP.
