Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator tube bolt and tube.

    If you are unable to remove the oil level indicator tube, perform the following steps:

    1. 2.1. Apply penetrating oil to the bottom of the oil level indicator tube.
    2. 2.2. Move the oil level indicator tube back and forth in order to loosen the oil level indicator tube.

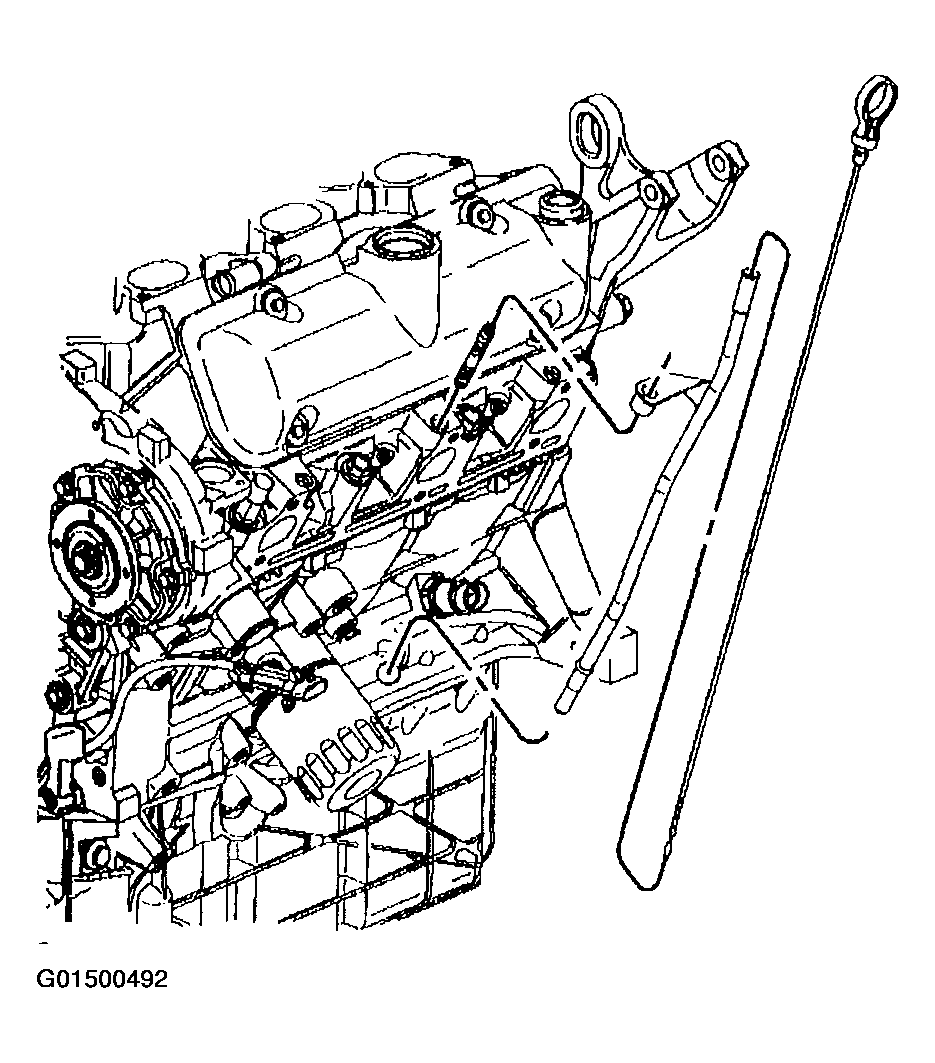

    Fig 1: Removing Oil Level Indicator And Tube
    G01500492Courtesy of GENERAL MOTORS CORP.
