Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil level indicator tube.
  2. Apply GM sealant P/N 12345739 or equivalent around the oil level indicator tube 12.7 mm (0.50 in) below the bead.
  3. Install the oil level indicator tube and bolt.

    Tighten

    Tighten bolt to 25 N.m (18 lb ft.)

  4. Install the oil level indicator.

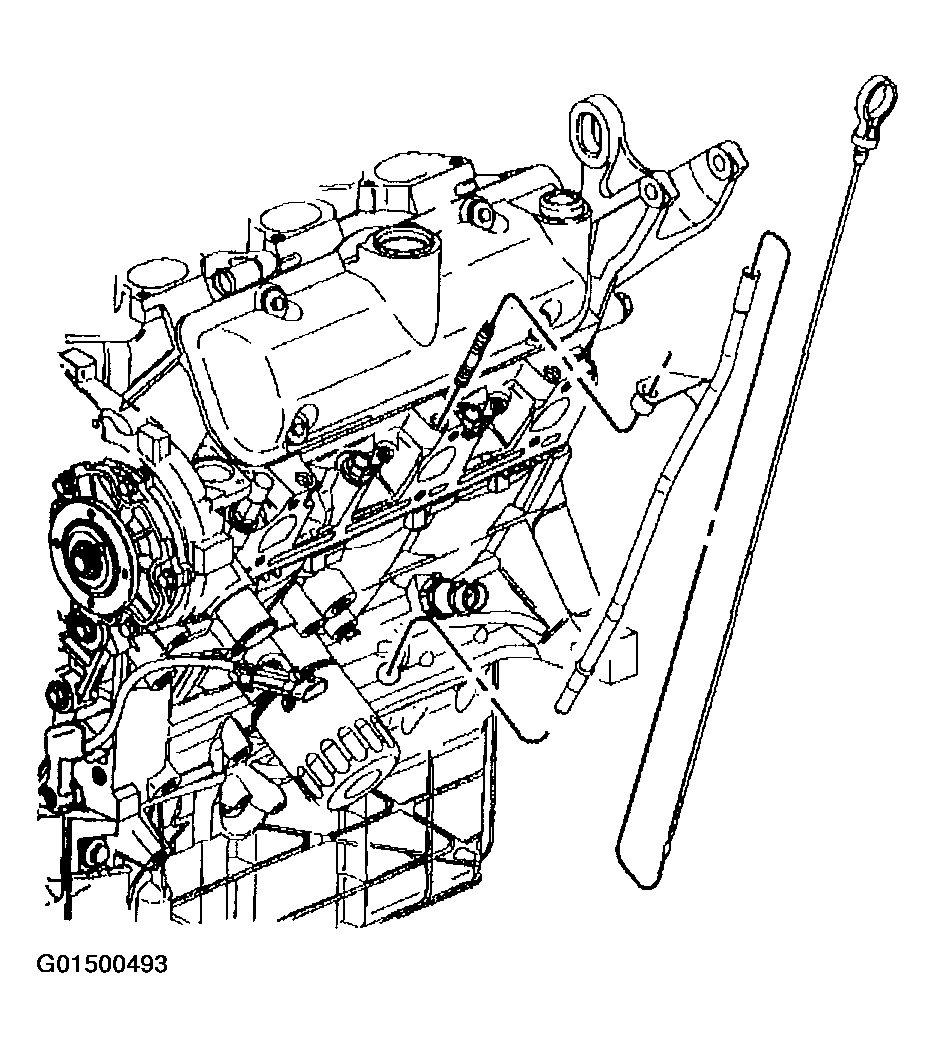

    Fig 1: Installing Oil Level Indicator And Tube
    G01500493Courtesy of GENERAL MOTORS CORP.
