Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the throttle body. Refer to THROTTLE BODY

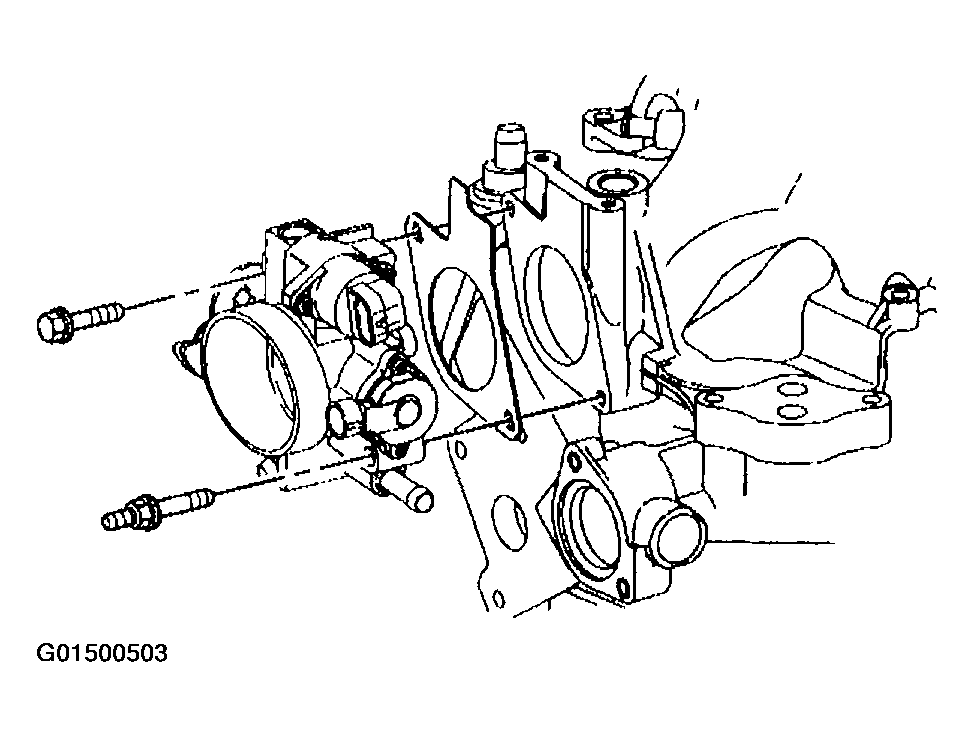

    Fig 1: Installing Throttle Body
    G01500503Courtesy of GENERAL MOTORS CORP.
  2. Install the upper intake manifold gasket.

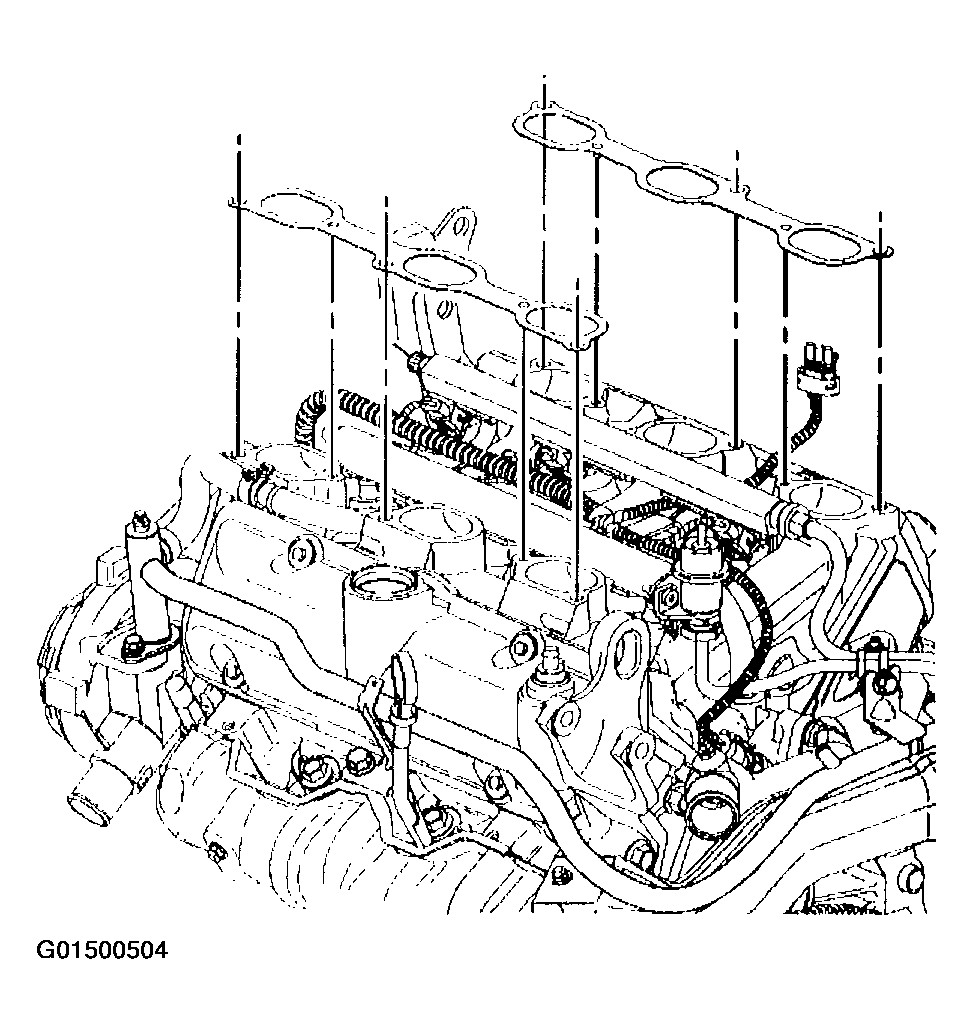

    Fig 2: Installing Upper Intake Manifold Gasket
    G01500504Courtesy of GENERAL MOTORS CORP.
  3. Install the upper intake manifold.

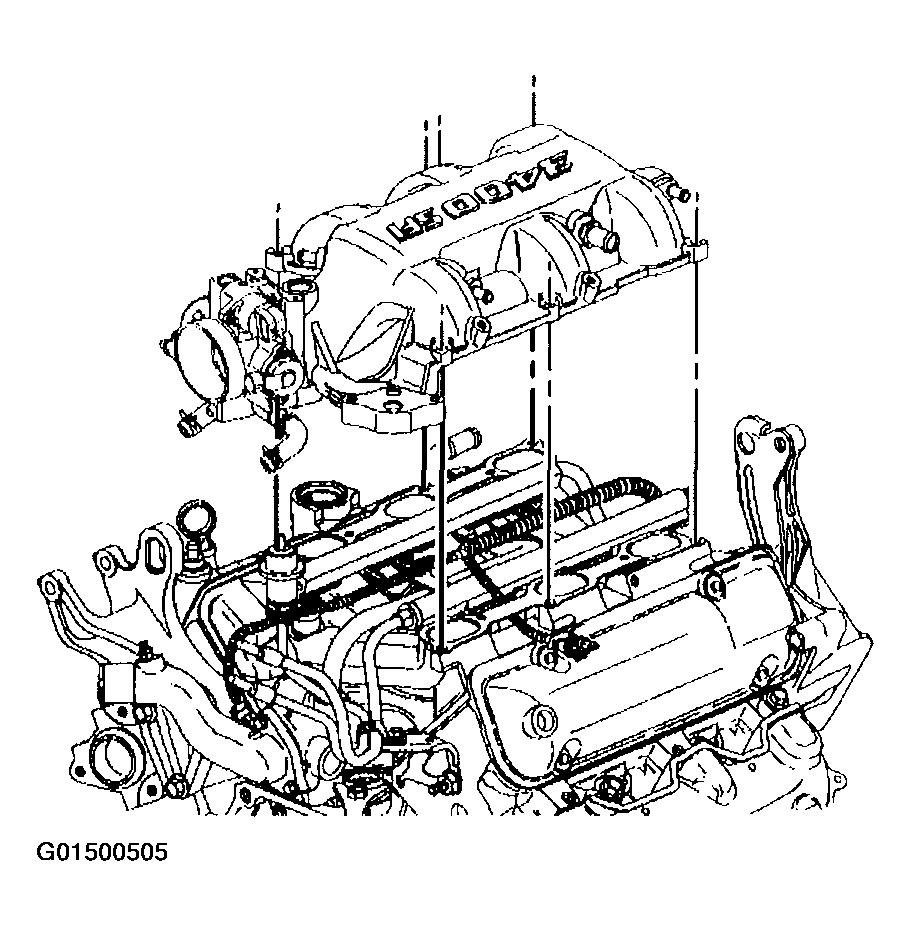

    Fig 3: Installing Upper Intake Manifold
    G01500505Courtesy of GENERAL MOTORS CORP.
  4. Install the MAP sensor and the bracket. Refer to MANIFOLD ABSOLUTE PRESSURE SENSOR .
  5. Install the upper intake manifold studs and bolts.

    Tighten

    Tighten bolts to 25 N.m (18 lb ft.)

  6. Install generator through bolt bracket.
  7. Install the EGR valve. Refer to EGR VALVE .
  8. Connect the vacuum hose connections to the upper intake manifold:
    • Heater and air conditioning vacuum source hose
    • Fuel pressure regulator
  9. Connect the vacuum brake booster hose to the upper intake manifold.

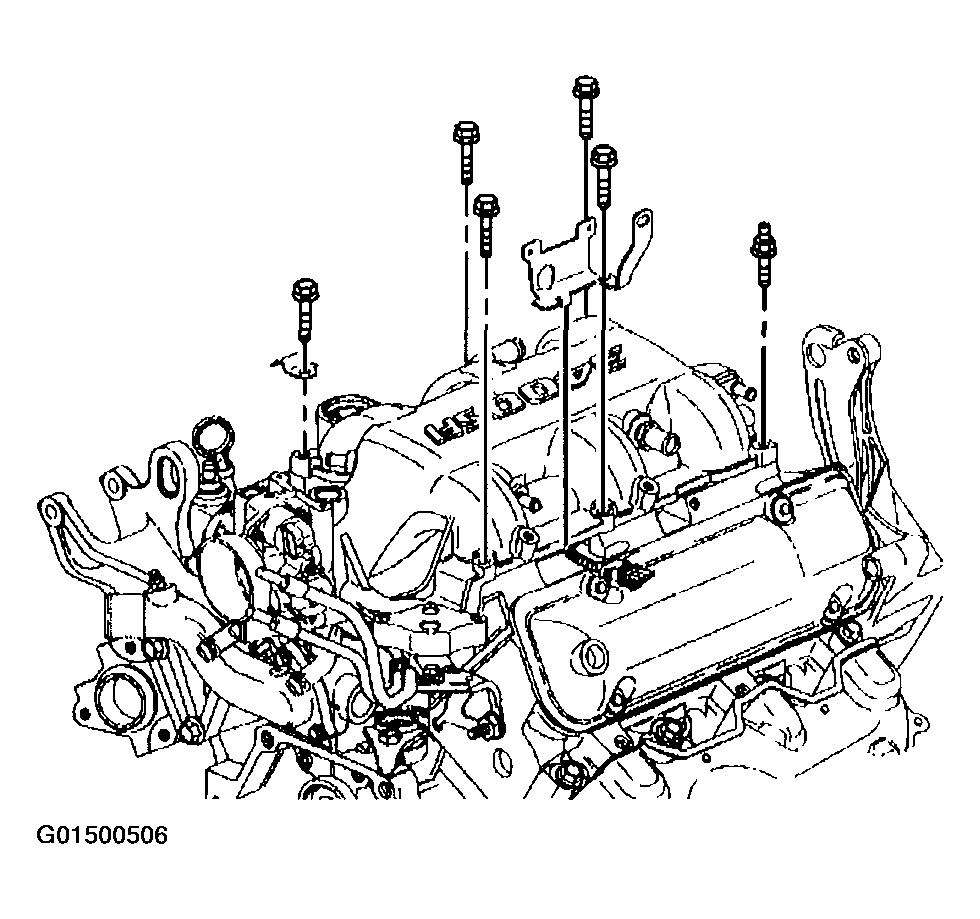

    Fig 4: Installing Upper Intake Manifold Studs And Bolts
    G01500506Courtesy of GENERAL MOTORS CORP.
  10. Install and connect the emission control vacuum harness.

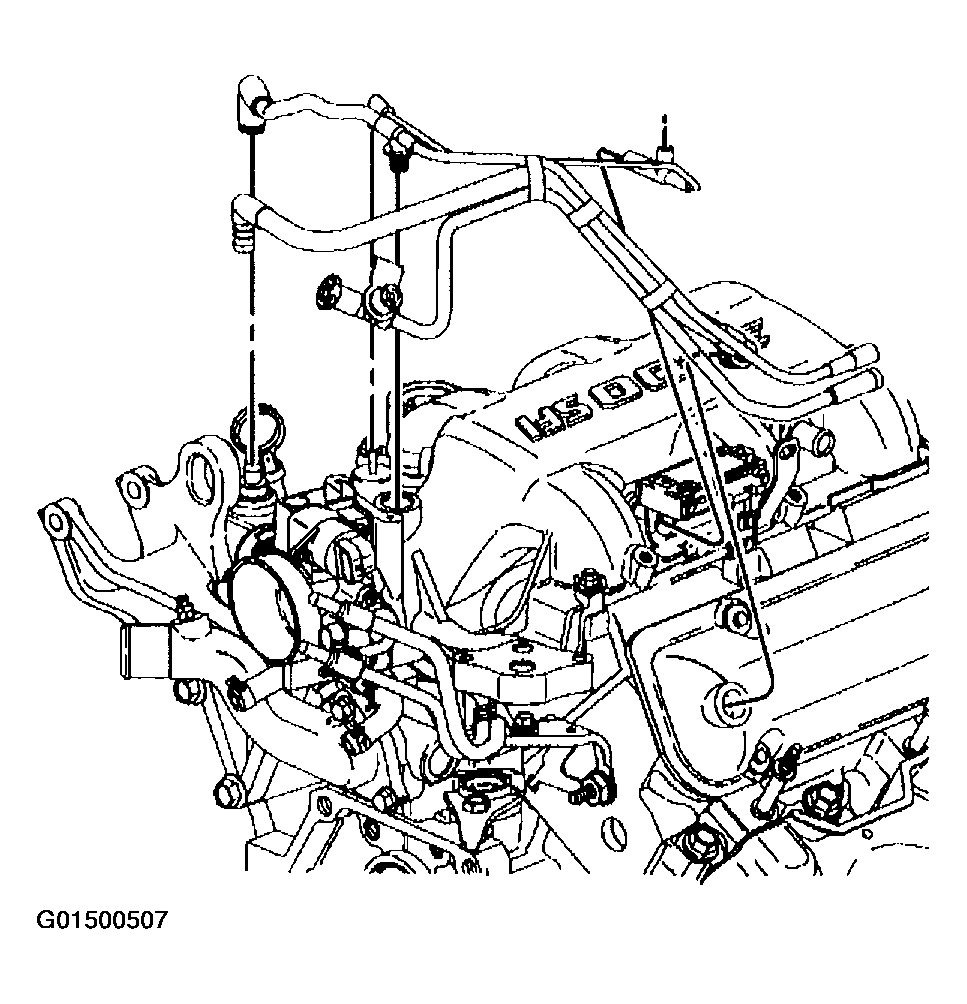

    Fig 5: Installing Emission Control Vacuum Harness
    G01500507Courtesy of GENERAL MOTORS CORP.
  11. Connect the vacuum hose to the MAP sensor and the upper intake manifold.

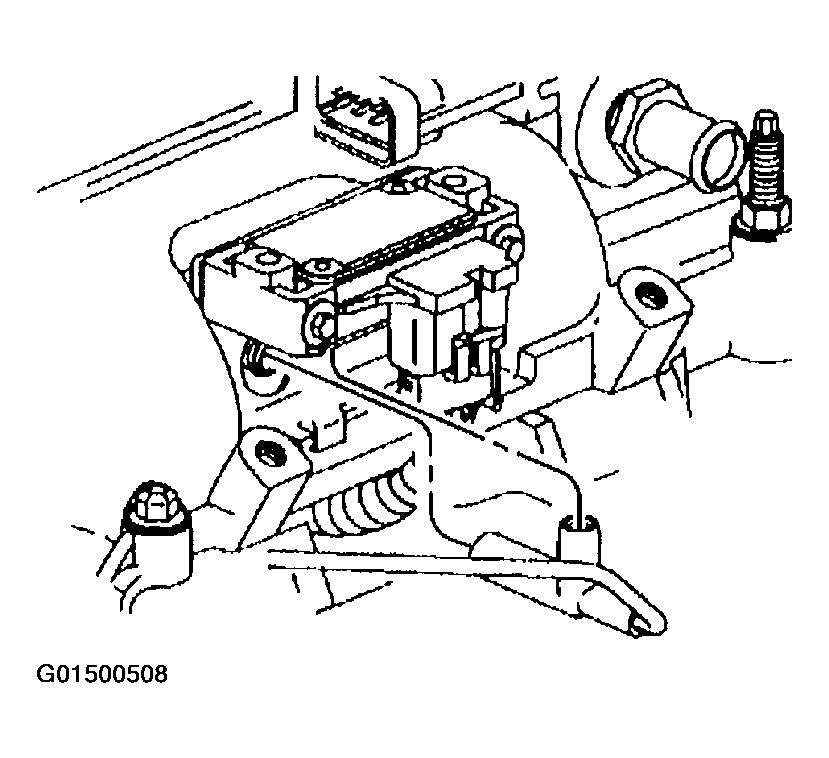

    Fig 6: Connecting Vacuum Hose To MAP Sensor And Upper Intake Manifold
    G01500508Courtesy of GENERAL MOTORS CORP.
  12. Connect the wiring harness to the MAP sensor.

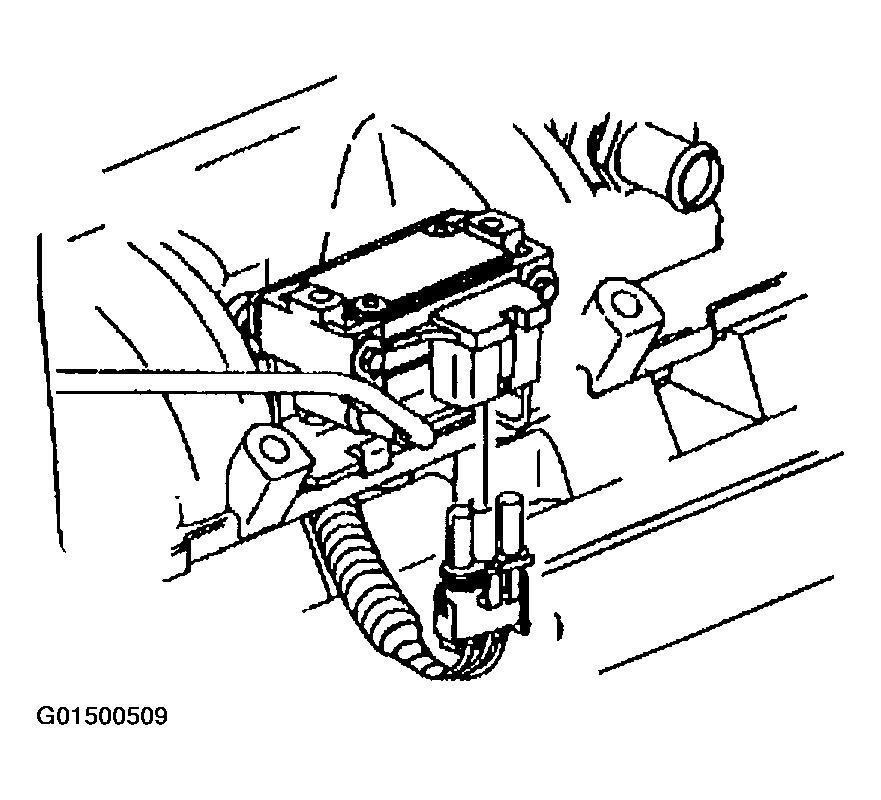

    Fig 7: Connecting Wiring Harness To MAP Sensor
    G01500509Courtesy of GENERAL MOTORS CORP.
  13. Install the ignition coil bracket with the coils.
  14. Install the EVAP canister purge solenoid valve. Refer to EVAP CANISTER PURGE SOLENOID .

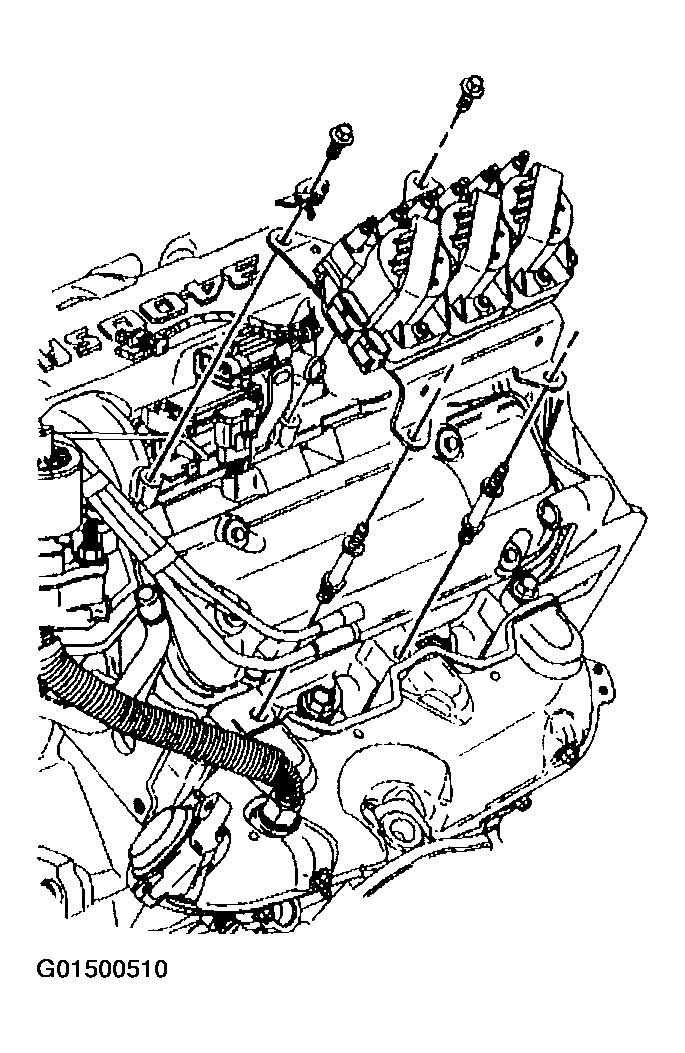

    Fig 8: Installing Ignition Coil Bracket With Coils
    G01500510Courtesy of GENERAL MOTORS CORP.
  15. Connect the vacuum hoses to the EVAP canister purge solenoid valve.
  16. Connect the throttle body heater hoses. Refer to THROTTLE BODY HEATER HOSE REPLACEMENT - INLET or THROTTLE BODY HEATER HOSE REPLACEMENT - OUTLET .
  17. Connect the engine left side spark plug wire harness attachment clip. Refer to SPARK PLUG WIRES .
  18. Connect the engine left side spark plug wires. Refer to SPARK PLUG WIRES .
  19. Connect the wiring harness connectors to the throttle body. Refer to THROTTLE BODY .
  20. Install the accelerator control and cruise control cables with bracket to the throttle body. Refer to ACCELERATOR CONTROLS CABLE .
  21. Install the throttle body air inlet duct.
  22. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .

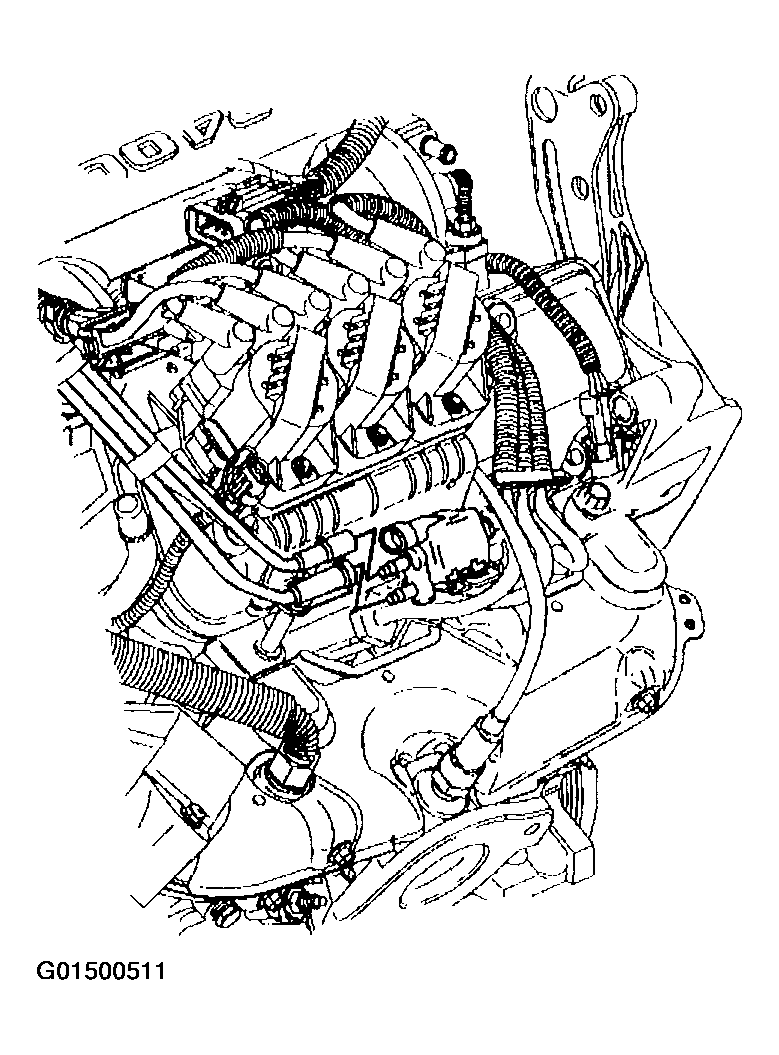

    Fig 9: Connecting Vacuum Hoses To EVAP Canister Purge Solenoid Valve
    G01500511Courtesy of GENERAL MOTORS CORP.
