Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

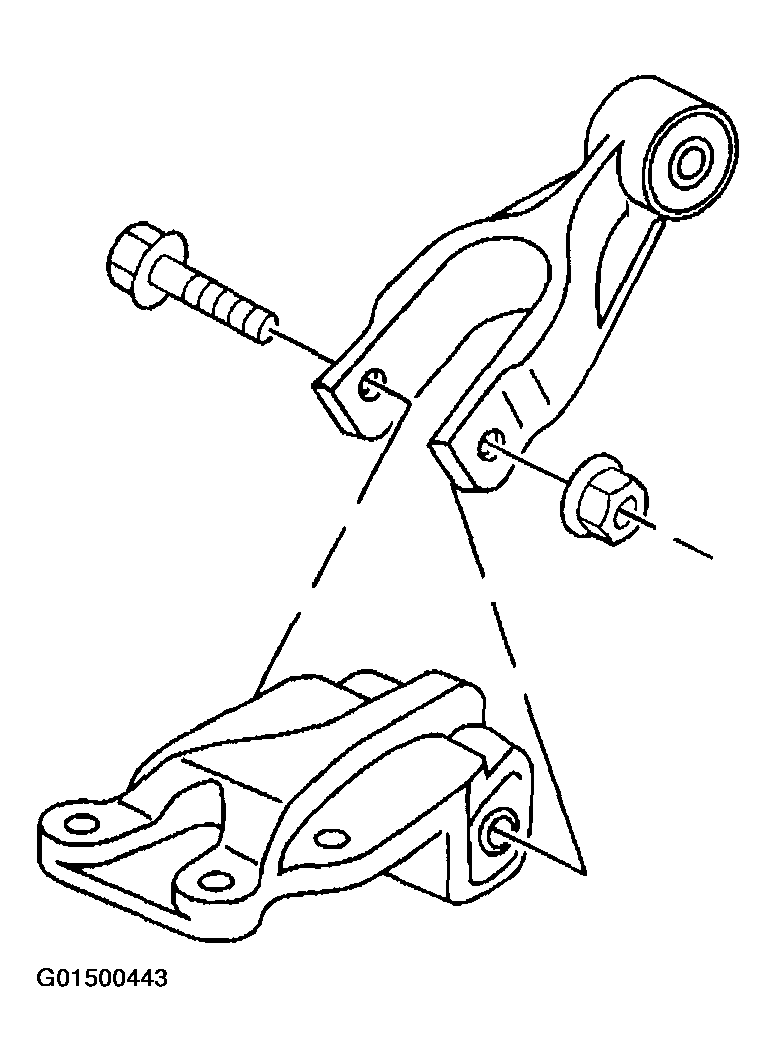

    Fig 1: Installing Engine Mount Strut - Right
    G01500443Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt and the nut to the engine mount strut at the right engine mount strut bracket on the engine.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

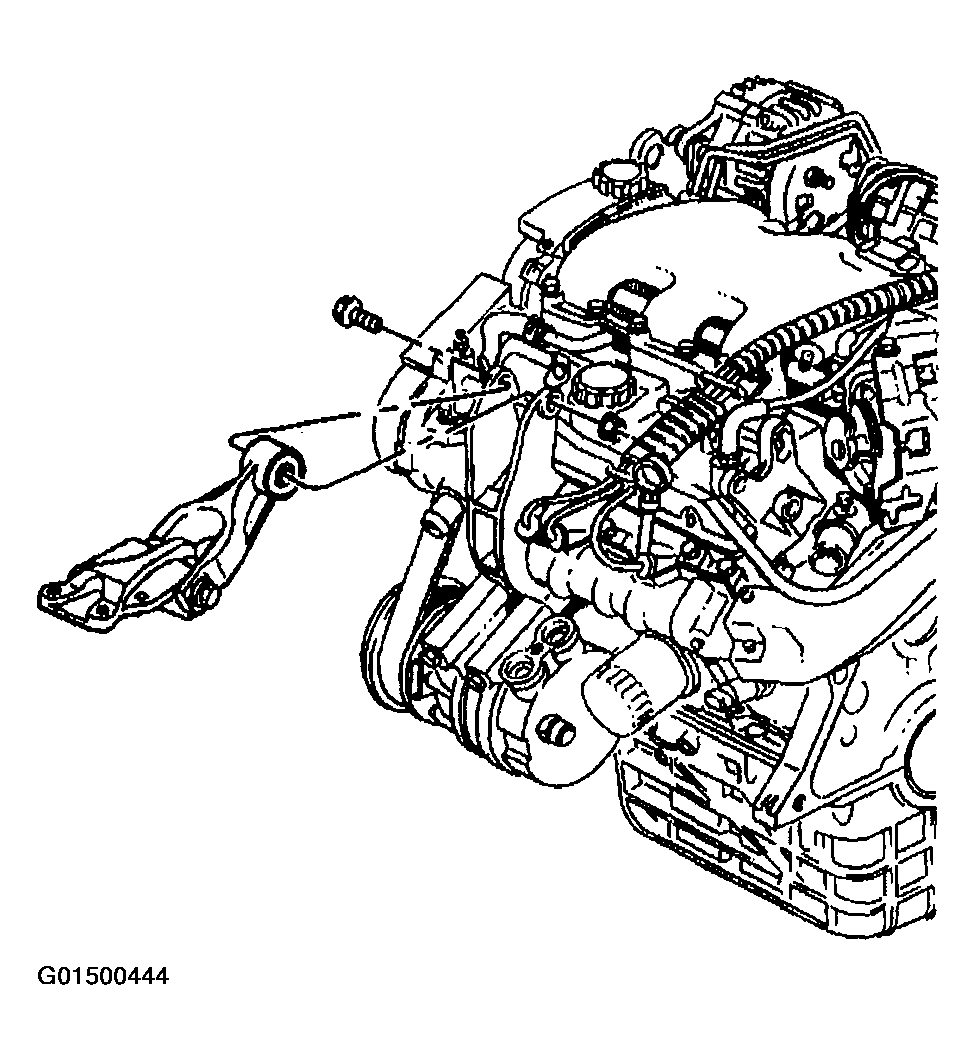

    Fig 2: Installing Bolt And Nut To Engine Mount Strut At Right Engine Mount Strut Bracket On Engine
    G01500444Courtesy of GENERAL MOTORS CORP.
