Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut at the left engine mount strut bracket on the engine.

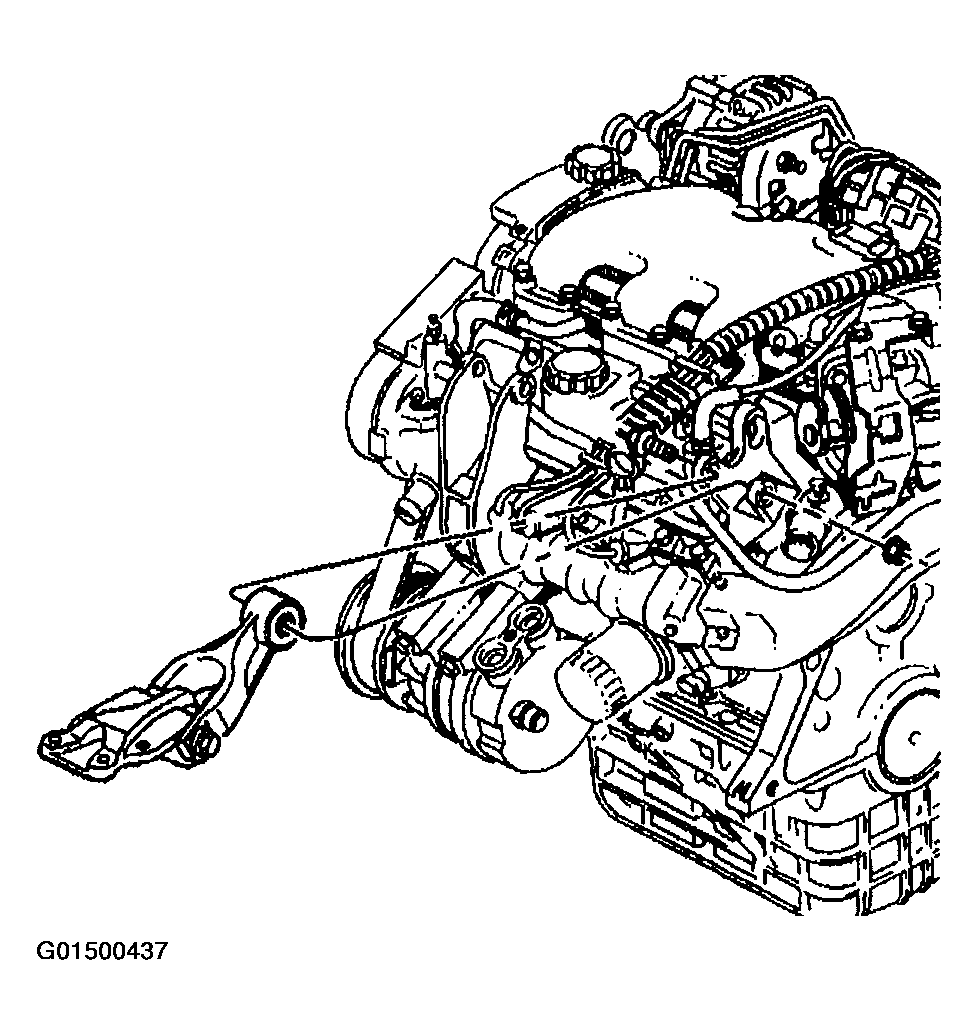

    Fig 1: Removing Bolt And Nut From Engine Mount Strut At Left Engine Mount Strut Bracket On Engine
    G01500437Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

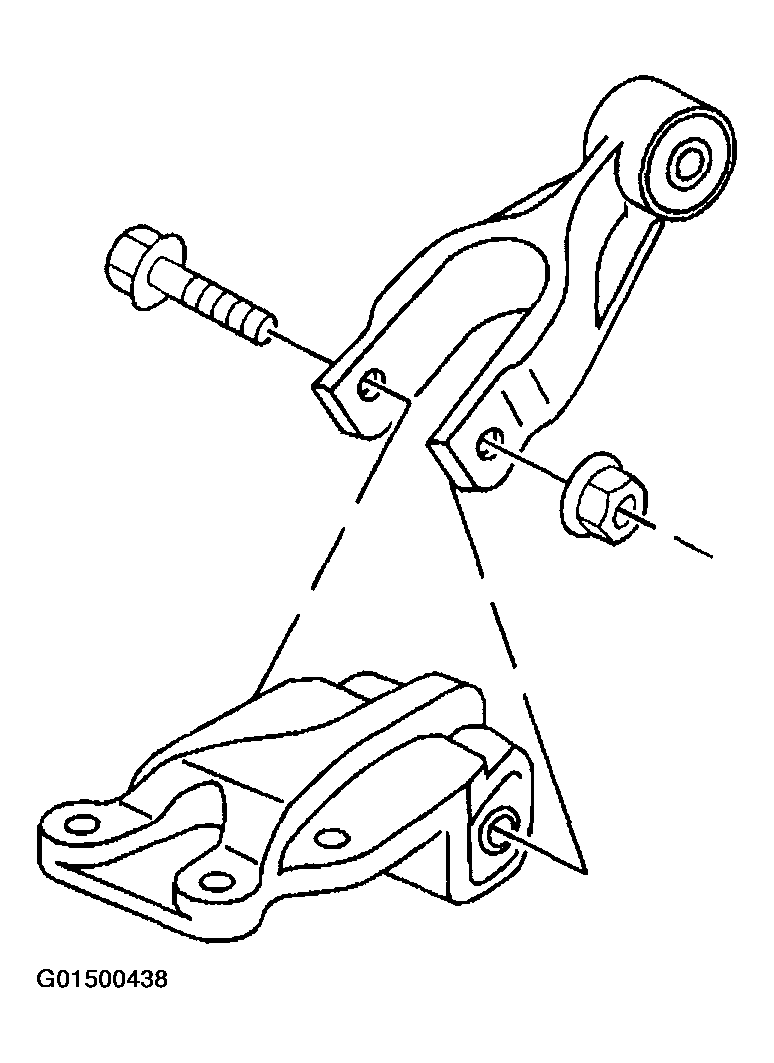

    Fig 2: Removing Engine Mount Strut - Left
    G01500438Courtesy of GENERAL MOTORS CORP.
