Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right engine mount strut from the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

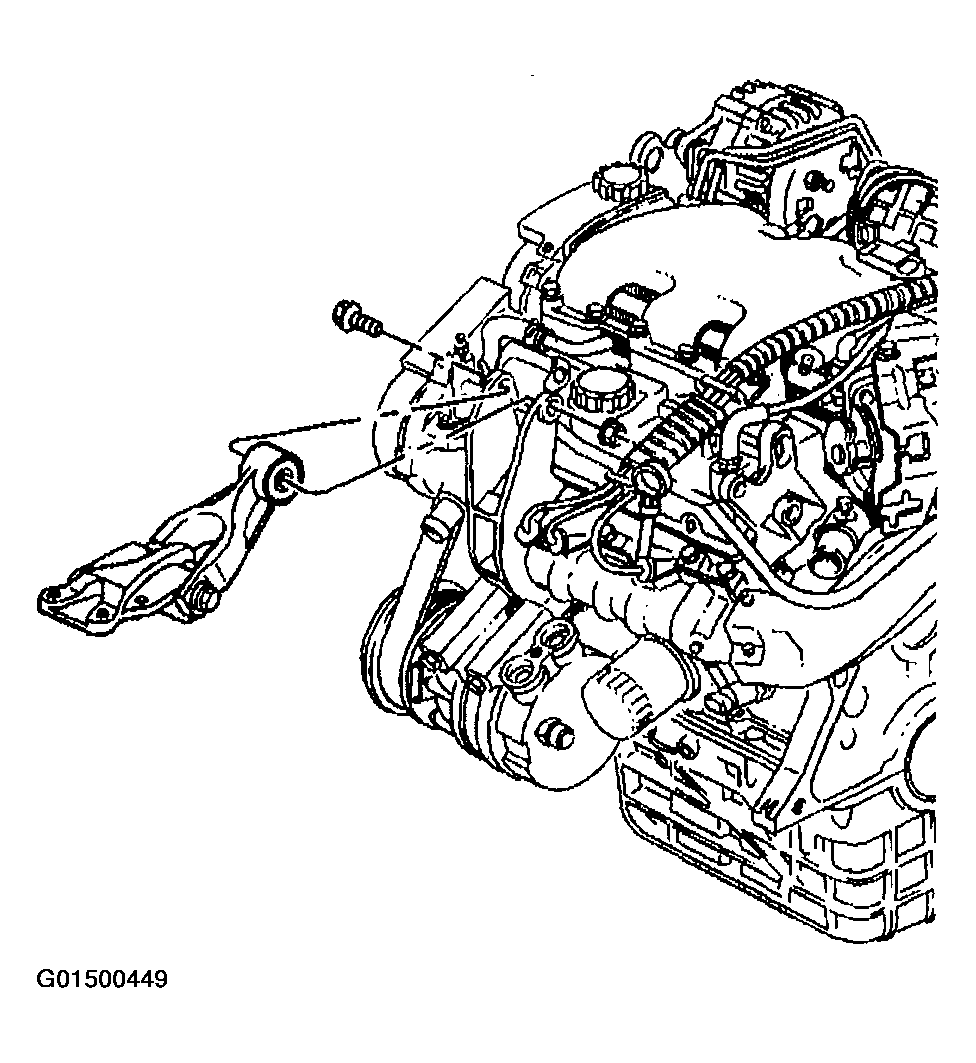

    Fig 1: Removing Right Engine Mount Strut From Right Engine Mount Strut Bracket
    G01500449Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil cooler line bracket bolt, if equipped. Refer to OIL COOLER INLET LINE REPLACEMENT  .
  3. Raise and support the vehicle.
  4. Remove the lower radiator baffle. Refer to RADIATOR AIR BAFFLE ASSEMBLIES AND DEFLECTORS .
  5. Remove the lower engine mount strut bracket bolt from the right engine mount strut bracket.

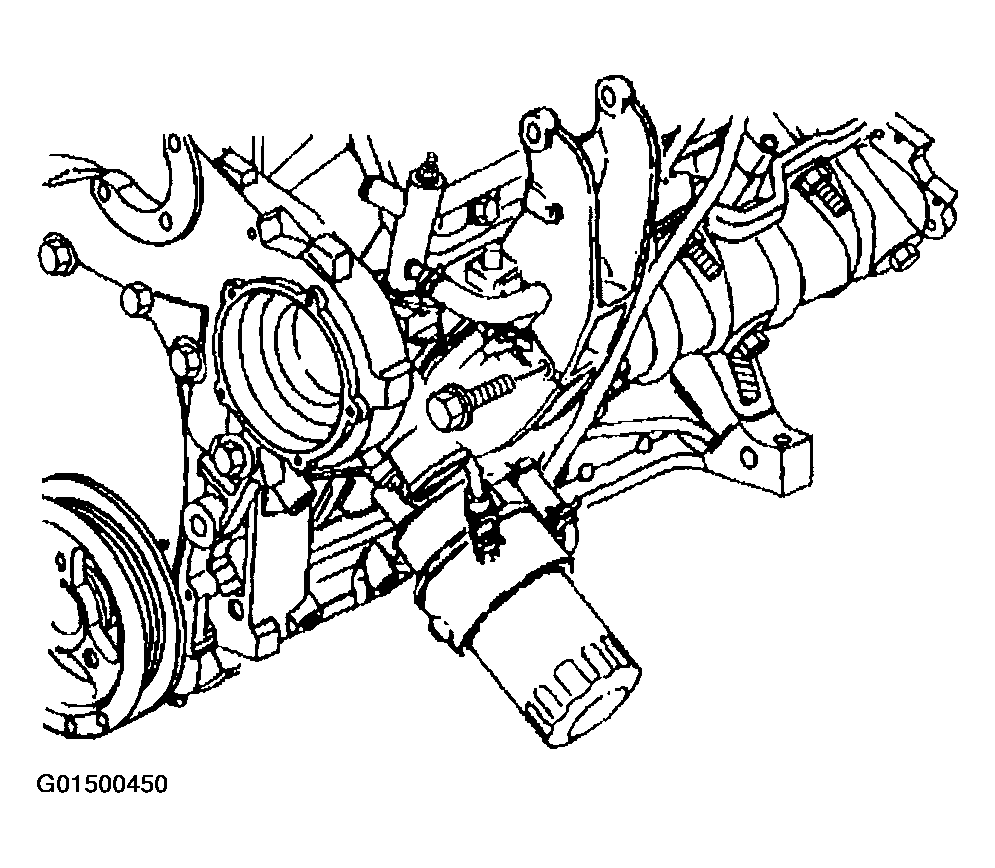

    Fig 2: Removing Lower Engine Mount Strut Bracket Bolt
    G01500450Courtesy of GENERAL MOTORS CORP.
  6. Remove the air conditioning compressor mounting bolts. Refer to COMPRESSOR REPLACEMENT .
  7. Remove and set the air conditioning compressor aside.

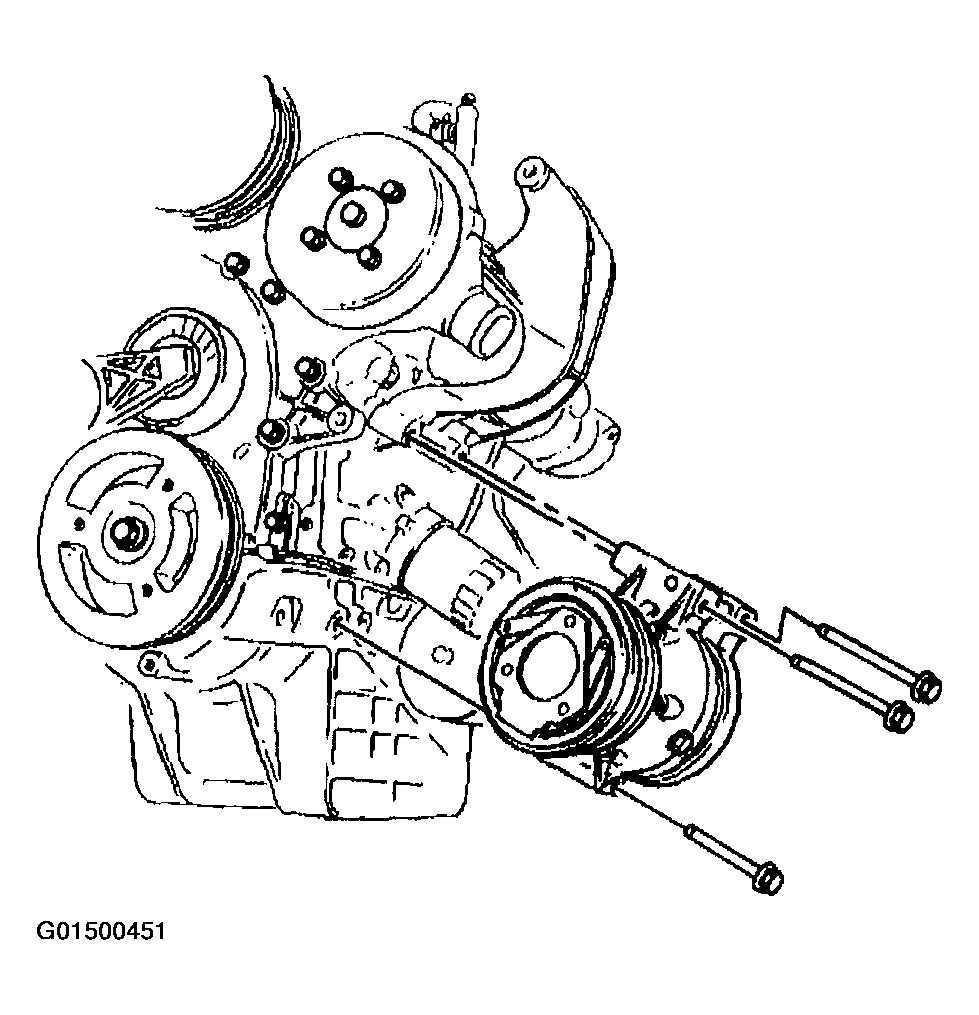

    Fig 3: Removing A/C Compressor
    G01500451Courtesy of GENERAL MOTORS CORP.
  8. Lower the vehicle.
  9. Remove the vertical engine mount strut bracket bolt from the right engine mount strut bracket.
  10. Remove the right engine mount strut bracket.

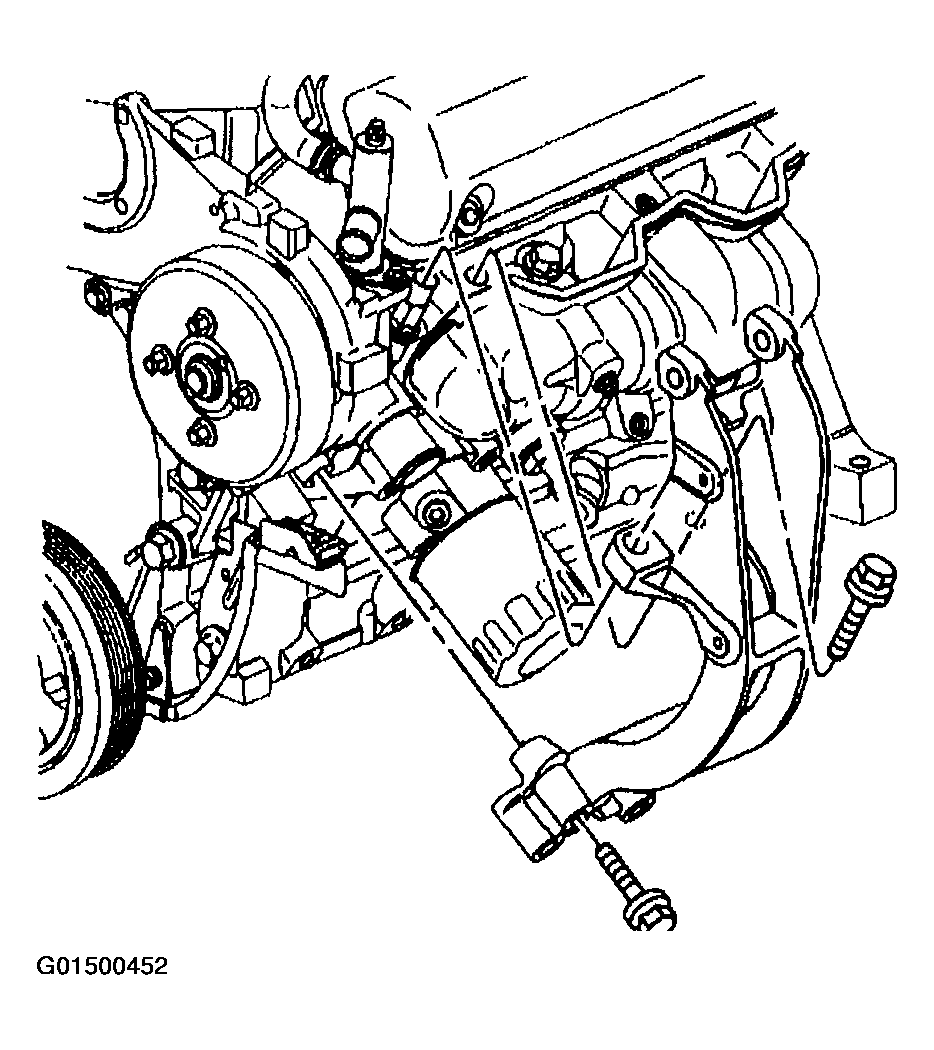

    Fig 4: Removing Right Engine Mount Strut Bracket
    G01500452Courtesy of GENERAL MOTORS CORP.
