Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left engine mount strut from the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  .
  2. Remove the thermostat housing.

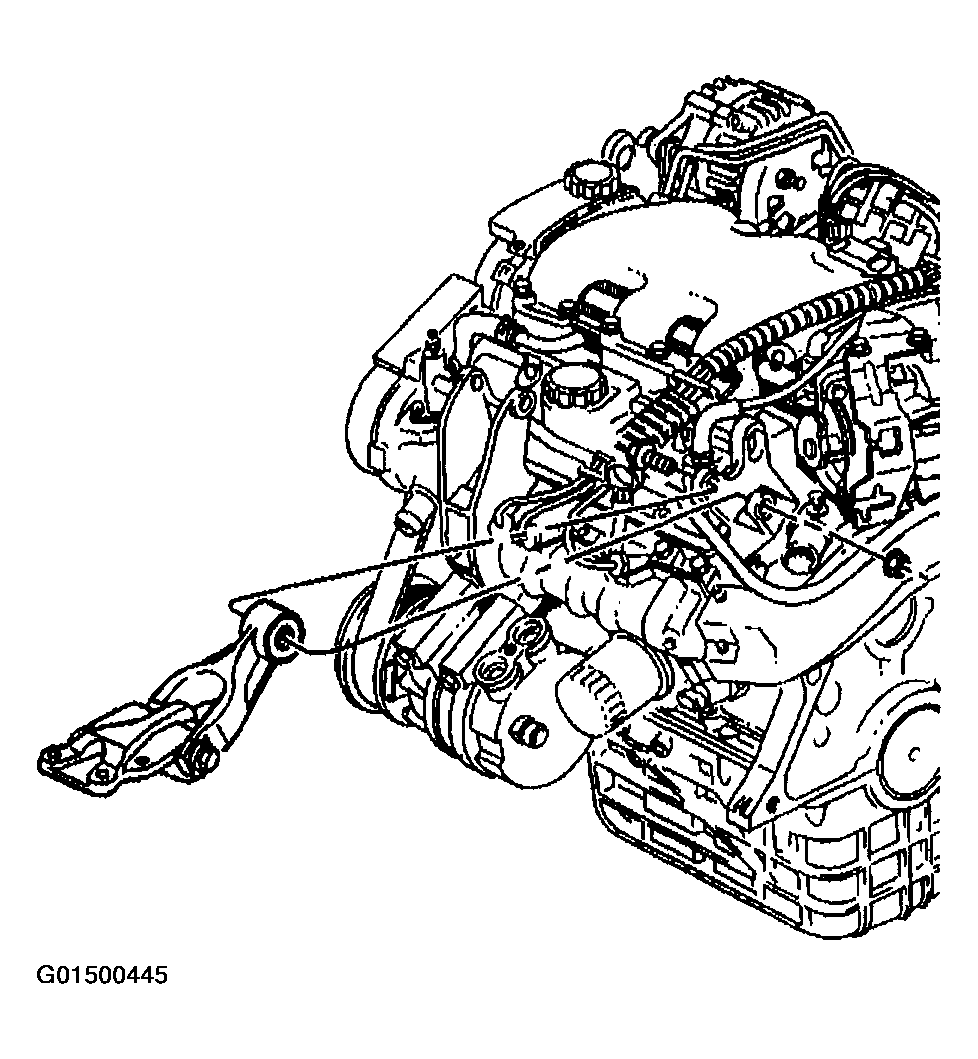

    Fig 1: Removing Left Engine Mount Strut From Left Engine Mount Strut Bracket
    G01500445Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  4. Remove the left engine mount strut bracket.

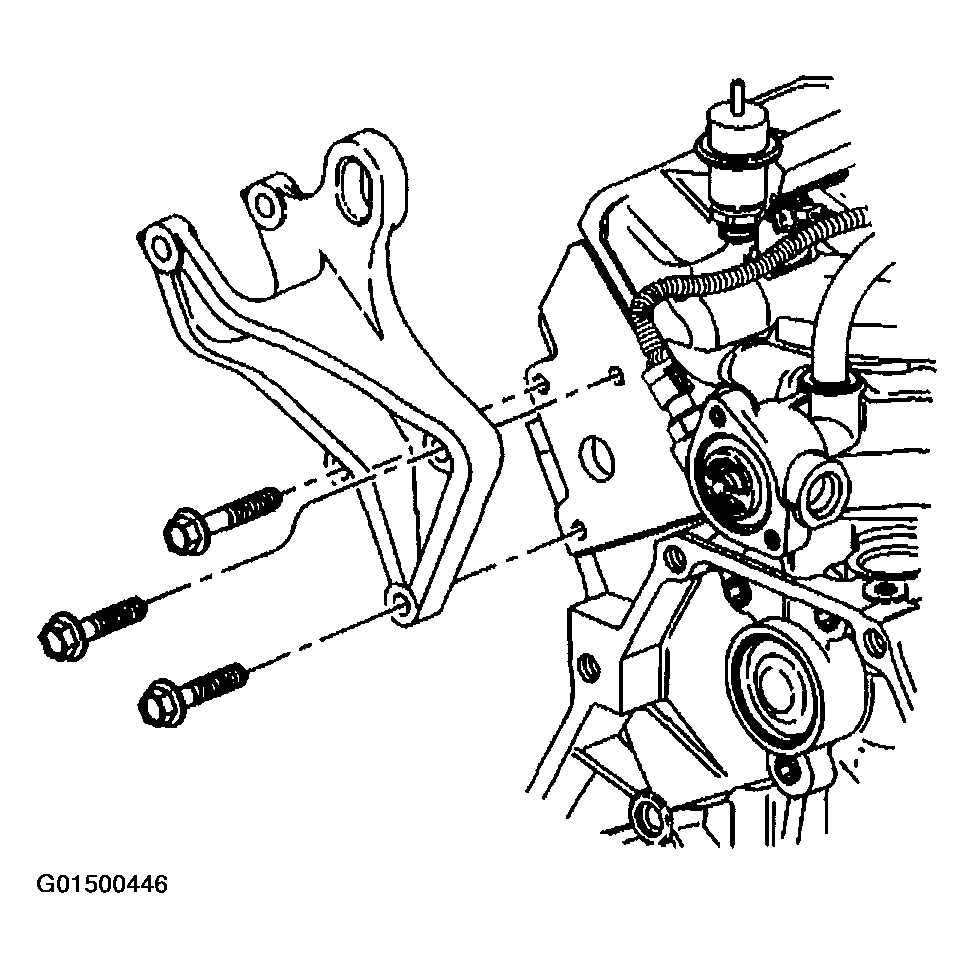

    Fig 2: Removing Left Engine Mount Strut Bracket
    G01500446Courtesy of GENERAL MOTORS CORP.
