Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket.
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolts to 70 N.m (52 lb ft).

  3. Install the thermostat housing.

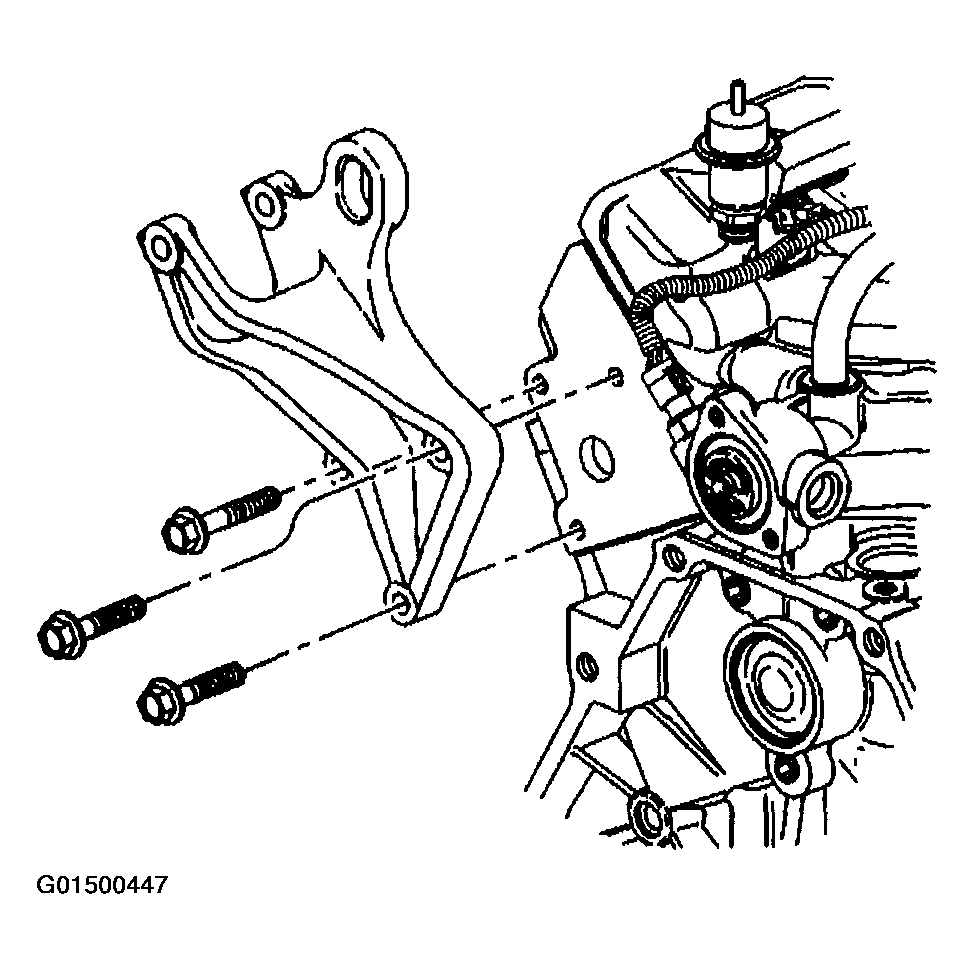

    Fig 1: Installing Left Engine Mount Strut Bracket
    G01500447Courtesy of GENERAL MOTORS CORP.
  4. Install the left engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  .

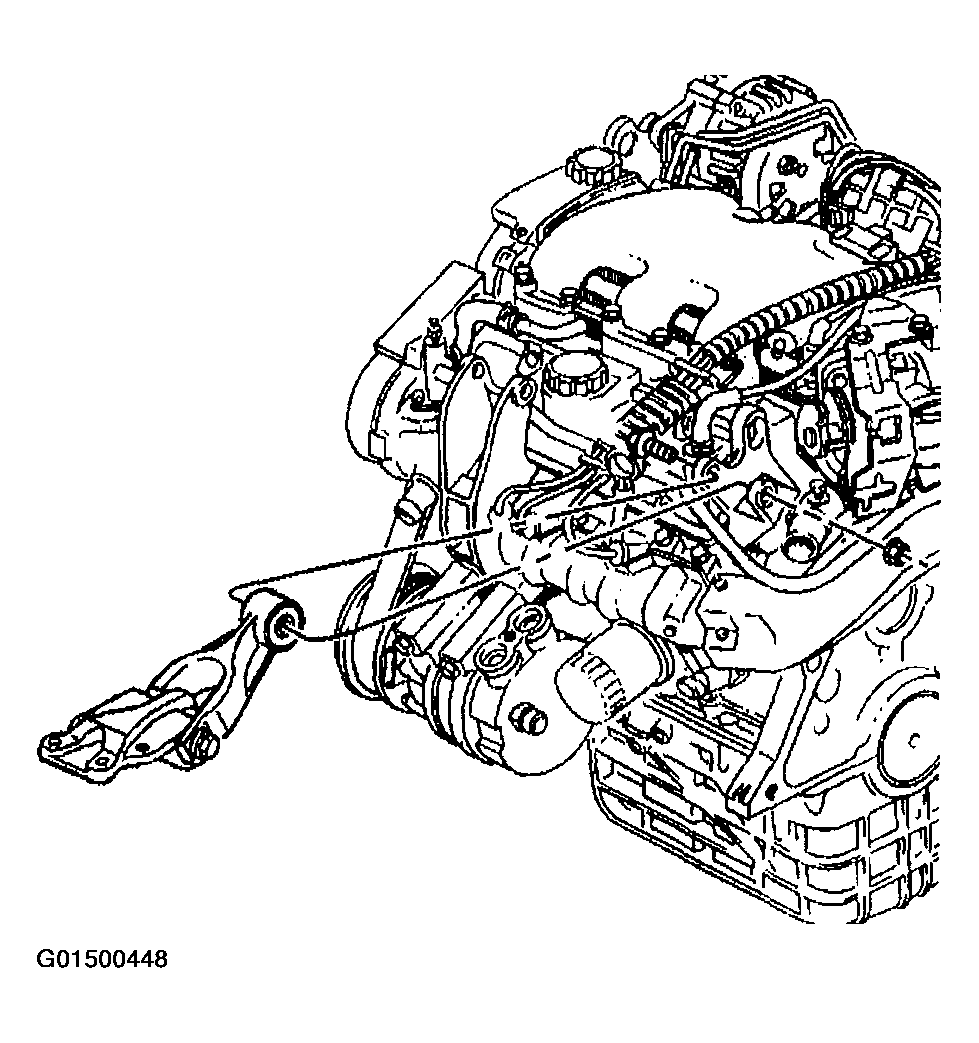

    Fig 2: Installing Left Engine Mount Strut To Left Engine Mount Strut Bracket
    G01500448Courtesy of GENERAL MOTORS CORP.
