Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount bracket to the engine mount.
  2. Install the engine mount upper nuts.

    Tighten

    Tighten the engine mount upper nuts to 53 N.m (39 lb ft).

  3. Use a utility stand in order to lower the engine.

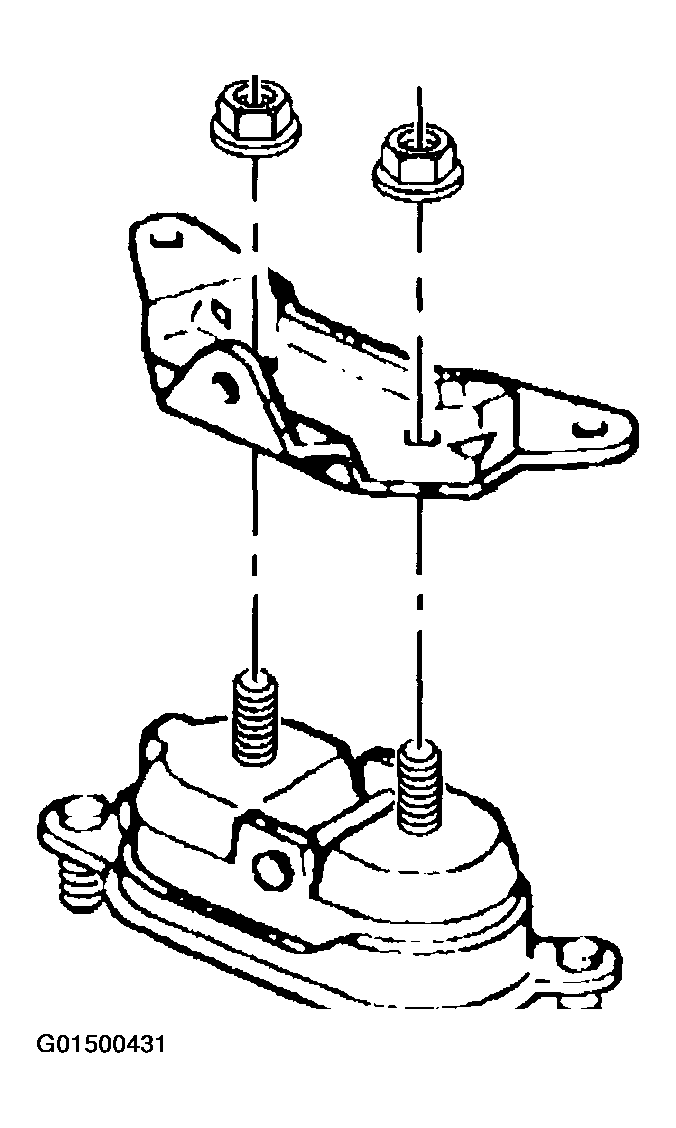

    Fig 1: Installing Engine Mount Bracket To Engine Mount - FWD
    G01500431Courtesy of GENERAL MOTORS CORP.
  4. Install the engine mount bracket to the oil pan.
  5. Install the engine mount bracket-to-oil pan bolts.

    Tighten

    Tighten the engine mount bracket bolts to 58 N.m (43 lb ft).

  6. Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT -- ENGINE .
  7. Install the right front wheel and tire.
  8. Connect the catalytic converter pipe to the engine right side exhaust manifold.
  9. Lower the vehicle.

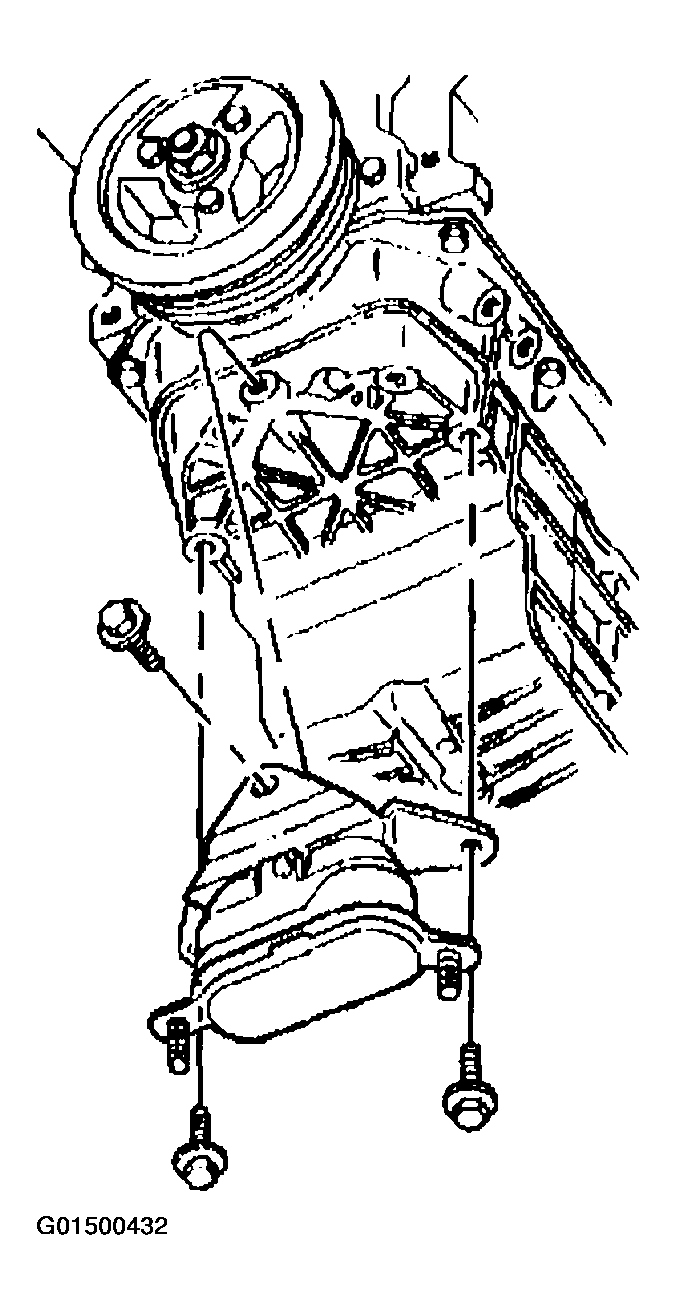

    Fig 2: Installing Engine Mount Bracket - FWD
    G01500432Courtesy of GENERAL MOTORS CORP.
  10. Install the engine mount struts. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .
  11. Install the throttle body air inlet duct.
