Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. Refer to TRANSMISSION REPLACEMENT .
  2. Remove the engine flywheel bolts and flywheel.
  3. Clean the engine flywheel bolt threads and bolt holes.
  4. Clean and inspect the engine flywheel. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION  .

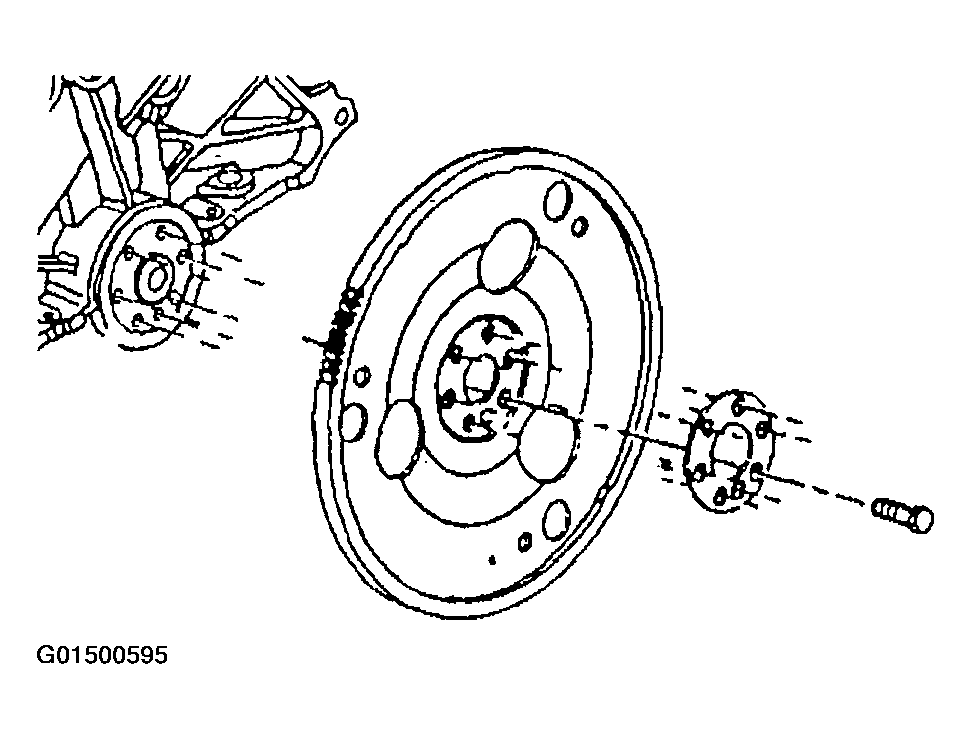

    Fig 1: Removing Engine Flywheel Bolts And Flywheel
    G01500595Courtesy of GENERAL MOTORS CORP.
