Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .

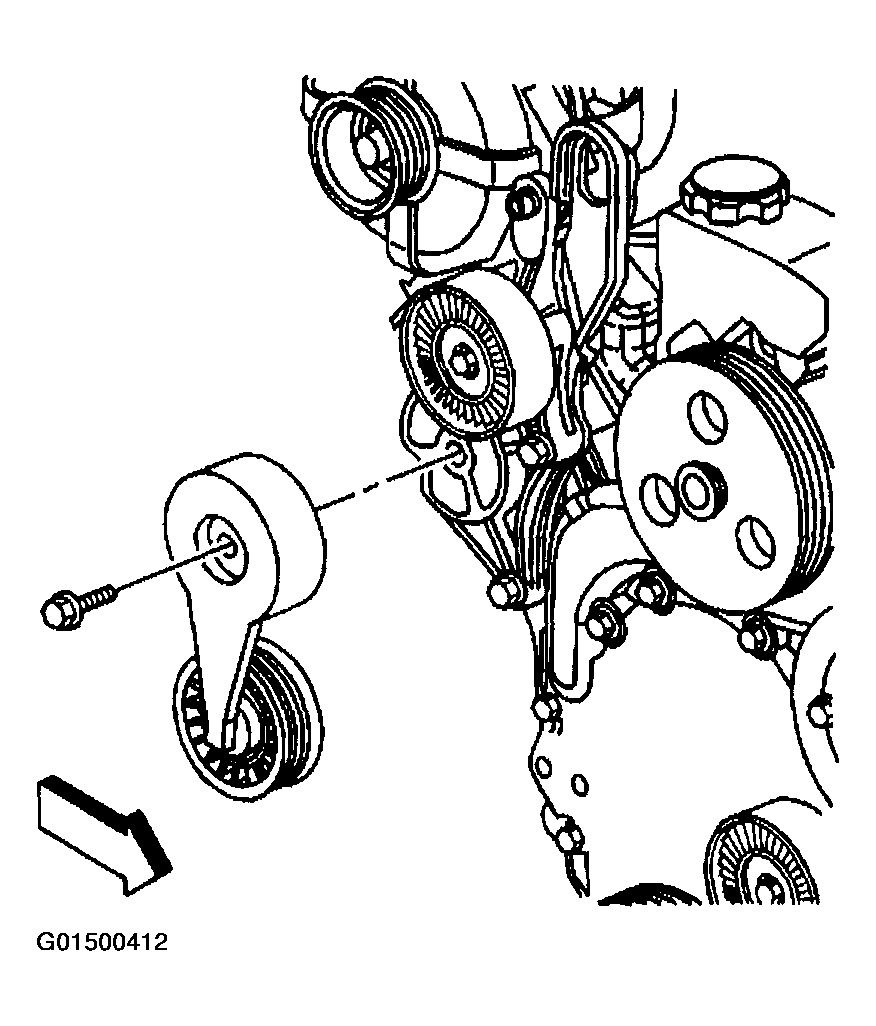

    Fig 1: Installing Drive Belt Tensioner
    G01500412Courtesy of GENERAL MOTORS CORP.
