Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner in order to release the pressure on the drive belt.
  2. Remove the drive belt.

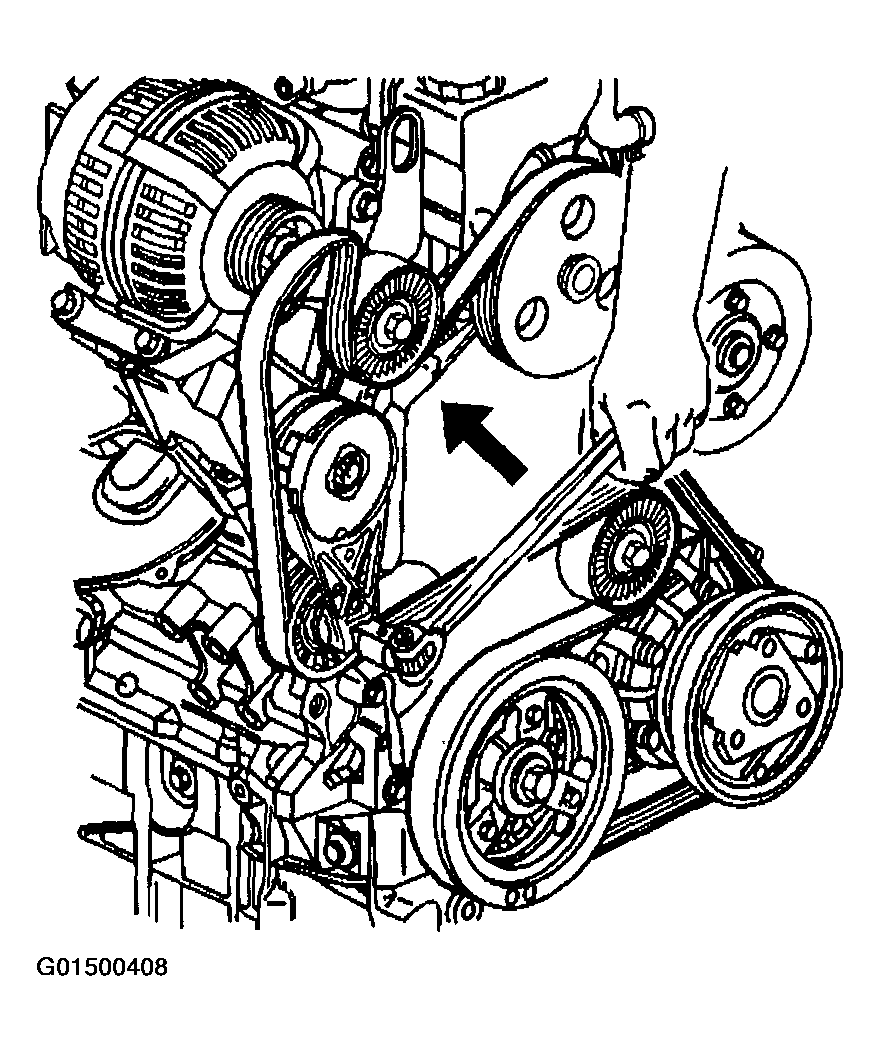

    Fig 1: Drive Belt Routing
    G01500408Courtesy of GENERAL MOTORS CORP.
