Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt to all of the pulleys except the generator pulley.
  2. Rotate the drive belt tensioner in order to install the drive belt over the generator pulley.
    Fig 1: Drive Belt Routing
    G01500408Courtesy of GENERAL MOTORS CORP.

    Important:  Ensure that the drive belt is aligned into the proper grooves of the accessory drive belt pulleys.

  3. Ensure that the drive belt is properly routed.

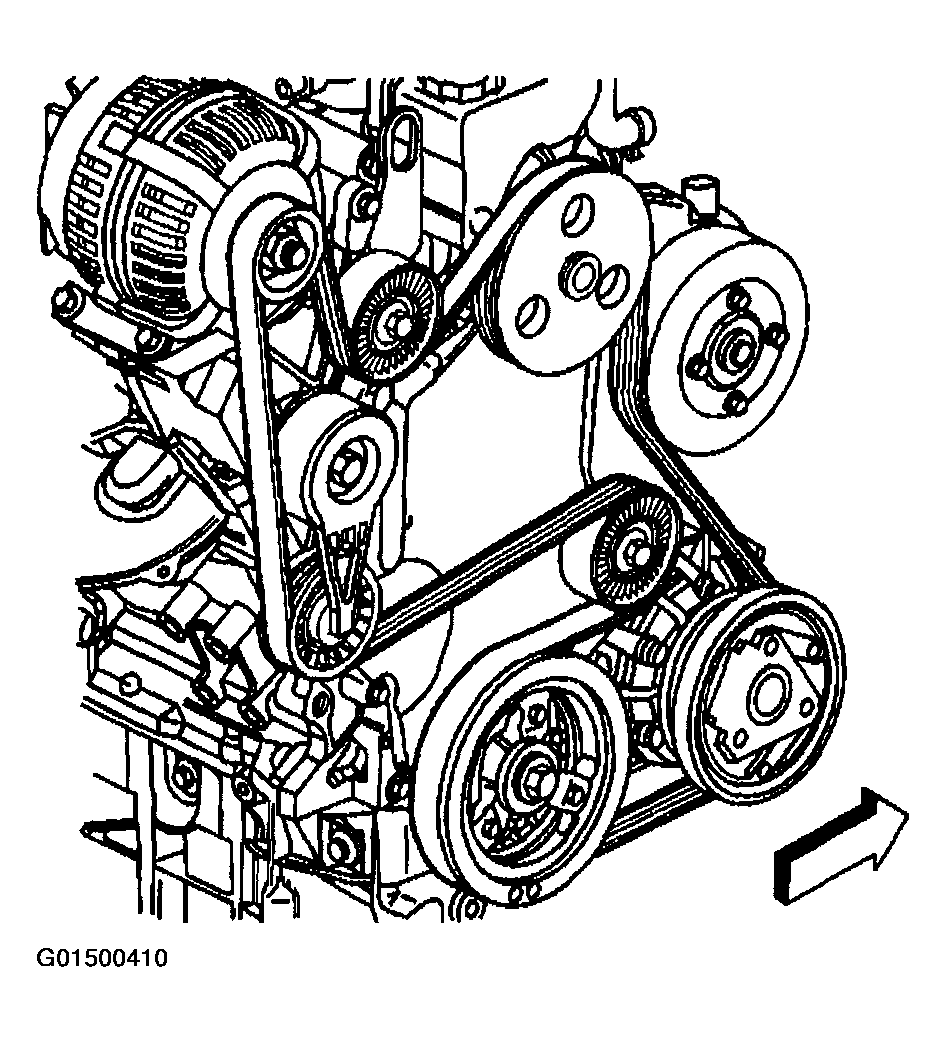

    Fig 2: Identifying Drive Belt Proper Aligning Position
    G01500410Courtesy of GENERAL MOTORS CORP.
