Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crankshaft oil deflector.
  2. Install the crankshaft oil deflector nuts.

    Tighten

    Tighten the crankshaft oil deflector nuts to 25 N.m (18 lb ft).

  3. Install the oil pan. Refer to OIL PAN REPLACEMENT  .

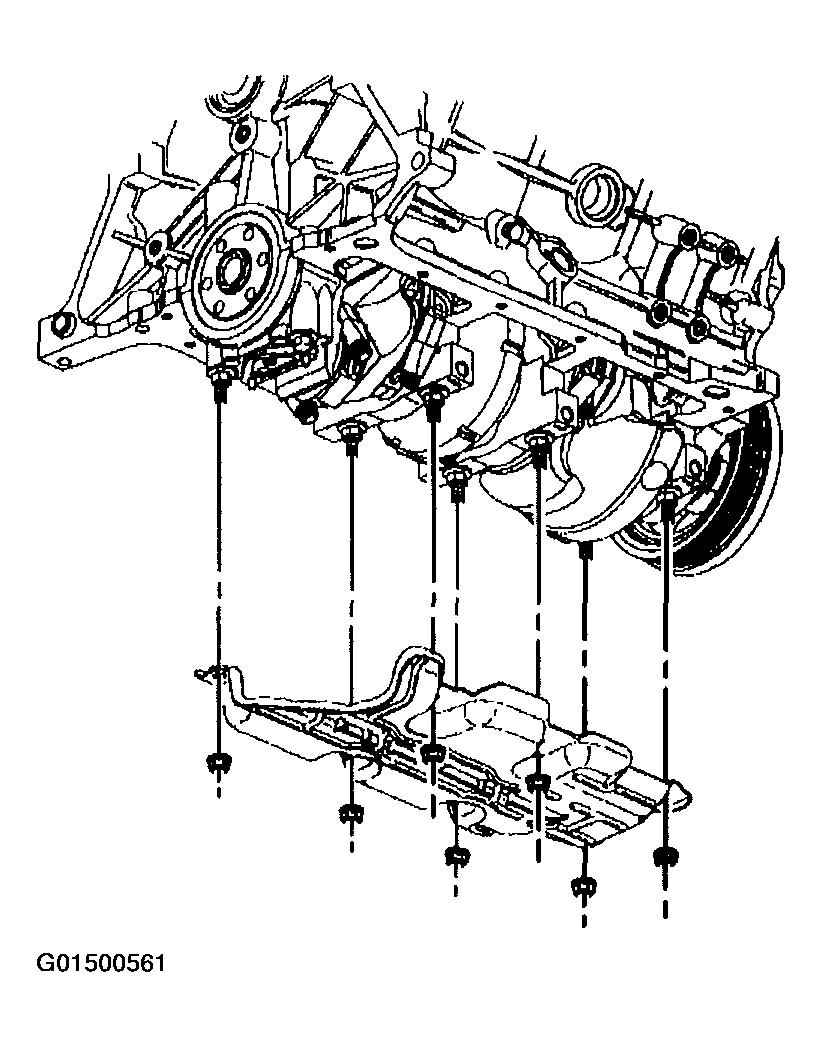

    Fig 1: Installing Crankshaft Oil Deflector
    G01500561Courtesy of GENERAL MOTORS CORP.
