Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12345493 or equivalent.
Use an impact wrench socket and a hammer in order to install the camshaft rear bearing hole plug.

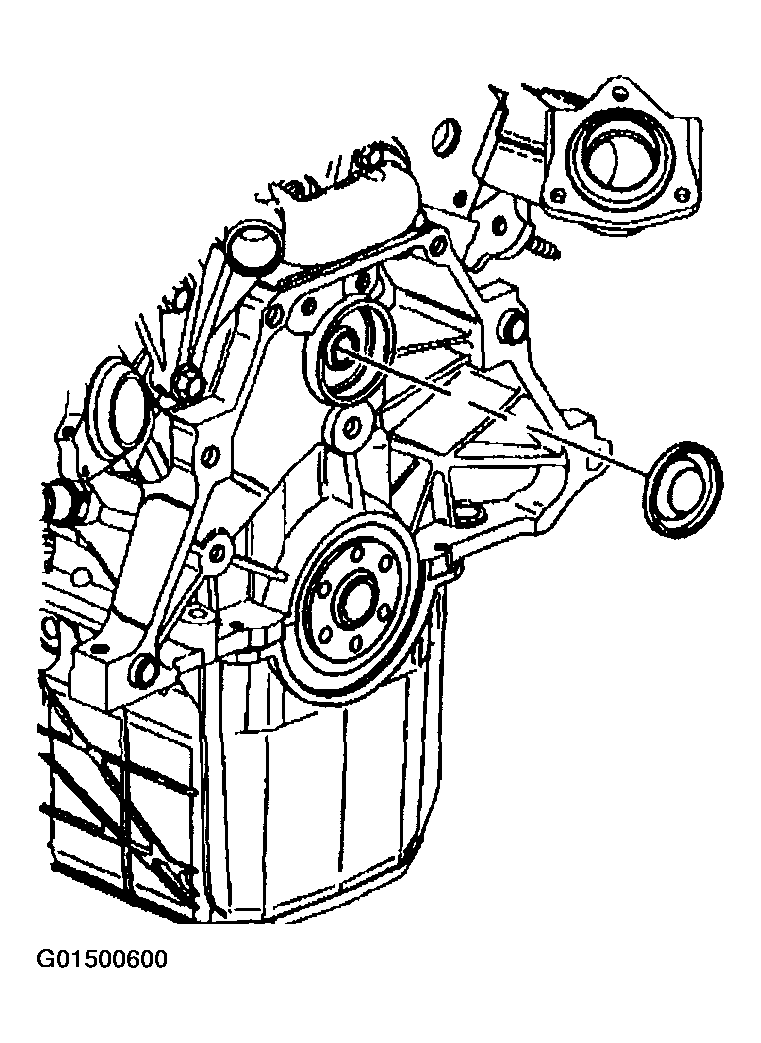

Fig 1: Installing Camshaft Rear Bearing Hole Plug
Courtesy of GENERAL MOTORS CORP.
Ensure that the camshaft rear bearing plug is installed to specifications.
Install the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT .

Fig 2: Identifying Camshaft Rear Bearing Plug Installation Specification
Courtesy of GENERAL MOTORS CORP.
