Water Outlet and Thermostat Removal

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

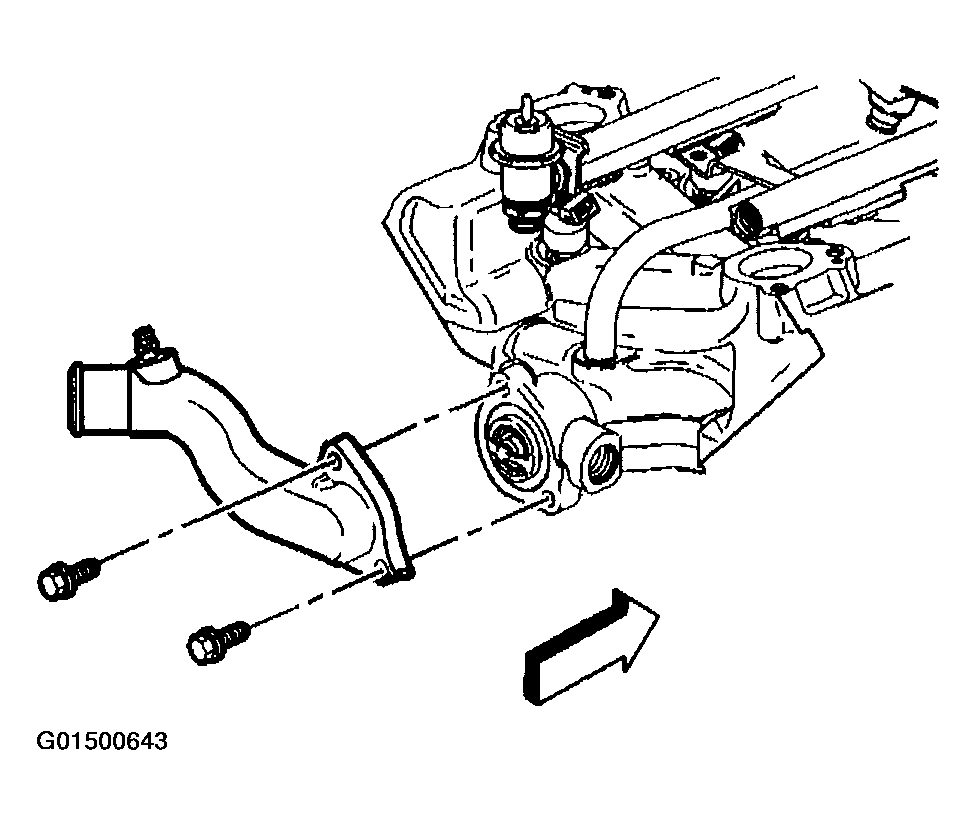

    Fig 1: Removing Water Outlet
    G01500643Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

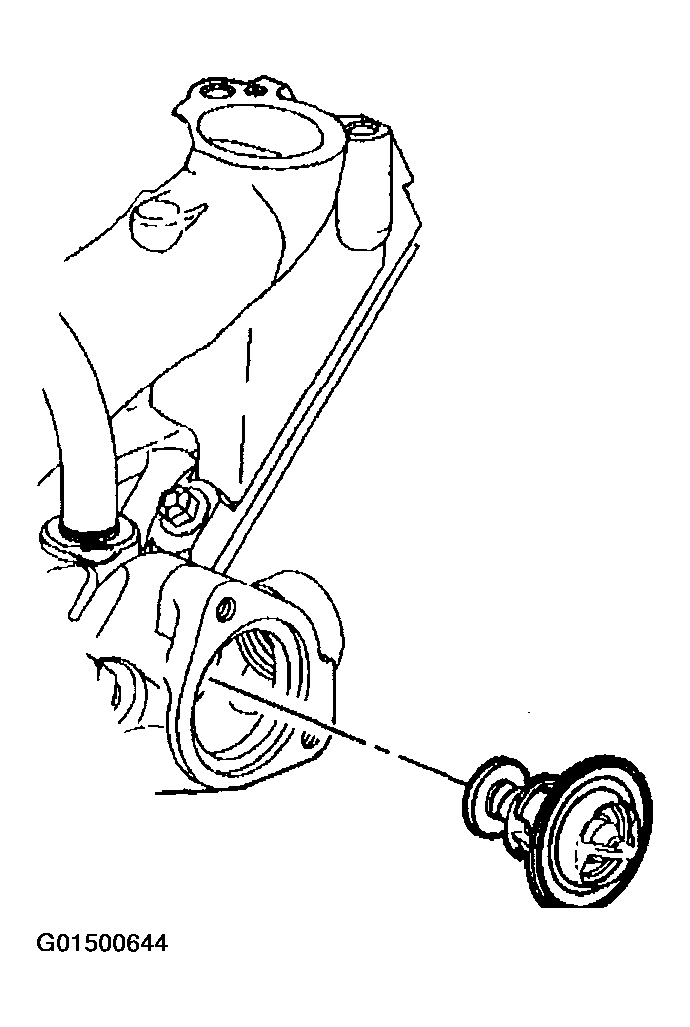

    Fig 2: Removing Thermostat
    G01500644Courtesy of GENERAL MOTORS CORP.
