Valve Rocker Arm Cover Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.

    Important:  When removing the valve rocker arm cover make sure the gasket stays in place attached to the cylinder head.

  2. Remove the valve rocker arm cover and gasket.
  3. Cut the RTV in the channel where the intake, cylinder head and valve rocker arm cover meet with a suitable tool.
  4. Remove the valve rocker arm cover.
  5. Cut the RTV in the channel where the intake, cylinder head and valve rocker arm cover meet, with suitable tool.
  6. Remove the valve rocker arm cover gasket.

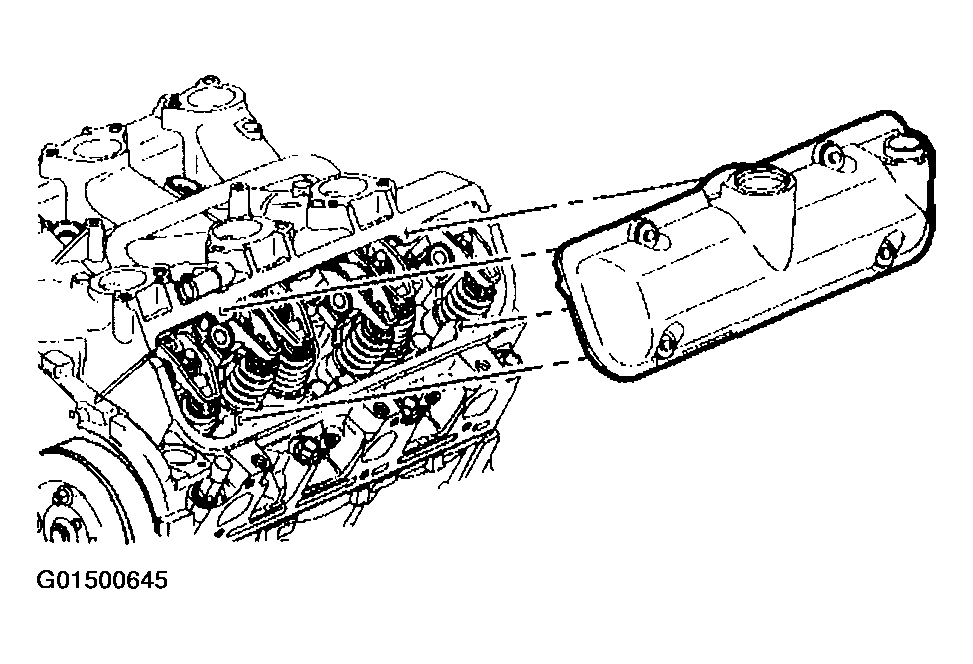

    Fig 1: Removing Valve Rocker Arm Cover - Left
    G01500645Courtesy of GENERAL MOTORS CORP.
