Valve Lifter Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve lifters using prelube GM P/N United States 1052367, GM P/N Canada 992869 or the equivalent.
  2. Install the valve lifters in their original locations.
  3. Apply threadlock GM P/N United States 12345382, GM P/N Canada 10953489 or the equivalent to the threads.
  4. Install the valve lifter guides and guide bolts.

    Tighten  Tighten the valve lifter guide bolts to 10 N.m (89 lb in).

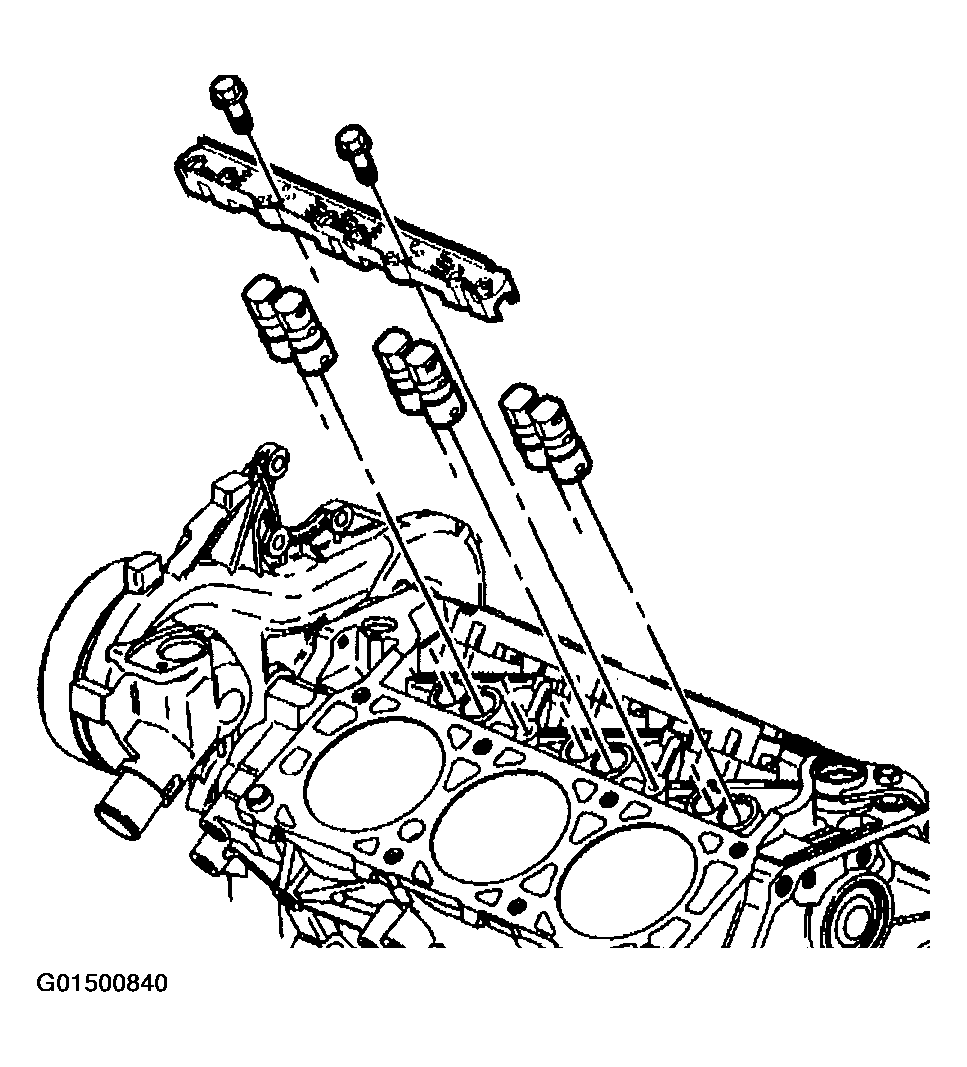

    Fig 1: Installing Valve Lifters
    G01500840Courtesy of GENERAL MOTORS CORP.
