Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

J 41131  Engine Tilter Strap

  1. Remove the throttle body air inlet duct.
  2. Set the park brake.
  3. Shift the transaxle into Neutral.
  4. Remove the engine mount strut bolts. Swing the engine mount struts aside.
  5. Install the J 41131.
  6. Pull on the engine in order to rotate the engine forward.
  7. Tighten the J 41131.

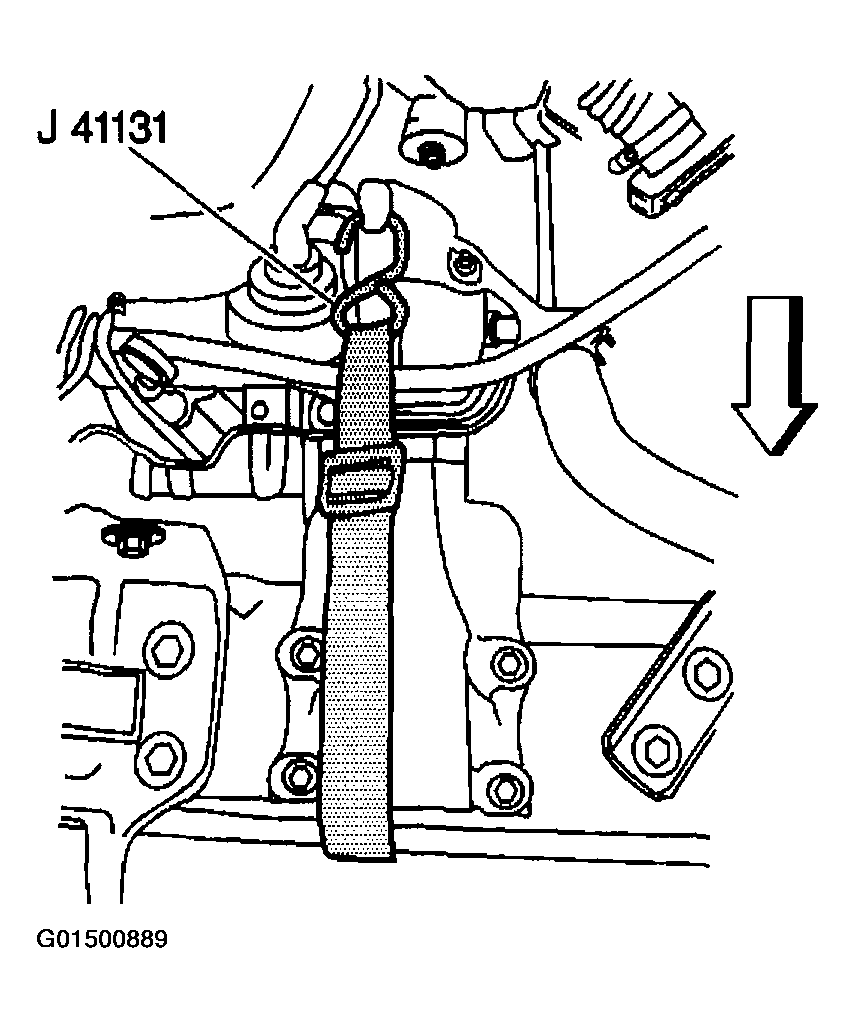

    Fig 1: Installing Engine Tilter Strap (J 41131)
    G01500889Courtesy of GENERAL MOTORS CORP.
