Oil Pump Installation
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
- Install the crankshaft oil deflector.
- Install the crankshaft oil deflector nuts.
Tighten Tighten the crankshaft oil deflector nuts to 25N.m (18 lb ft).
Important: Do not reuse the oil pump driveshaft retainer. During assembly, install a NEW oil pump driveshaft retainer.

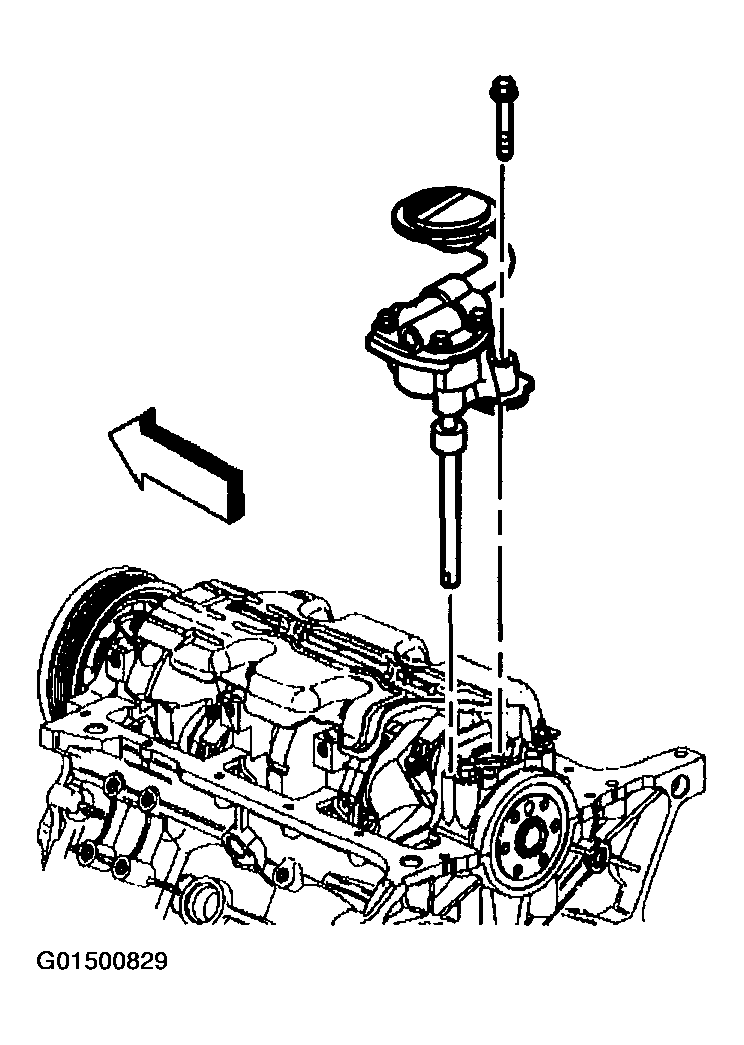

- Install the oil pump.
- Position the oil pump onto the pins.
- Install the oil pump bolt attaching the oil pump to the rear crankshaft bearing cap.
Tighten Tighten the oil pump bolt to 41 N.m (30 lb ft).
