Oil Pump Drive Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent to the oil pump drive gear.
  2. Apply engine oil to the oil pump drive gear assembly for ease of assembly.
  3. Install the oil pump drive gear assembly.
  4. Install the oil pump drive gear clamp.
  5. Install the oil pump drive gear clamp bolt.

    Tighten  Tighten the oil pump drive gear clamp bolt to 36 N.m (27 lb ft).

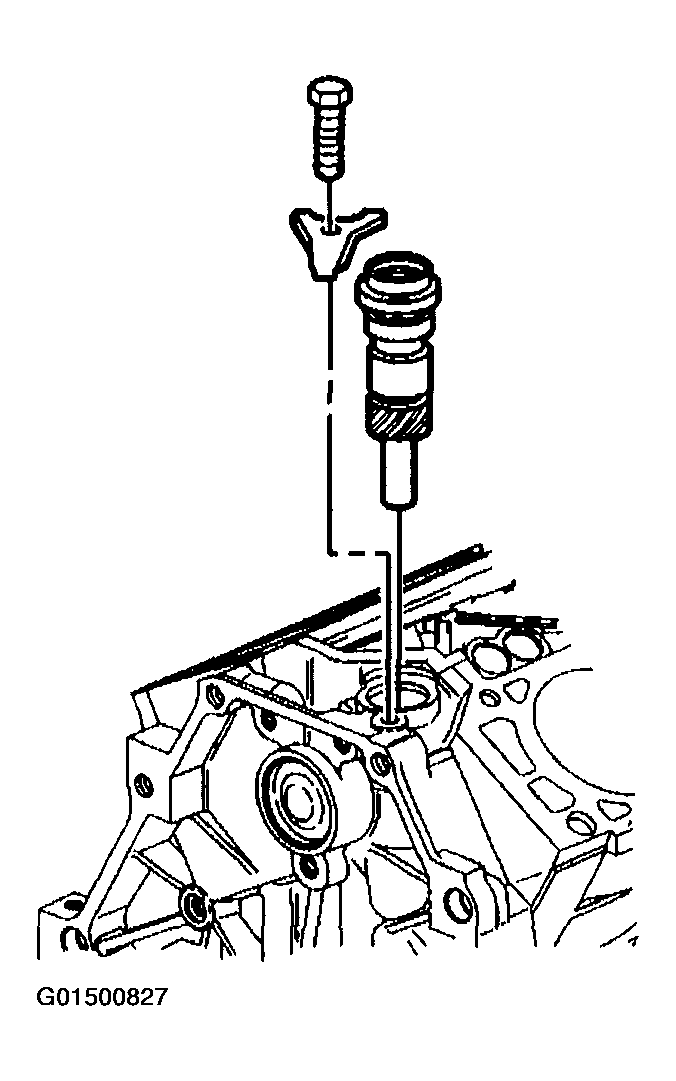

    Fig 1: Installing Oil Pump Drive Gear Assembly
    G01500827Courtesy of GENERAL MOTORS CORP.
