Oil Pan Removal

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level pressure sensor and sensor bolt.
  2. Remove the oil pan side bolts.
  3. Remove the oil pan bolts.
  4. Remove the oil pan.
  5. Remove the oil pan gasket.

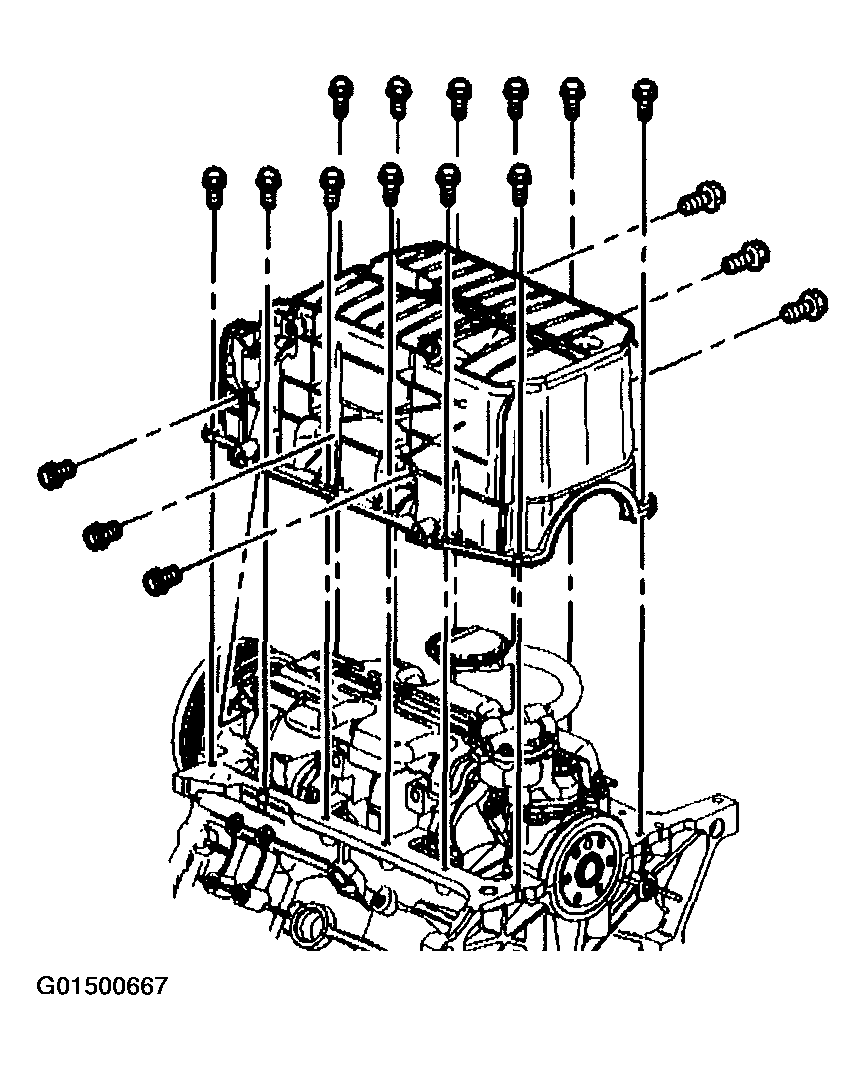

    Fig 1: Removing Oil Pan
    G01500667Courtesy of GENERAL MOTORS CORP.
