Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level indicator and oil level indicator tube.
  2. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 25 N.m (18 lb ft).

  3. Install the thermostat bypass pipe (3).
    Fig 1: Installing Oil Level Indicator And Oil Level Indicator Tube
    G01500880Courtesy of GENERAL MOTORS CORP.
  4. Install the thermostat bypass pipe (3) and hose clamp (5).
  5. Install the thermostat bypass pipe to engine front cover bolt (4).

    Tighten

    Tighten the thermostat bypass pipe to engine front cover bolt to 11 N.m (98 lb in).

  6. Install the thermostat bypass pipe (3) to throttle body hose clamps (1).
  7. Install the thermostat bypass pipe to throttle body nut (2).

    Tighten

    Tighten the thermostat bypass pipe to throttle body nut to 25 N.m (18 lb ft).

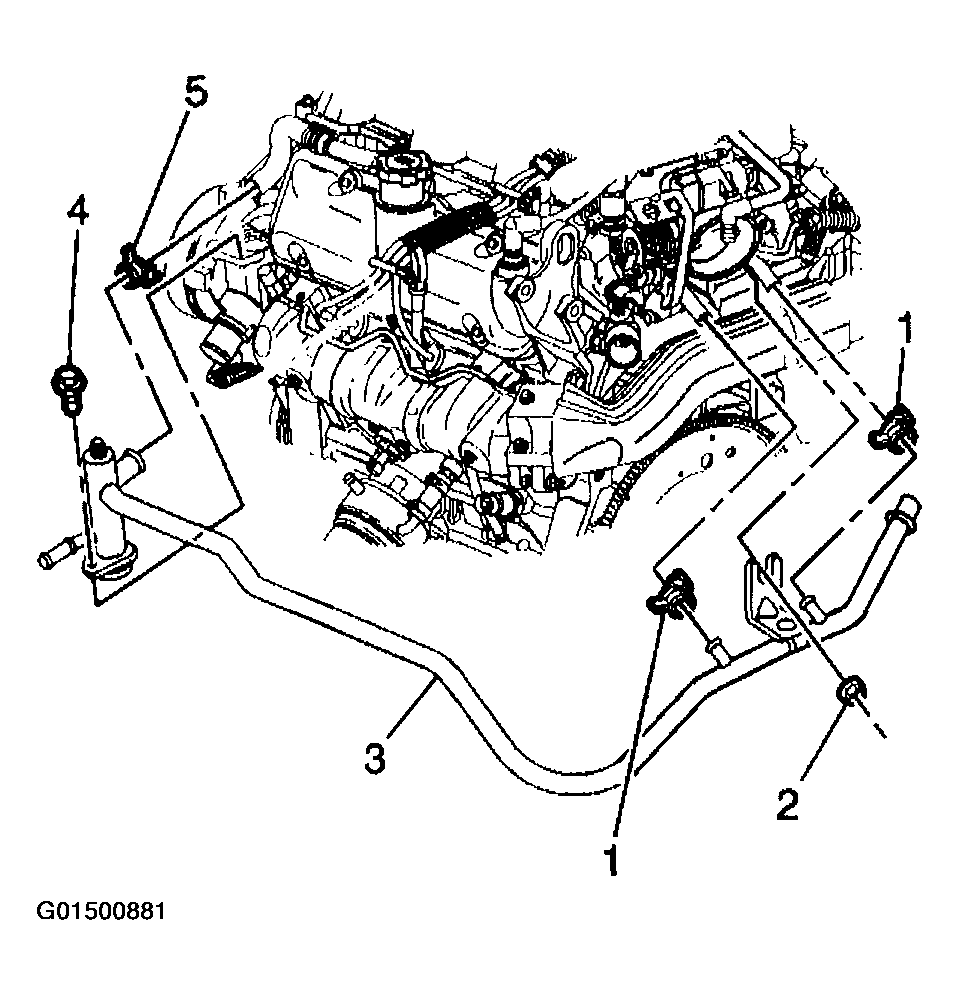

    Fig 2: Installing Thermostat Bypass Pipe
    G01500881Courtesy of GENERAL MOTORS CORP.
