Intake Manifold Removal - Lower

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

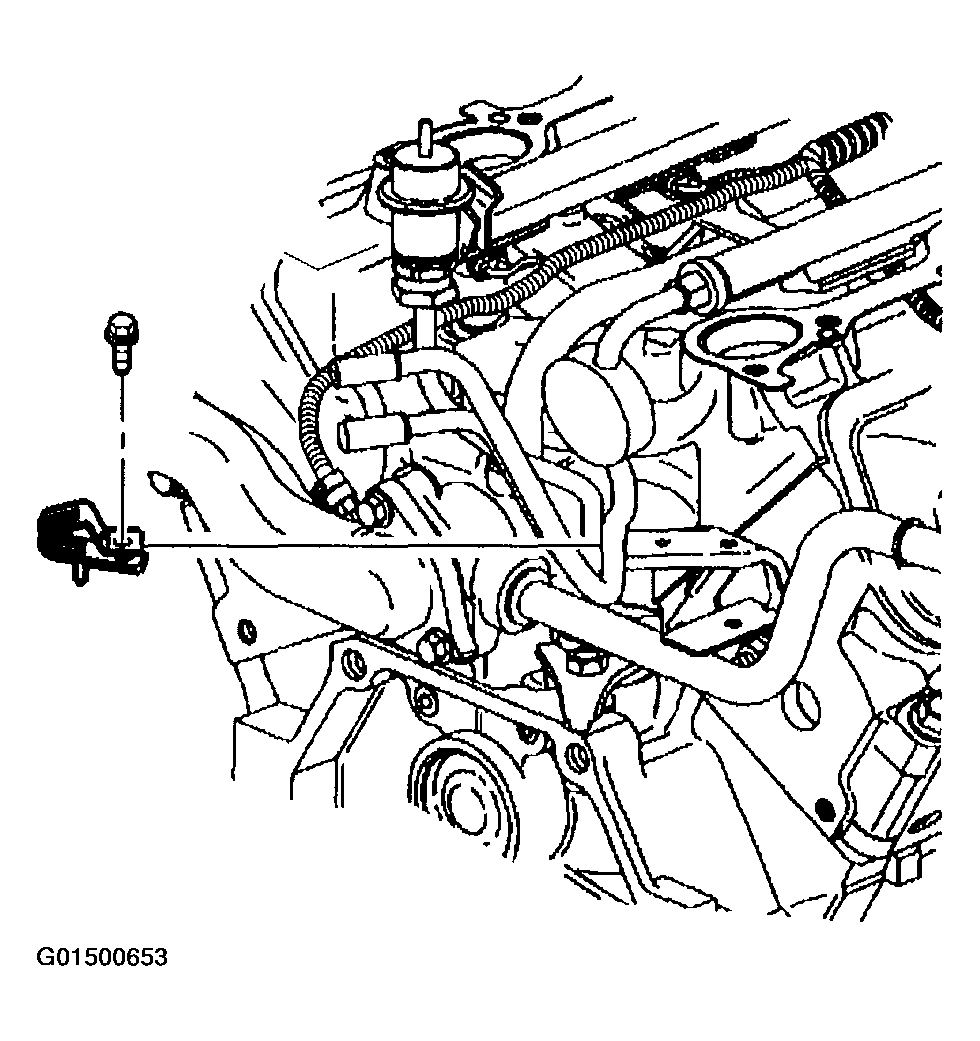

    Fig 1: Removing Fuel Feed And Return Pipe Retaining Clip
    G01500653Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

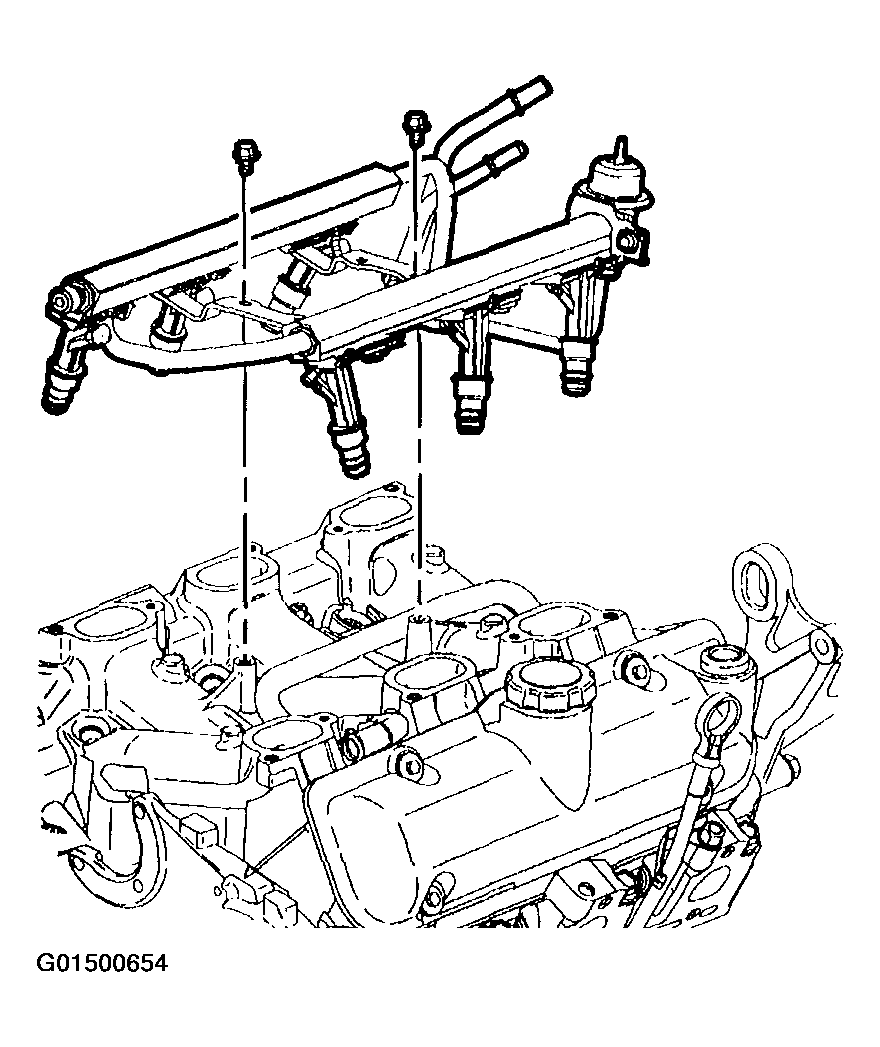

    Fig 2: Removing Fuel Injector Rail Assembly
    G01500654Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

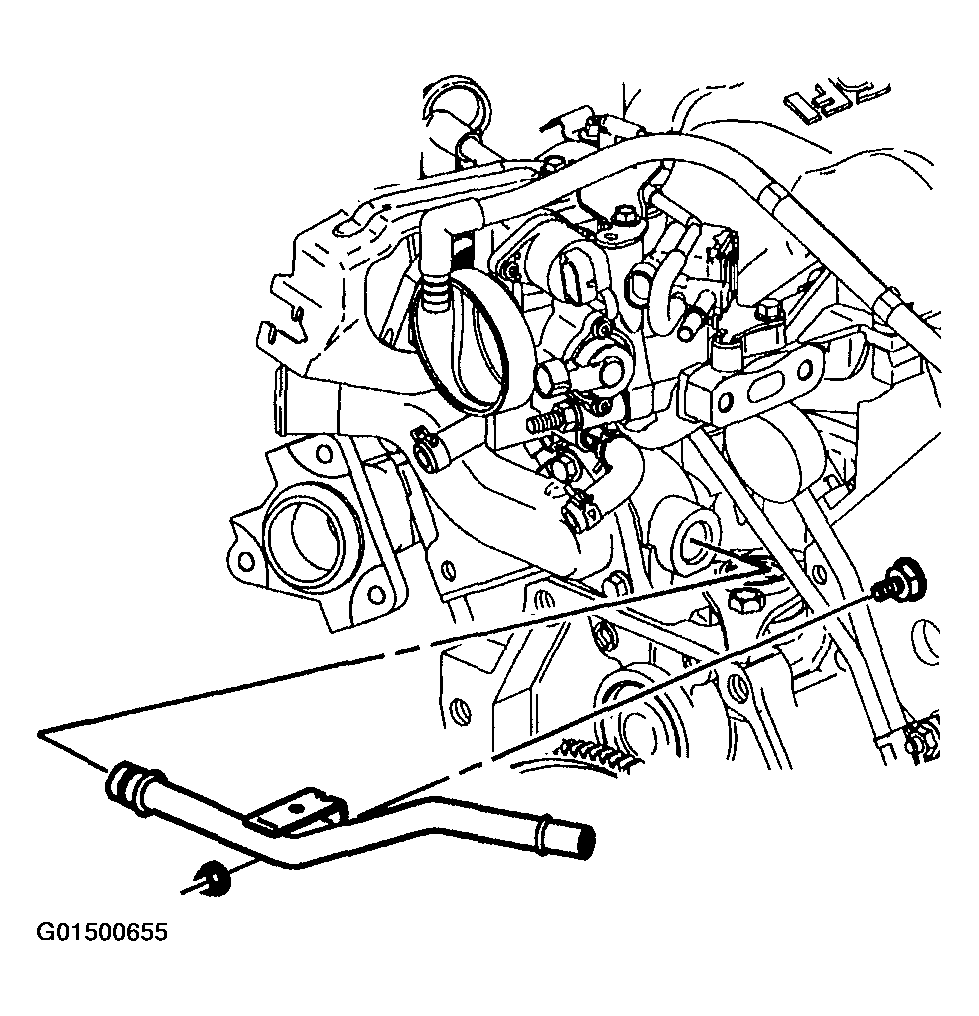

    Fig 3: Removing Heater Inlet Pipe
    G01500655Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

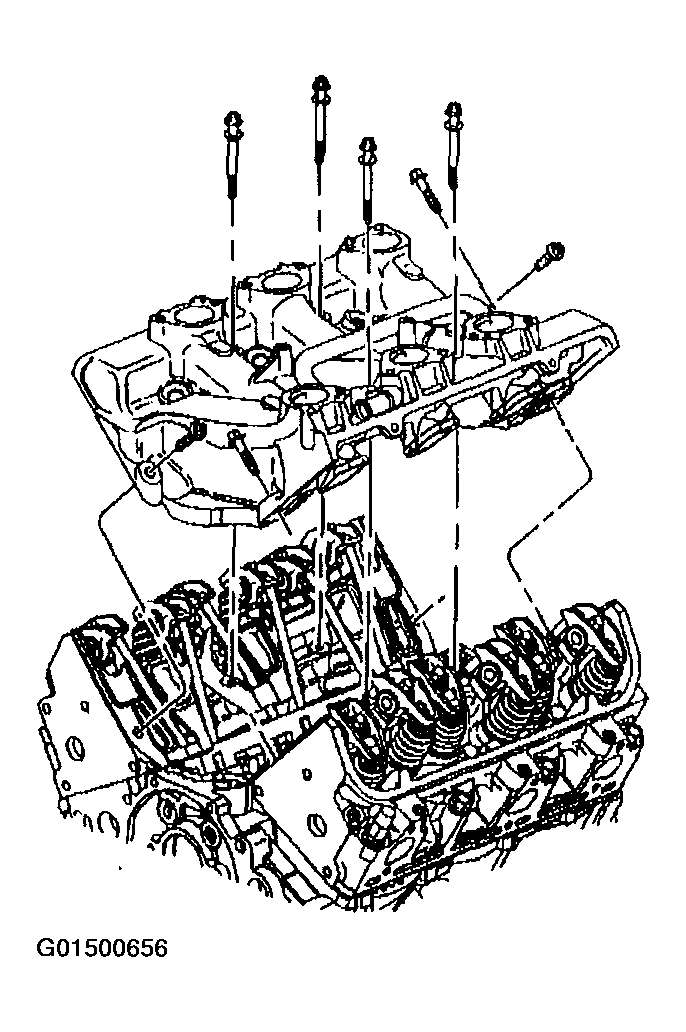

    Fig 4: Removing Lower Intake Manifold
    G01500656Courtesy of GENERAL MOTORS CORP.
