Engine Mount Strut and Engine Lift Bracket Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut and lift bracket.
  2. Install the engine mount strut and lift bracket bolts.

    Tighten

    Tighten the engine mount strut and lift bracket bolts to 70 N.m (52 lb ft).

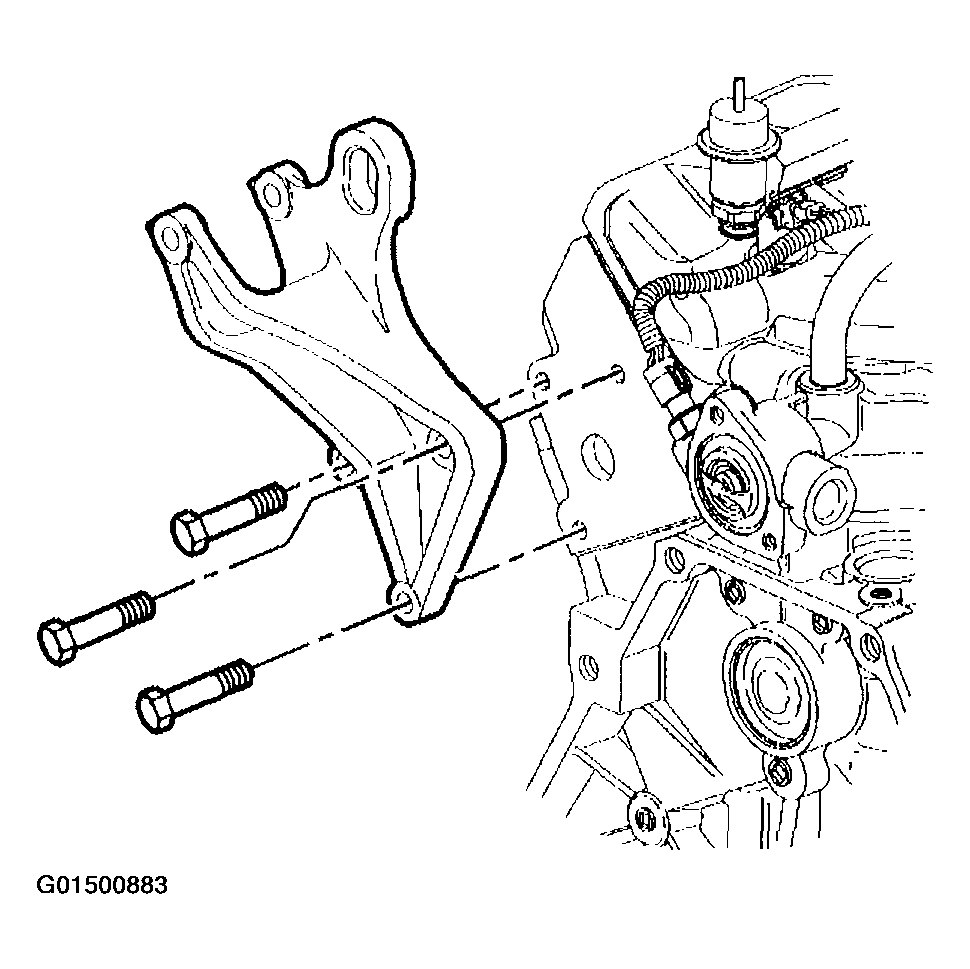

    Fig 1: Installing Engine Mount Strut And Lift Bracket
    G01500883Courtesy of GENERAL MOTORS CORP.
