Engine Lift Bracket and Generator Bracket Removal

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator bracket bolts (1-3).
  2. Remove the generator bracket.
  3. Remove the front engine lift bracket.

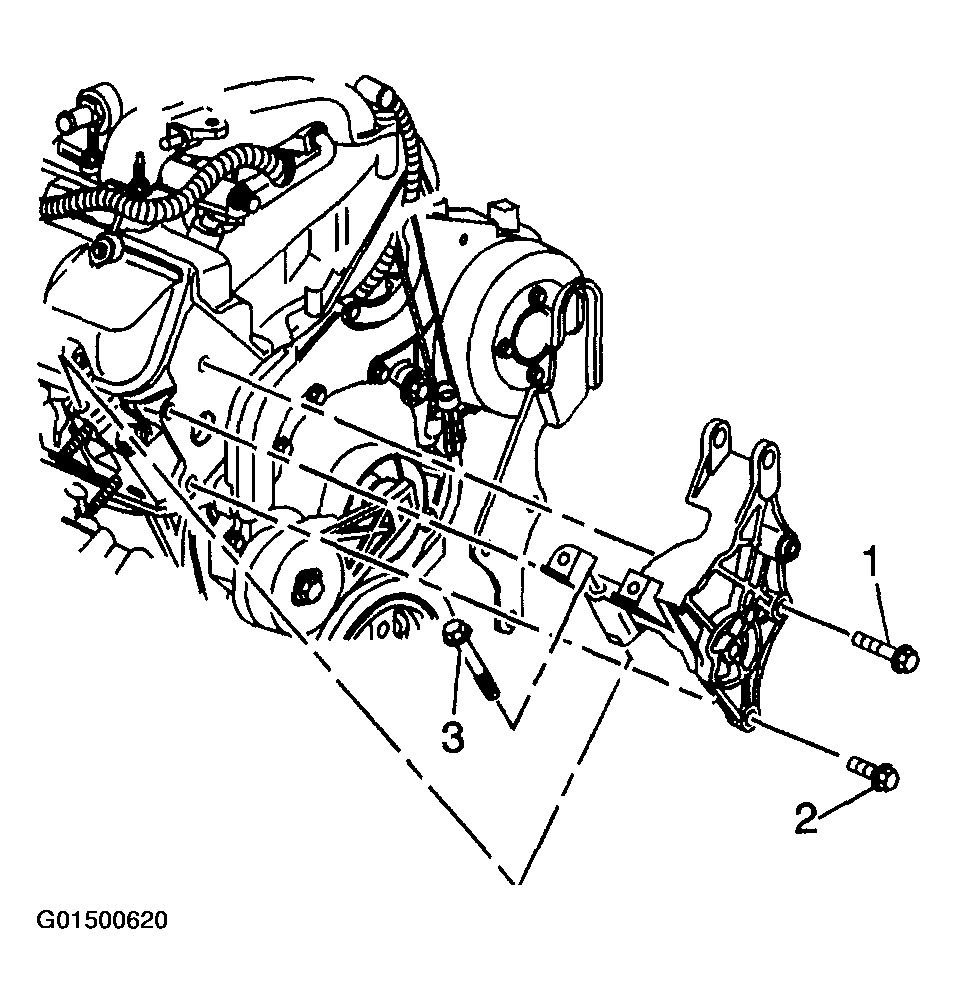

    Fig 1: Removing Front Engine Lift Bracket And Generator Bracket
    G01500620Courtesy of GENERAL MOTORS CORP.
