Engine Lift Bracket and Generator Bracket Installation

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front engine lift hook.
  2. Install the generator bracket.
  3. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts in sequence (1,2, 3) to 50 N.m (37 lb ft).

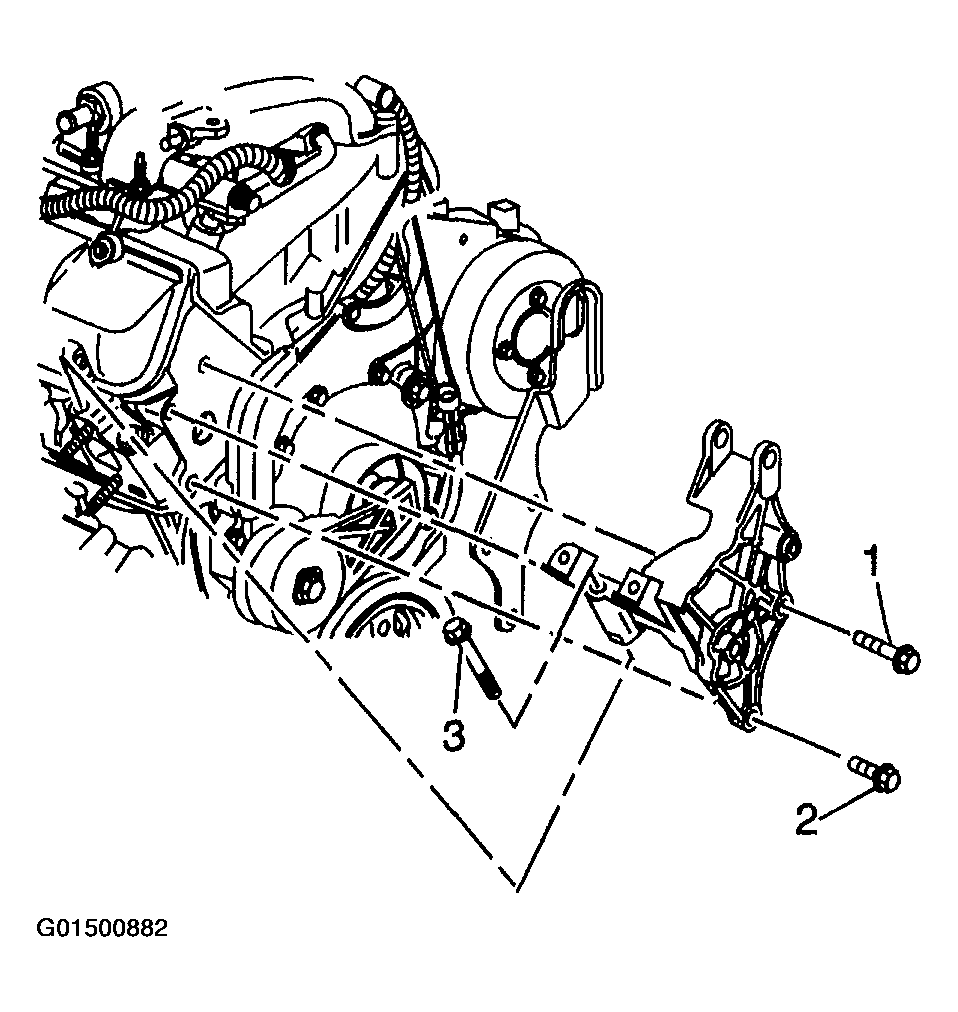

    Fig 1: Installing Front Engine Lift Hook And Generator Bracket
    G01500882Courtesy of GENERAL MOTORS CORP.
