Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Remove the cylinder head.

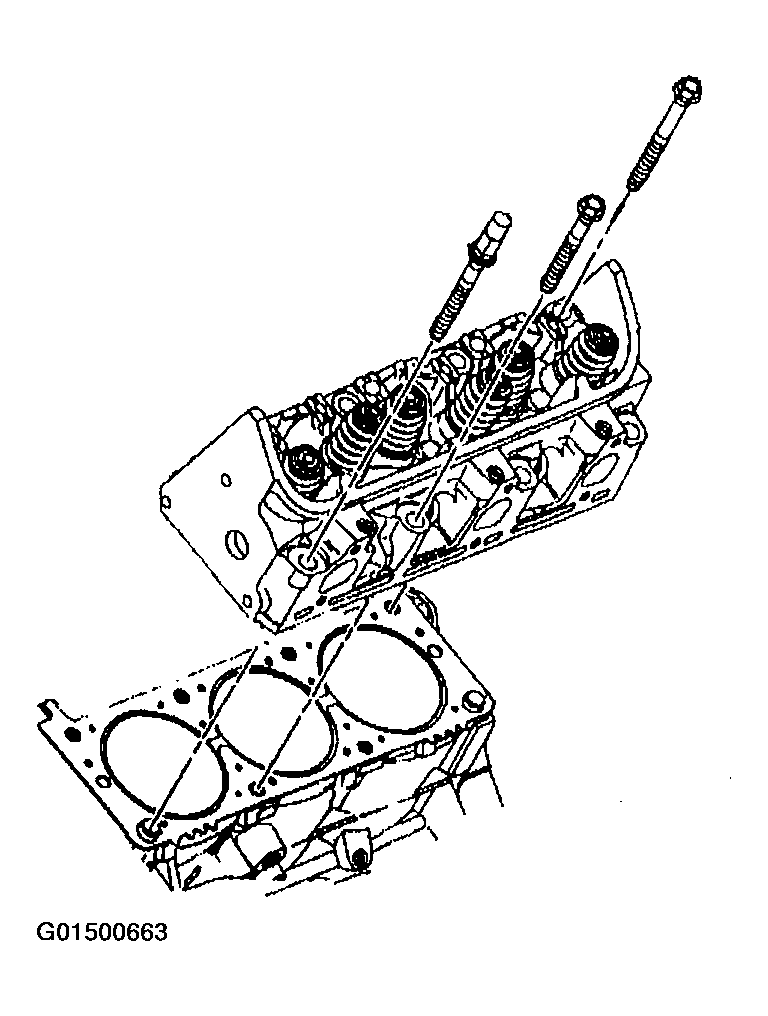

    Fig 1: Removing Left Cylinder Head
    G01500663Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head gasket.
  4. Remove the dowel pins - cylinder head locator, if required.

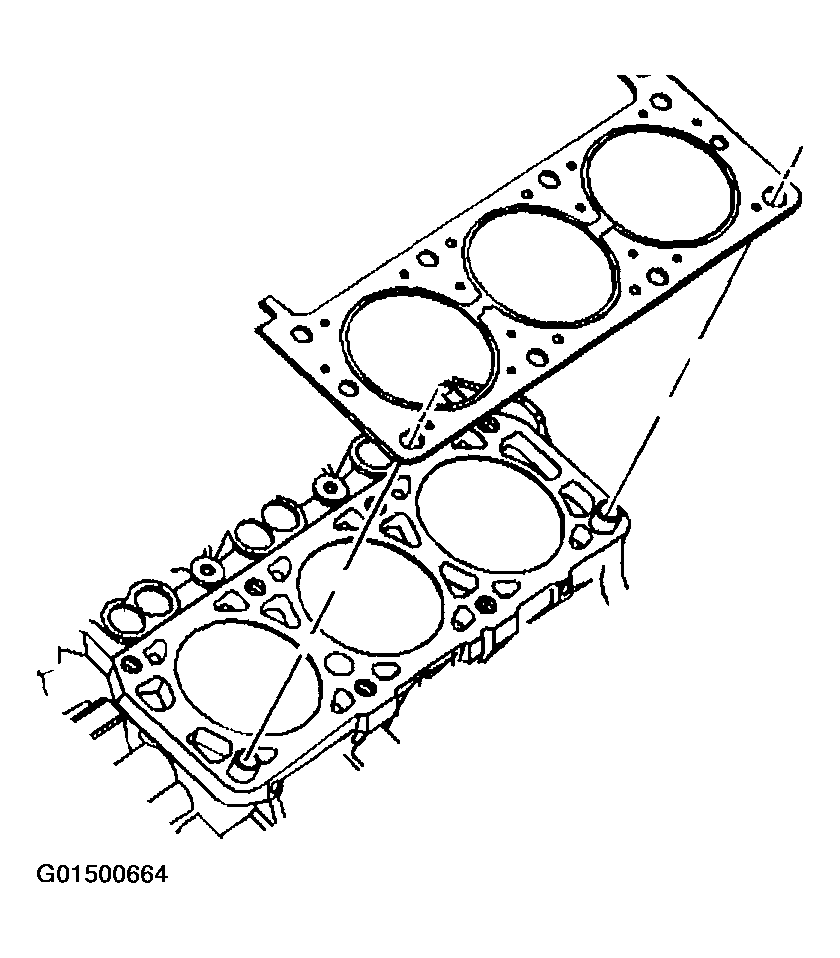

    Fig 2: Removing Left Cylinder Head Gasket
    G01500664Courtesy of GENERAL MOTORS CORP.
