Bearing Selection

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Measure the bearing clearance to determine the correct replacement bearing insert size. There are two methods to measure bearing clearance. Method A gives more reliable results and is preferred.

Method A yields measurement from which the bearing clearance can be computed.
Method B yields the bearing clearance directly. Method B does not give any indication of bearing run-out.

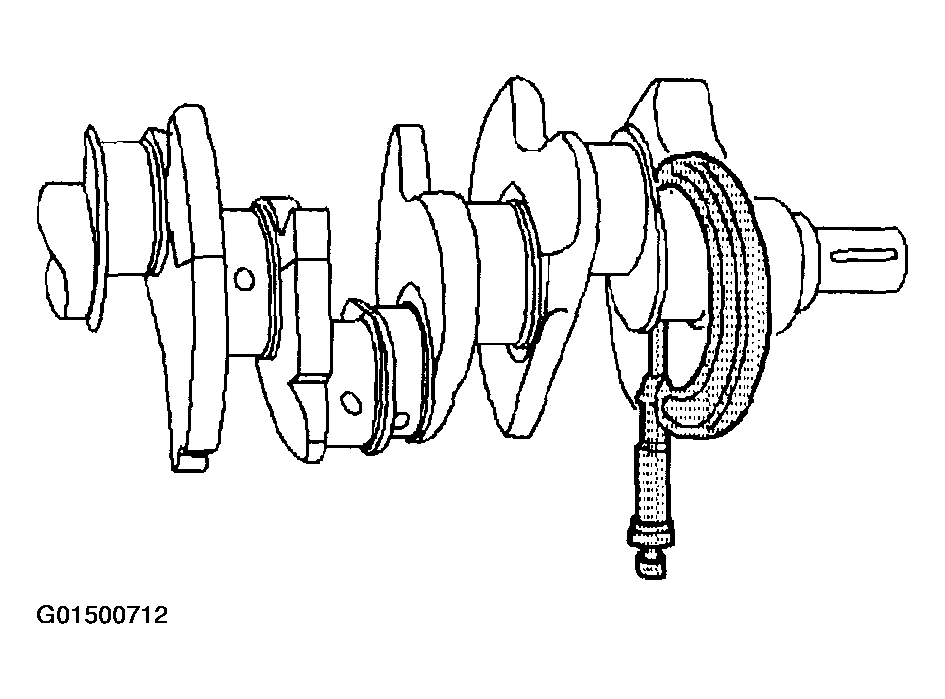

Fig 1: Measuring Bearing Clearance Using Micrometer
Courtesy of GENERAL MOTORS CORP.
