Tools Required

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

J 24420-C  Harmonic Balancer Puller

  1. Remove the crankshaft balancer retaining bolt and washer.

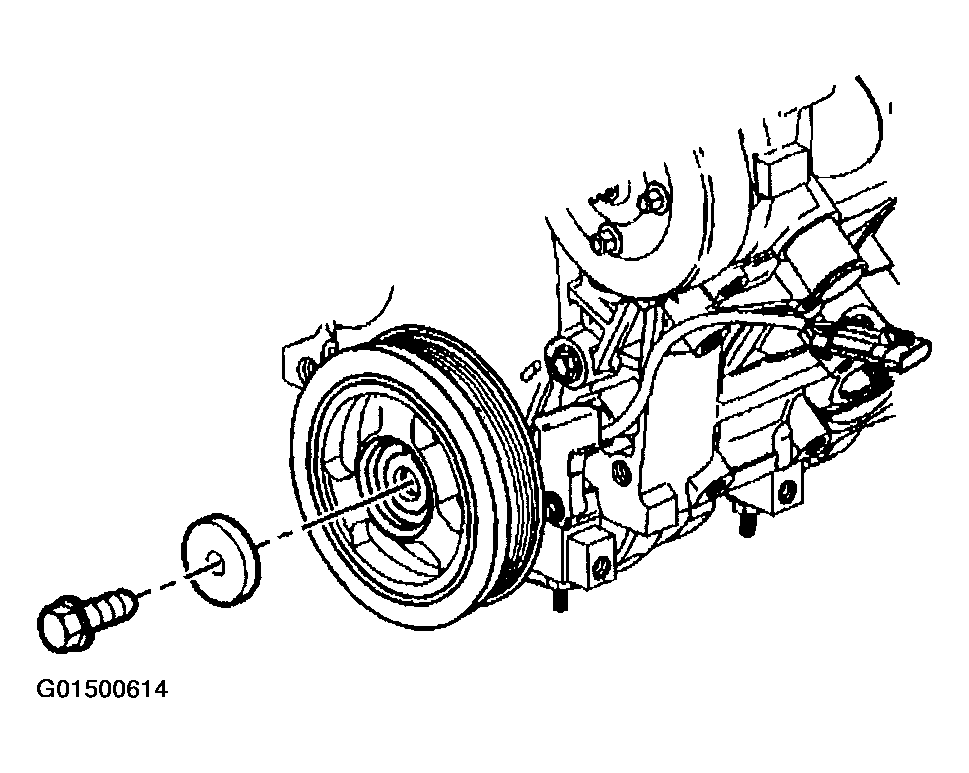

    Fig 1: Removing Crankshaft Balancer Retaining Bolt And Washer
    G01500614Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft balancer using the J 24420-C.

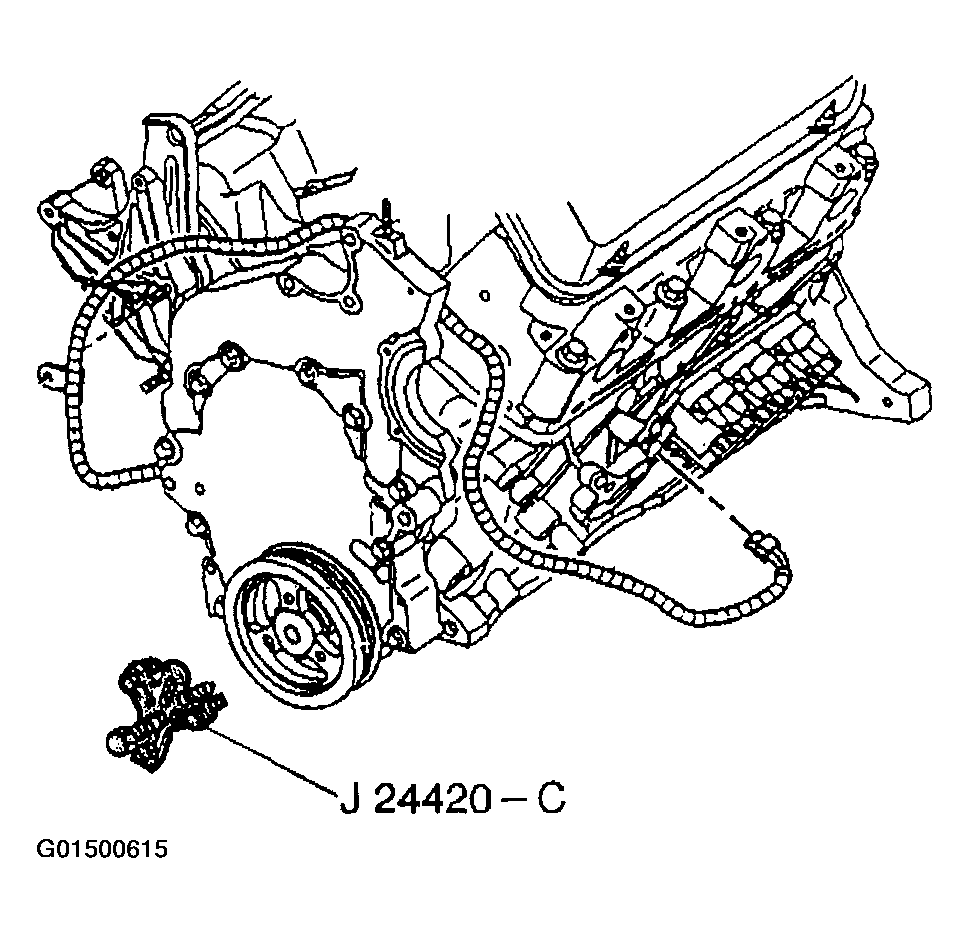

    Fig 2: Removing Crankshaft Balancer Using Harmonic Balancer Puller (J 24420-C)
    G01500615Courtesy of GENERAL MOTORS CORP.
