Air Injection Check Valve Removal

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove air injection vacuum hose.

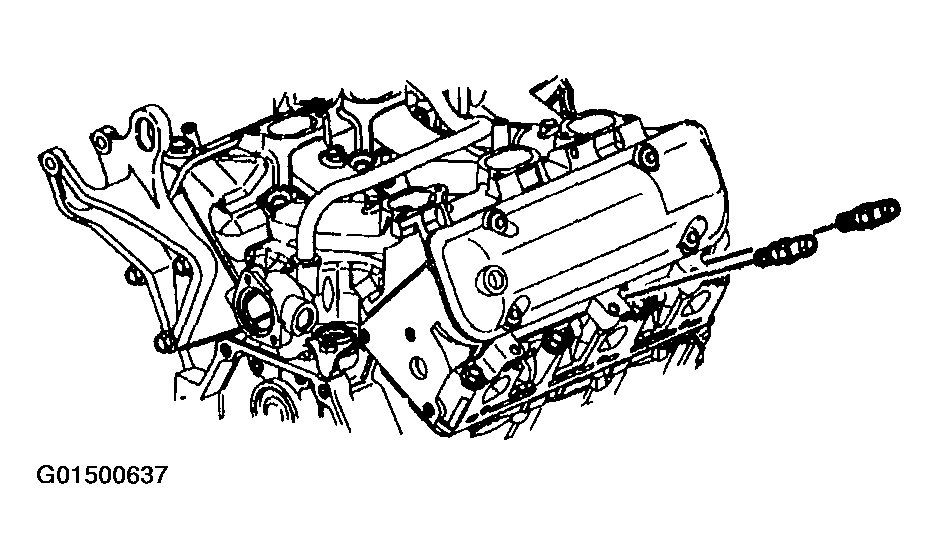

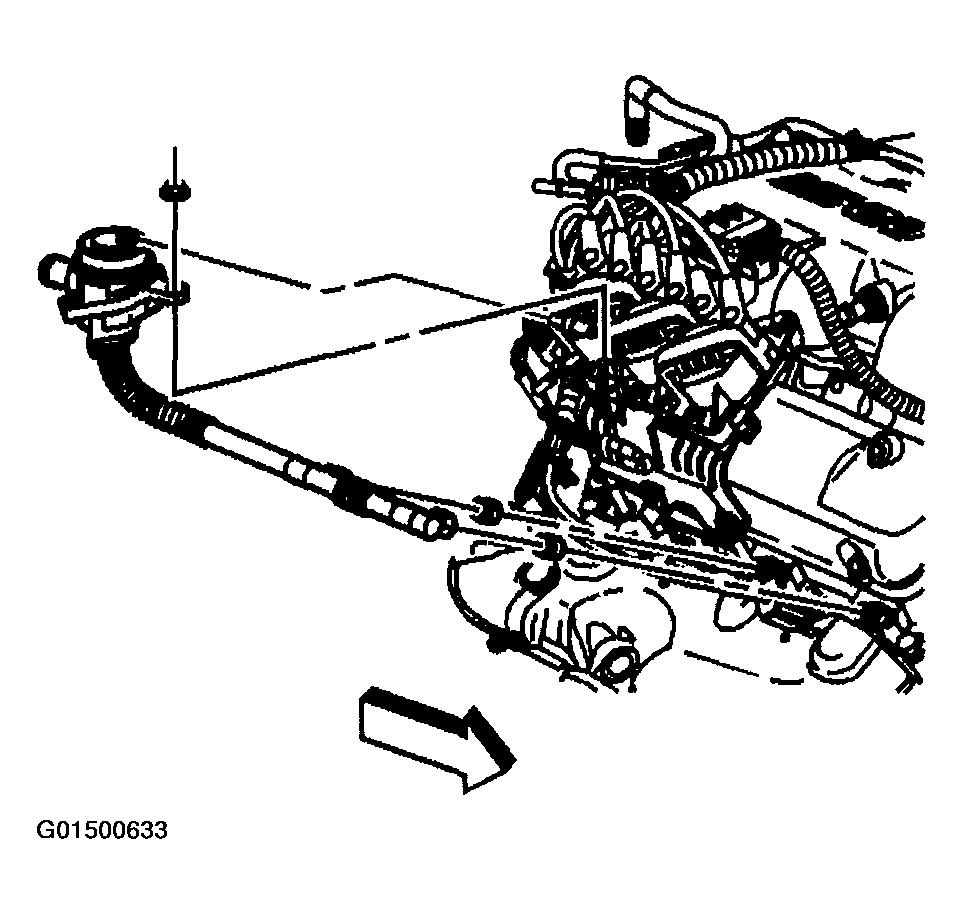

Fig 1: Removing Air Injection Vacuum Hose
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe, clamps, and bolt.

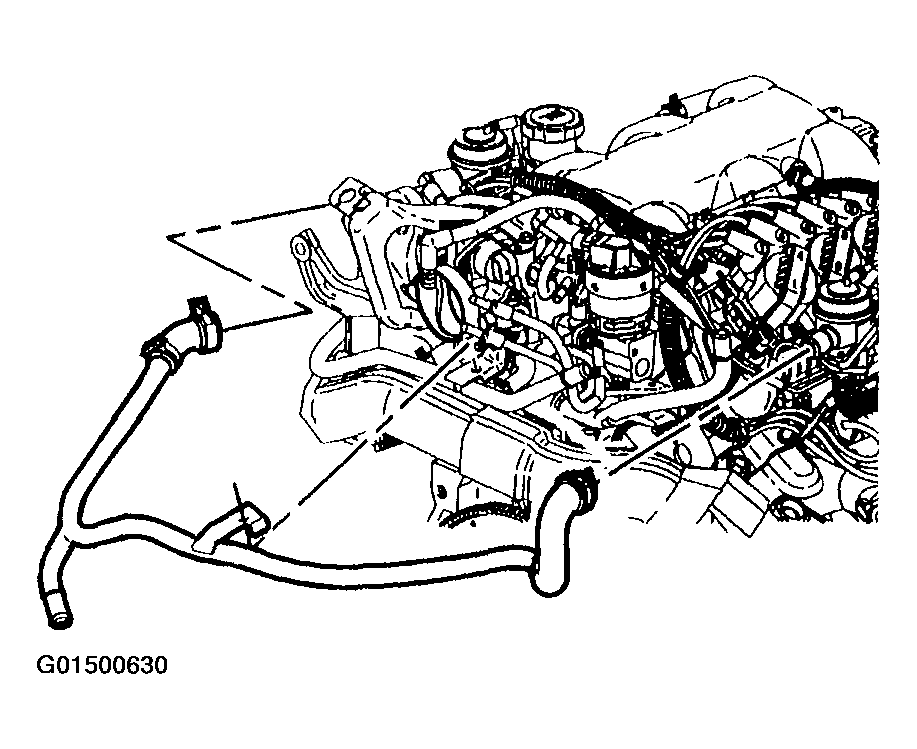

Fig 2: Removing Air Injection Check Valve Pipe
Courtesy of GENERAL MOTORS CORP.
Remove air injection solenoid switch and bolt.

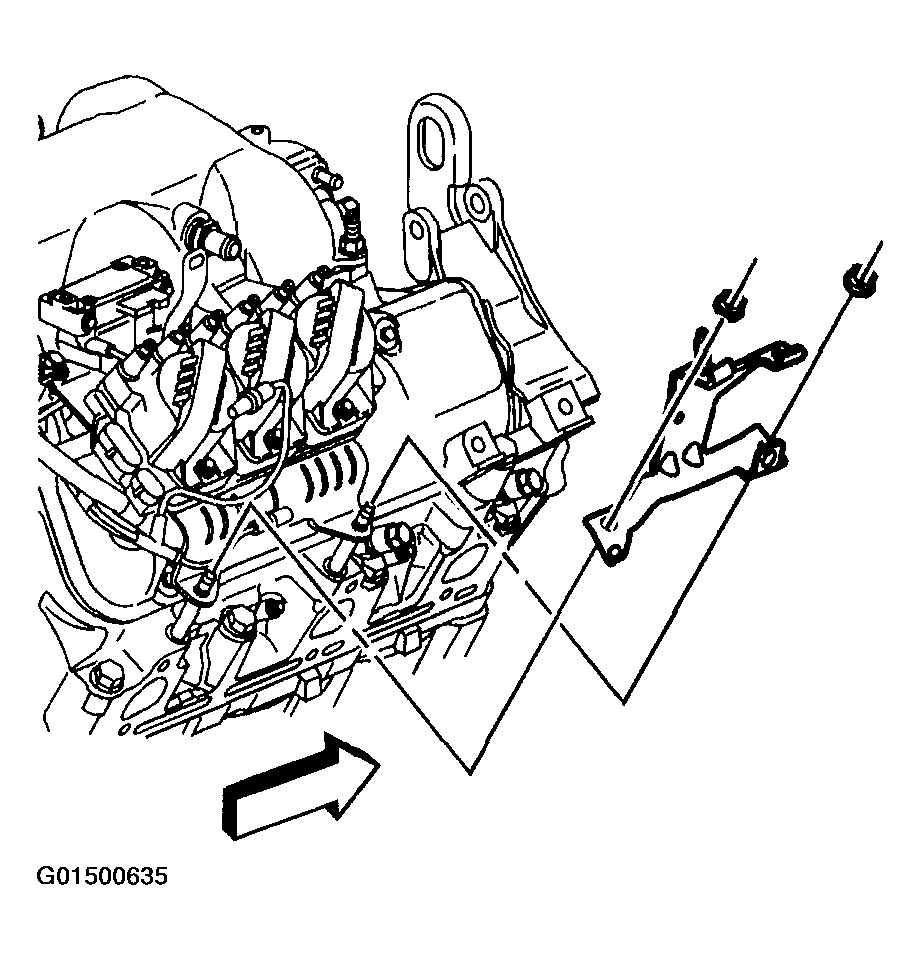

Fig 3: Removing Air Injection Solenoid Switch
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve front nuts.

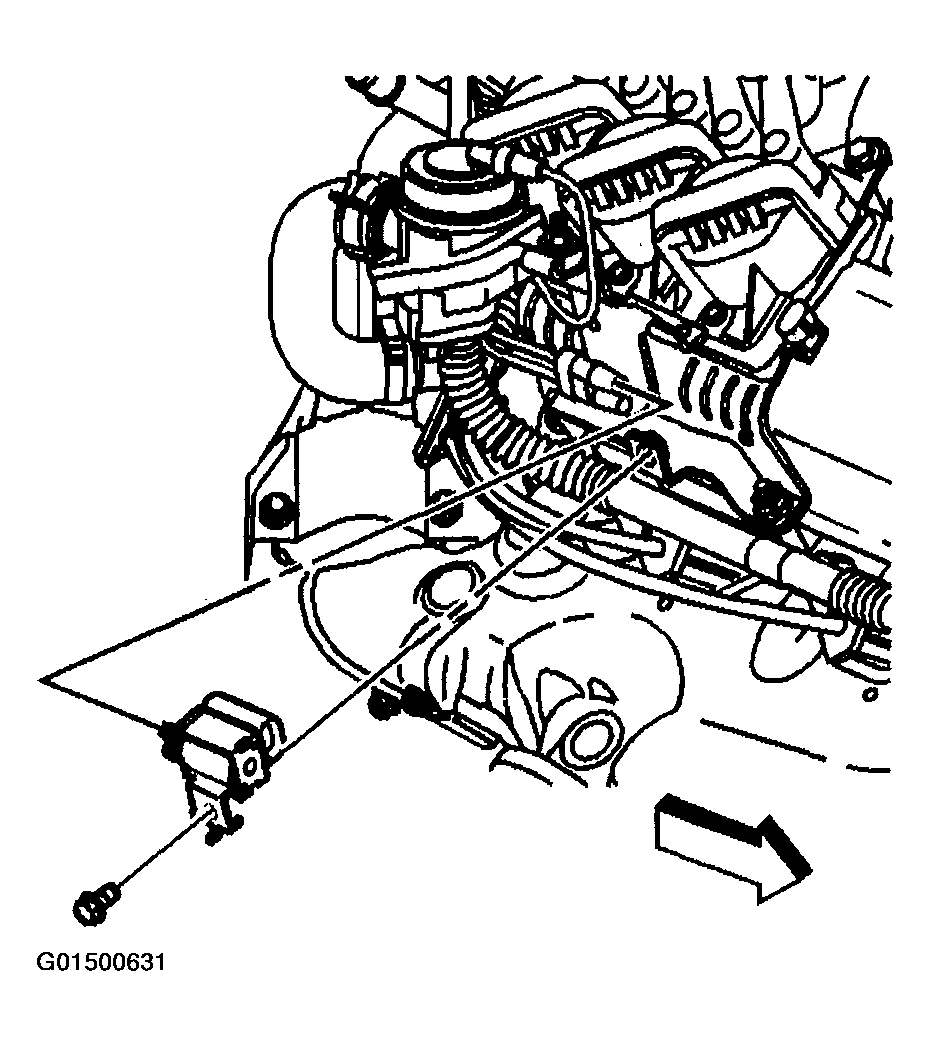

Fig 4: Removing Air Injection Check Valve Front Nuts
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve rear nuts.

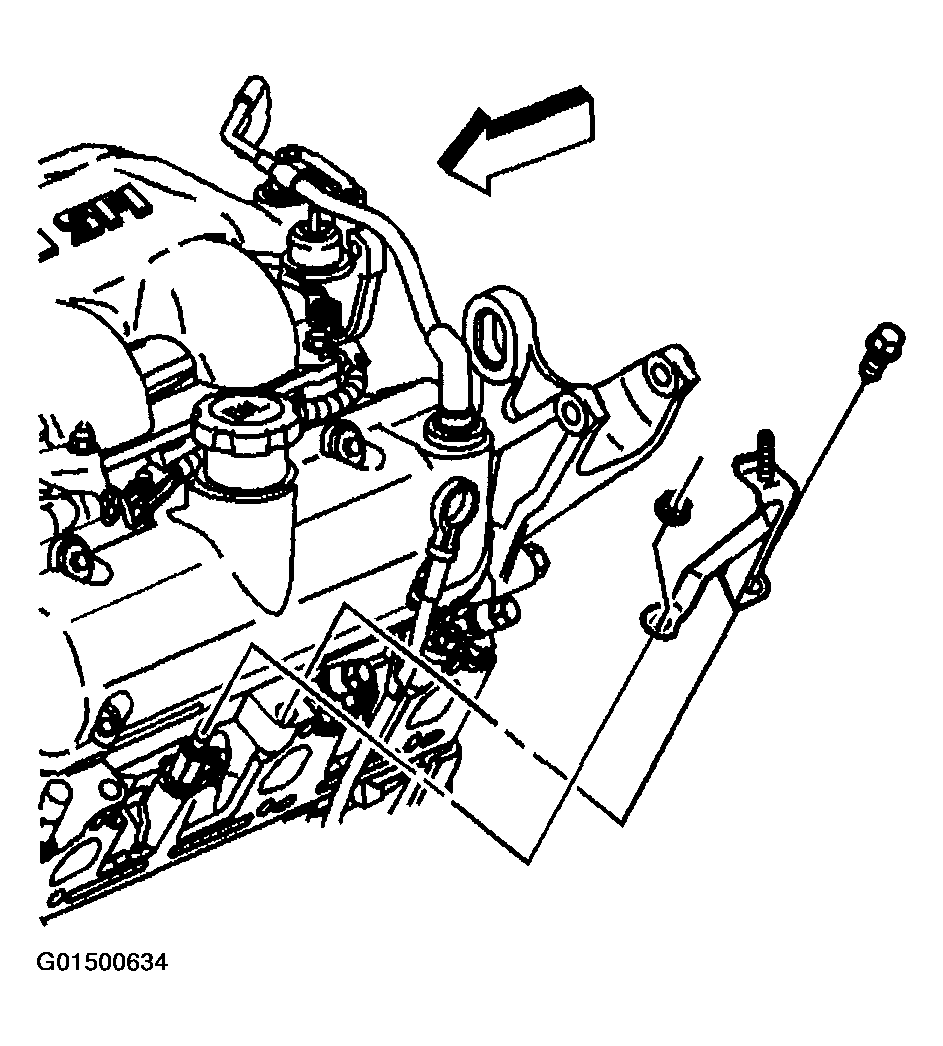

Fig 5: Removing Air Injection Check Valve Rear Nuts
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve front bracket and bolt.

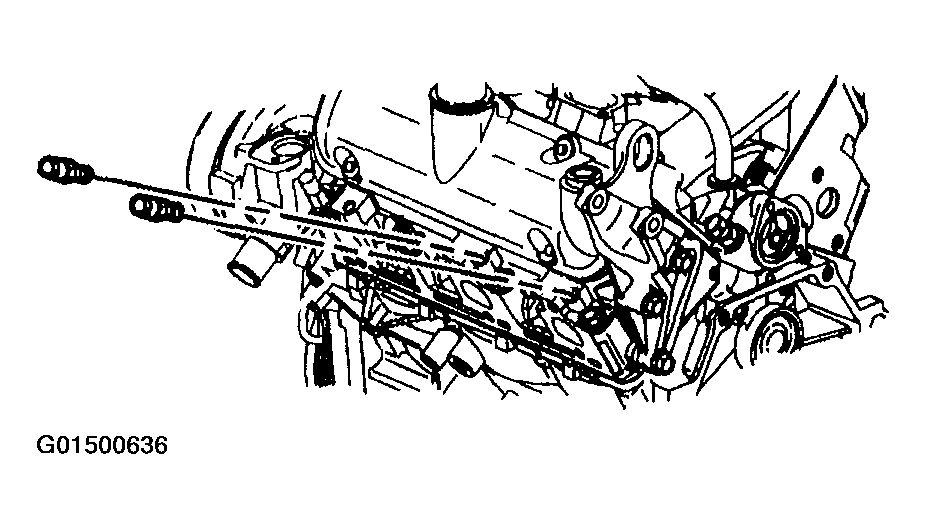

Fig 6: Removing Air Injection Check Valve Front Bracket
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve rear bracket and nuts.

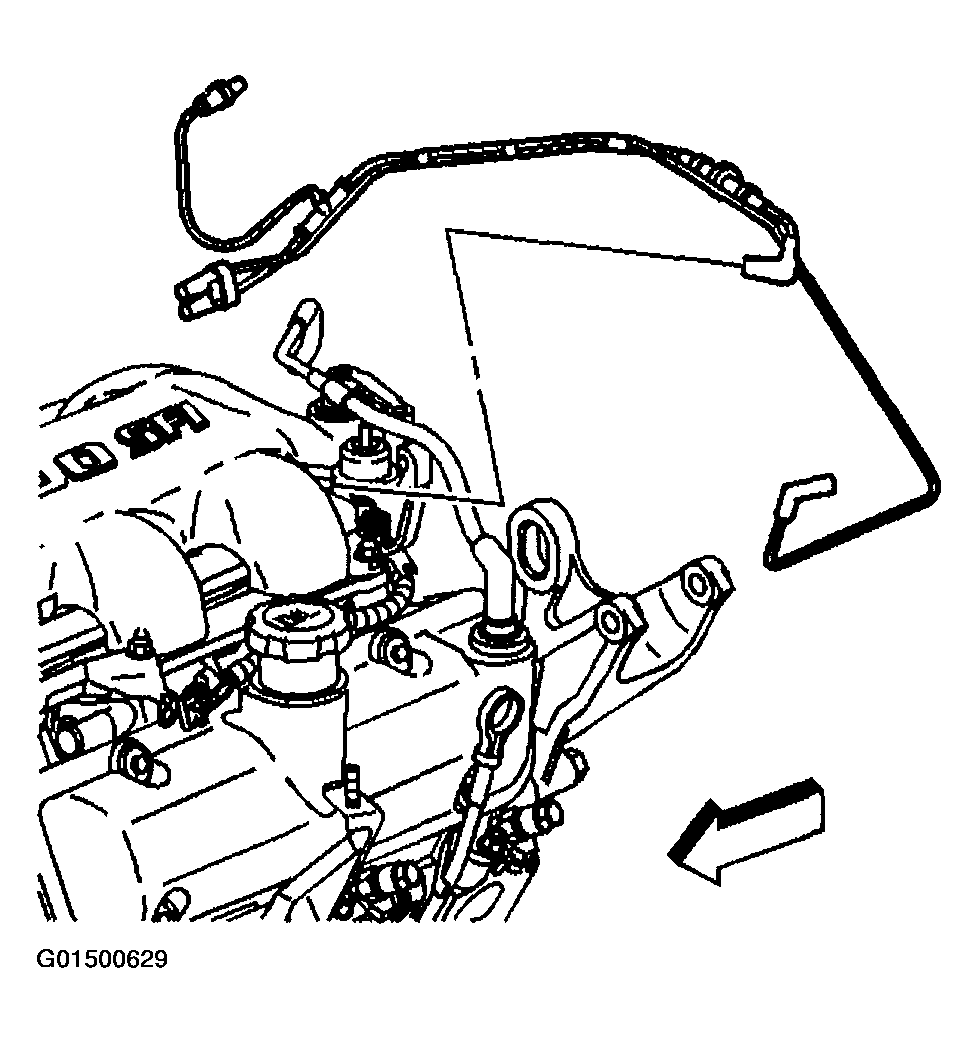

Fig 7: Removing Air Injection Check Valve Rear Bracket And Nuts
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe adapters, front.

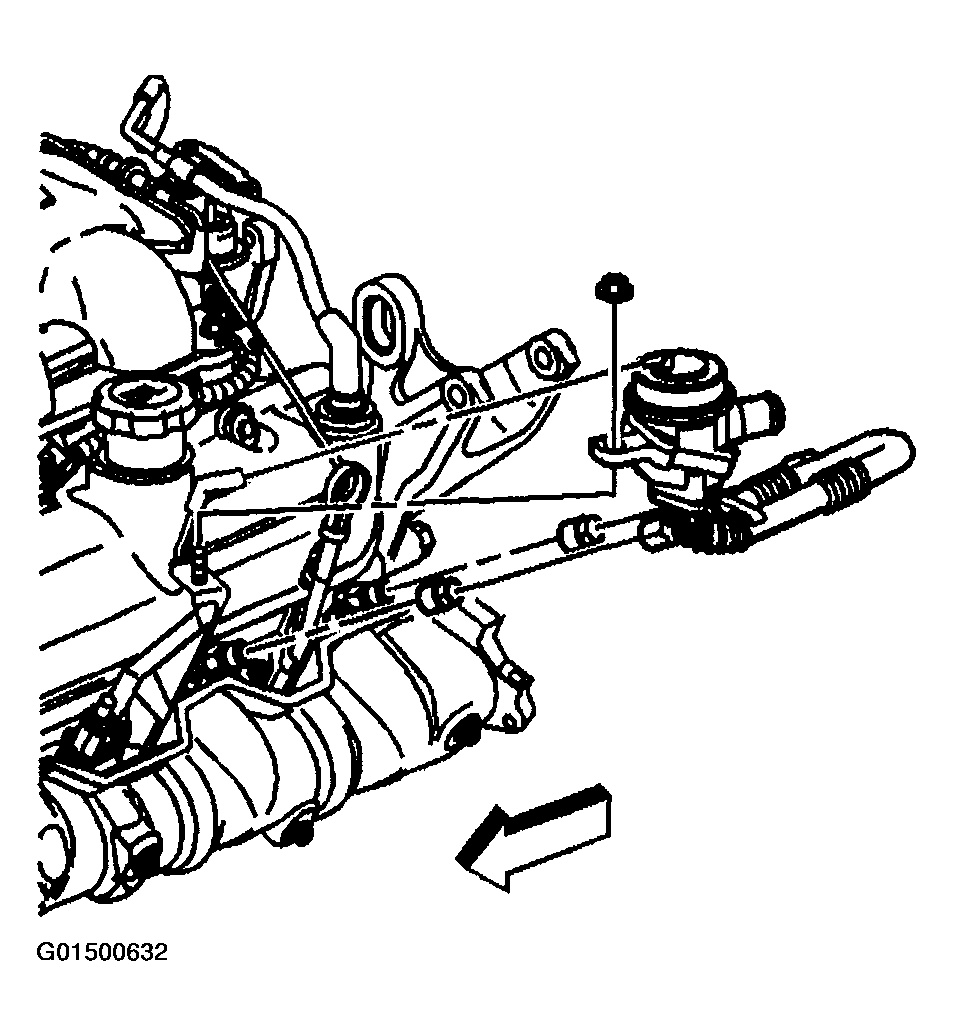

Fig 8: Removing Air Injection Check Valve Pipe Adapters, Front
Courtesy of GENERAL MOTORS CORP.
Remove air injection check valve pipe adapters, rear.

Fig 9: Removing Air Injection Check Valve Pipe Adapters, Rear
Courtesy of GENERAL MOTORS CORP.
