Base Engine Misfire without Internal Engine Noises

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

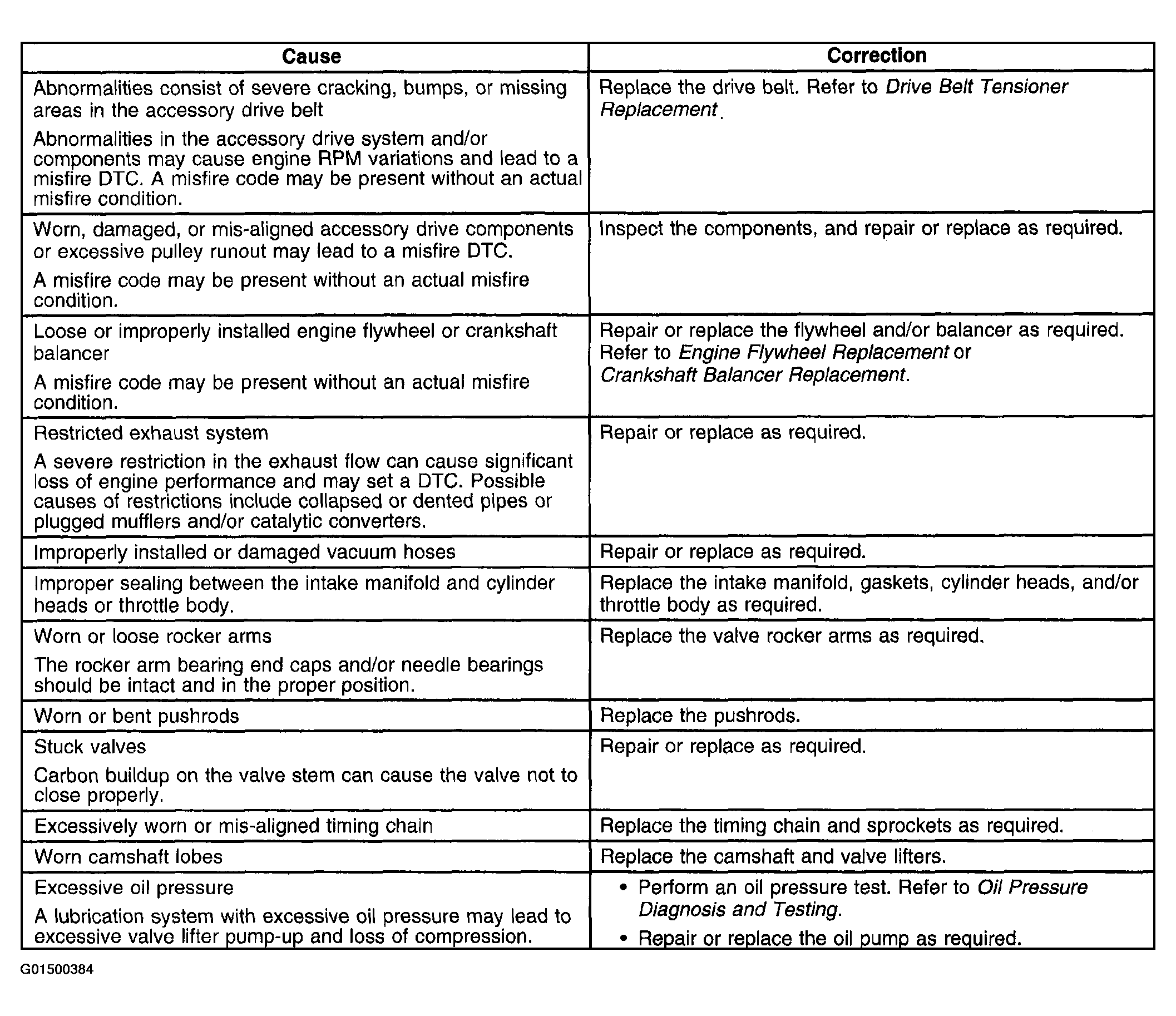

Fig 1: Base Engine Misfire Without Internal Engine Noises - Symptom Diagnostic Table (1 Of 2)
G01500384Courtesy of GENERAL MOTORS CORP.

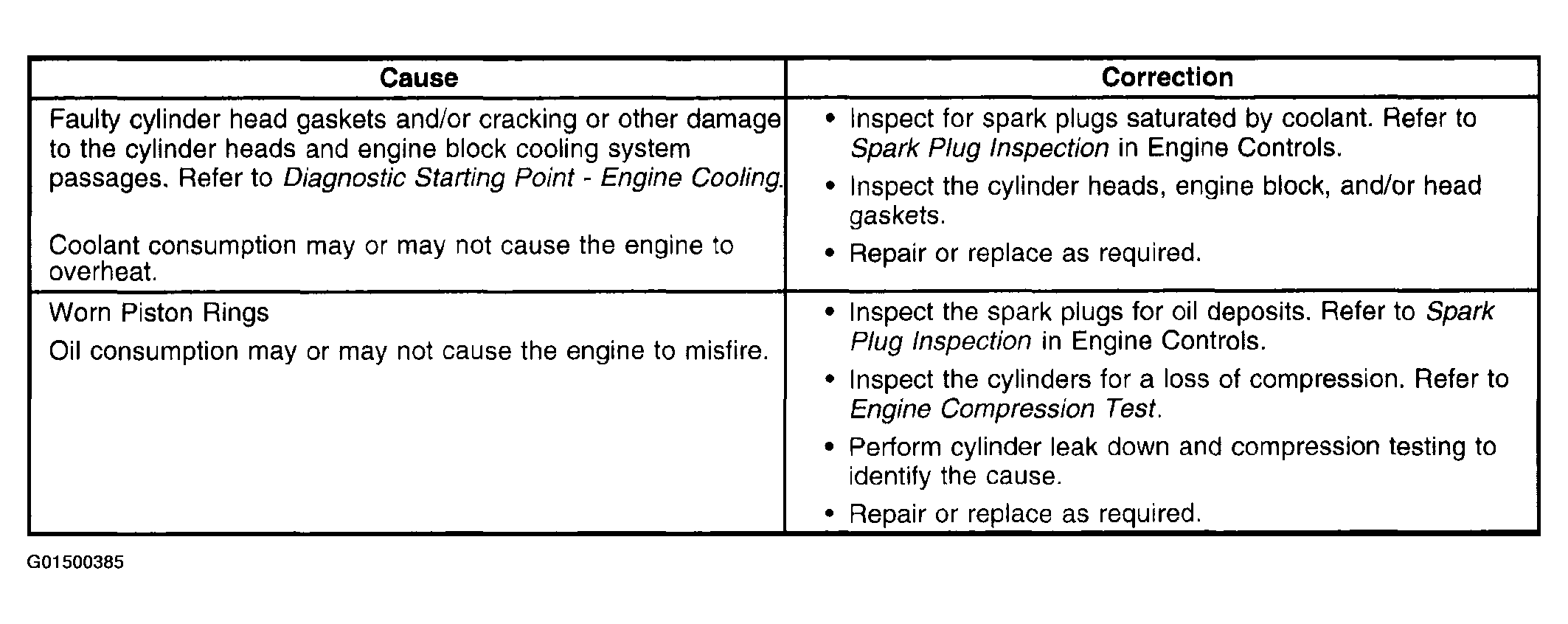

Fig 2: Base Engine Misfire Without Internal Engine Noises - Symptom Diagnostic Table (2 Of 2)
G01500385Courtesy of GENERAL MOTORS CORP.
