Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  2. Remove the aspirator hose mounting screw.
  3. Disconnect the aspirator hose from the aspirator duct adapter (1).
  4. Remove the aspirator hose from the HVAC module.

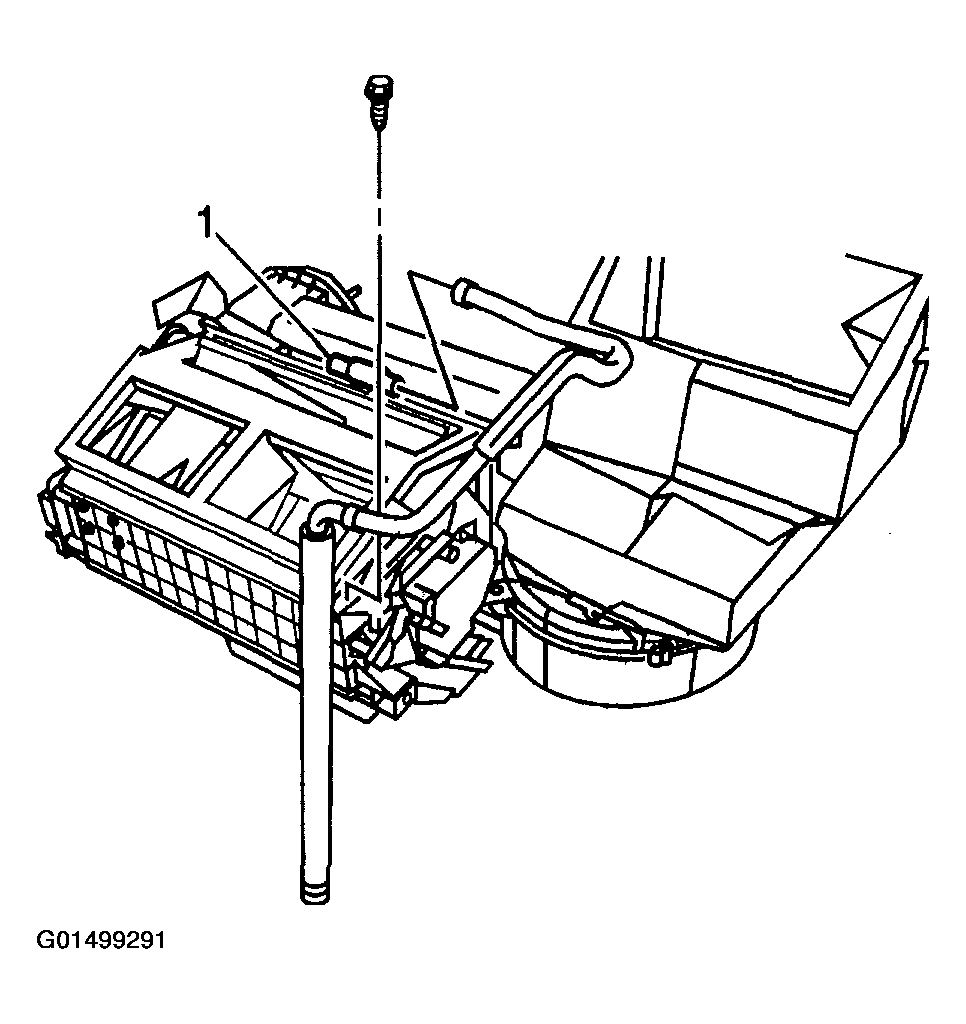

    Fig 1: Removing Aspirator Hose Mounting Screw And Hose
    G01499291Courtesy of GENERAL MOTORS CORP.
