Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the aspirator hose to the HVAC module.
  2. Install the aspirator hose retaining screw.

    Tighten

    Tighten the screw 0.9 N.m (8 Ib. in).

  3. Connect the aspirator hose to the aspirator duct adapter (1).
  4. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .

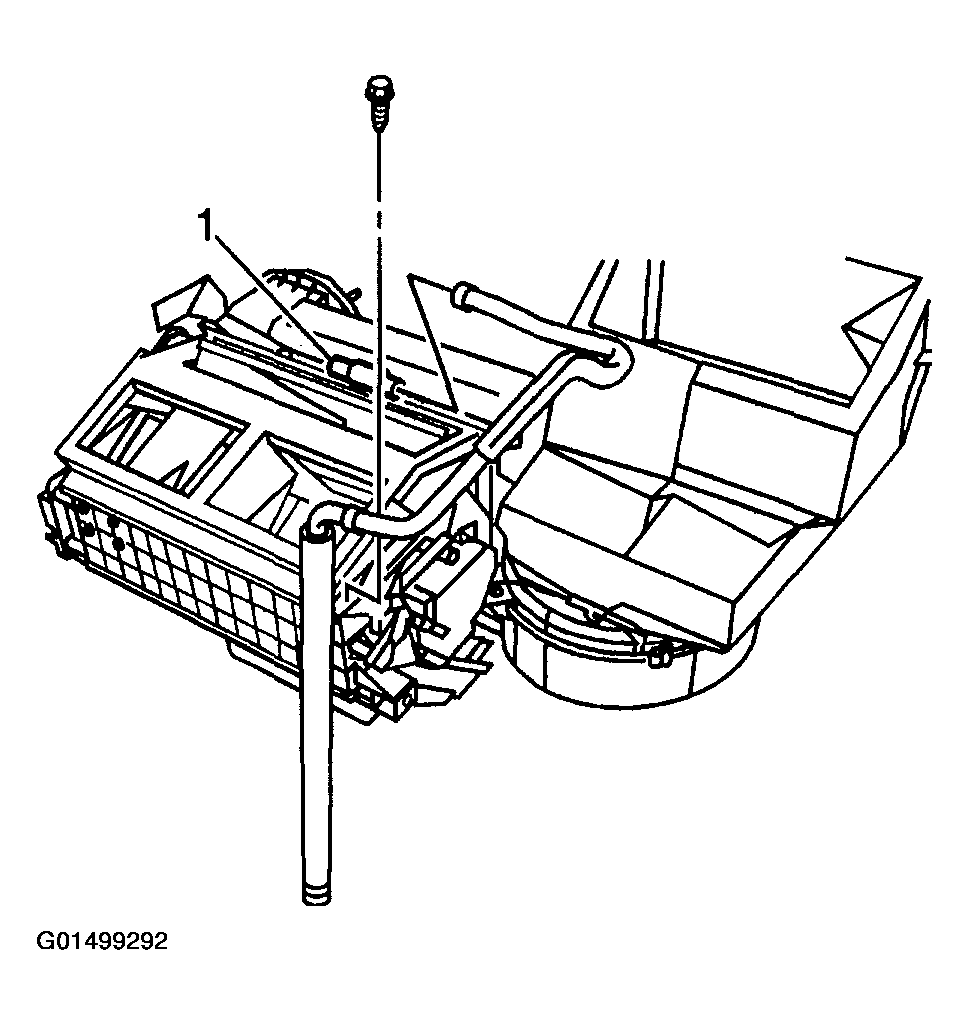

    Fig 1: Installing Aspirator Hose Mounting Screw And Hose
    G01499292Courtesy of GENERAL MOTORS CORP.
