Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ambient air temperature sensor on the wiring harness retainer.
  2. Install the wiring harness push-in retainer which secures the ambient air temperature sensor to the hood latch support.
  3. Connect the electrical connector to the ambient air temperature sensor.

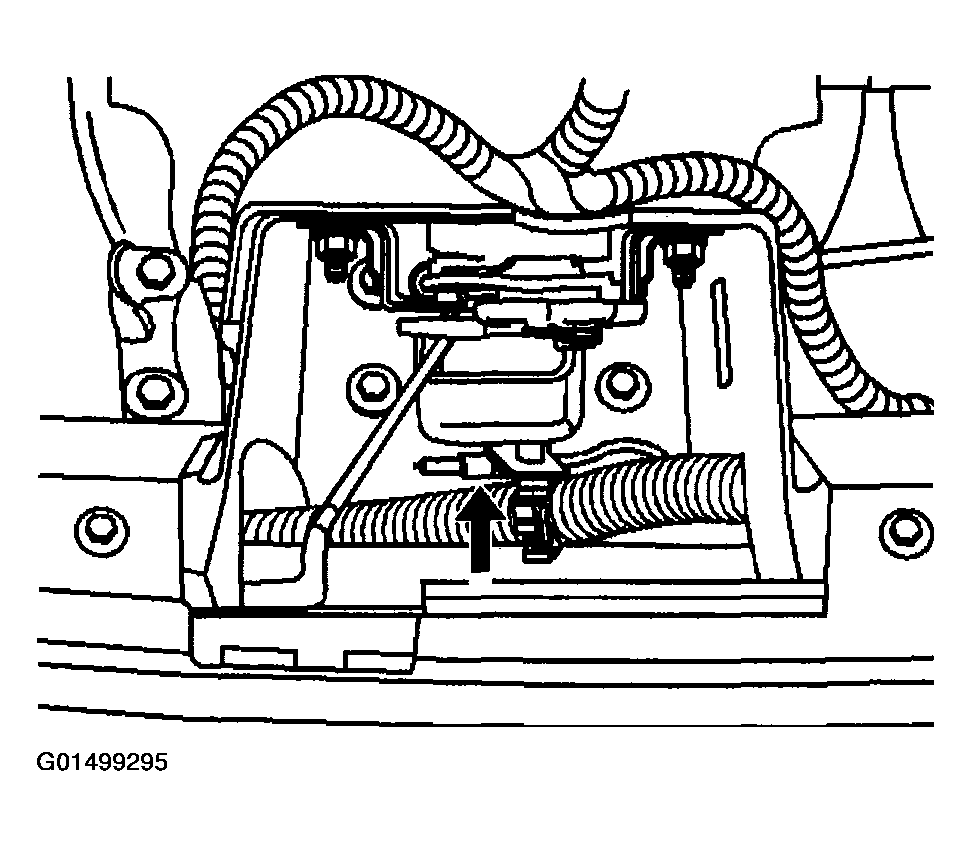

    Fig 1: Connecting Electrical Connector To Ambient Air Temperature Sensor
    G01499295Courtesy of GENERAL MOTORS CORP.
