Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right hand temperature actuator.
  2. Install the right hand temperature actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 Ib. in).

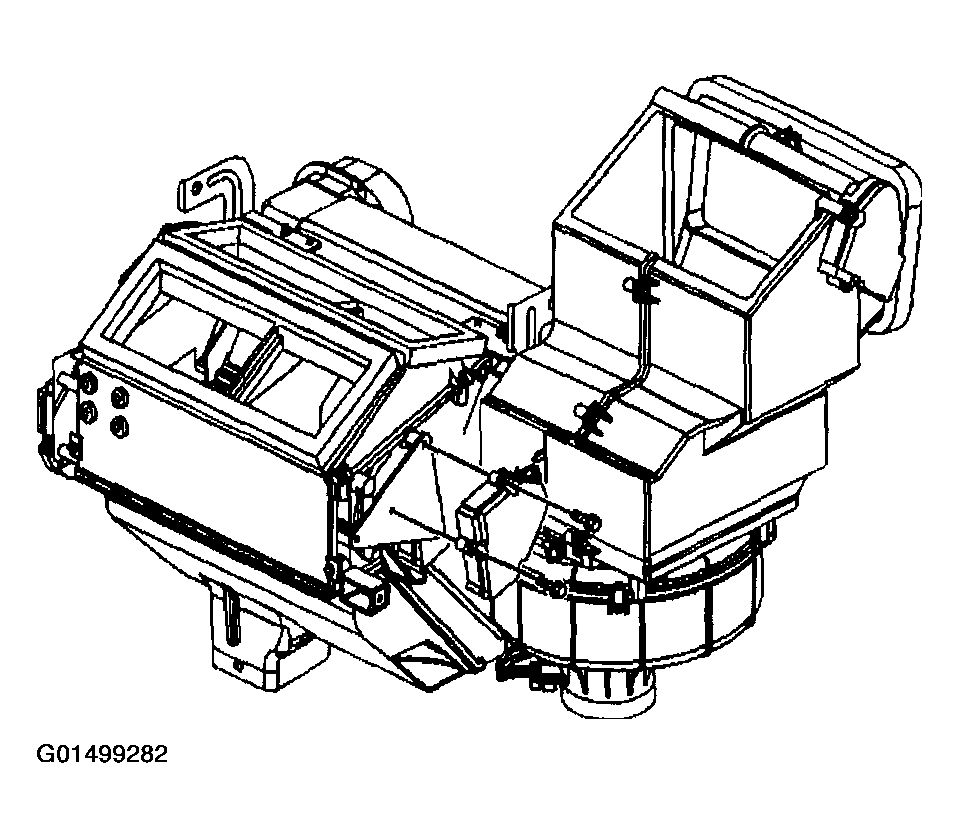

    Fig 1: Installing Right Hand Temperature Actuator Mounting Screw
    G01499282Courtesy of GENERAL MOTORS CORP.
  3. Connect the right hand temperature actuator electrical connector.
    Fig 2: Connecting Right Hand Temperature Actuator Electrical Connector
    G01499283Courtesy of GENERAL MOTORS CORP.

    Important:  Align the pin on the right hand air temperature actuator with the slot in the right hand temperature door lever.

  4. Install the right hand temperature lever (1) to the right hand temperature door.
  5. Connect the right hand temperature door lever spring (2) to the right hand temperature door lever (1) and HVAC module case.
  6. Install the I/P compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P) .

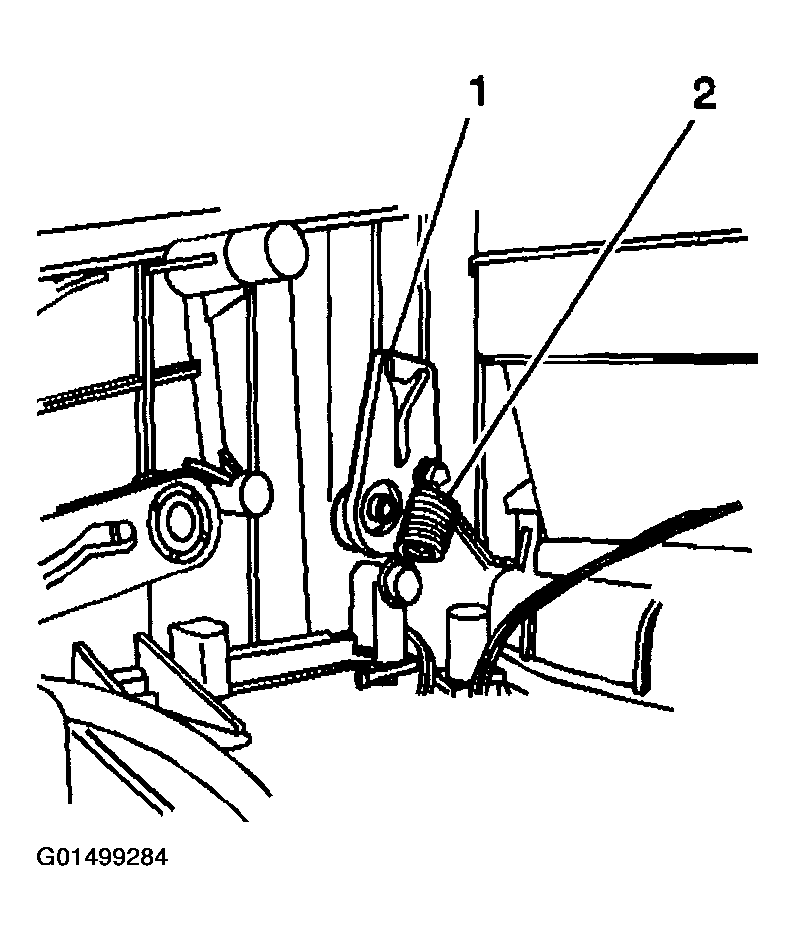

    Fig 3: Connecting Right Hand Temperature Door Lever Spring
    G01499284Courtesy of GENERAL MOTORS CORP.
