WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

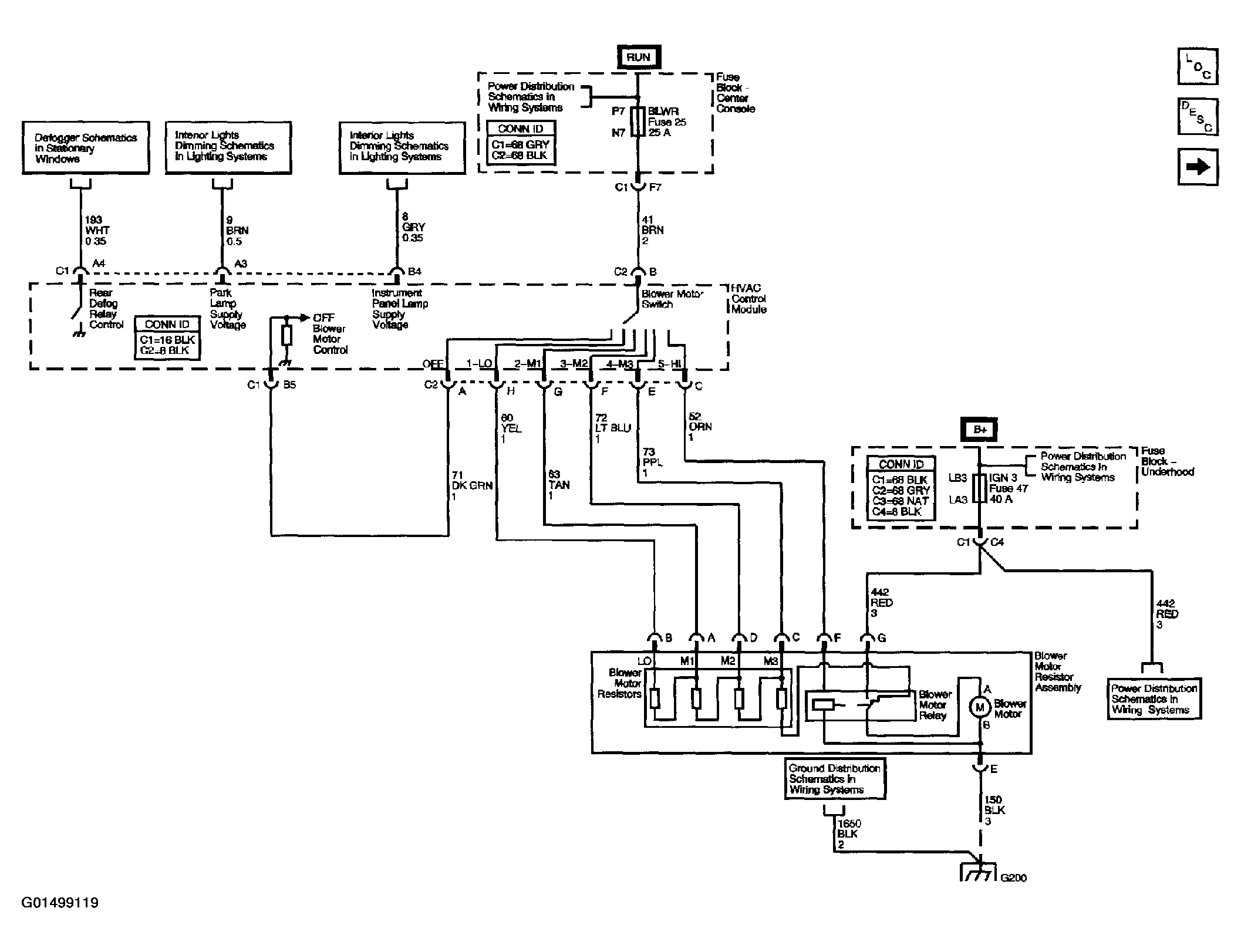

Fig 1: HVAC Blower Controls Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

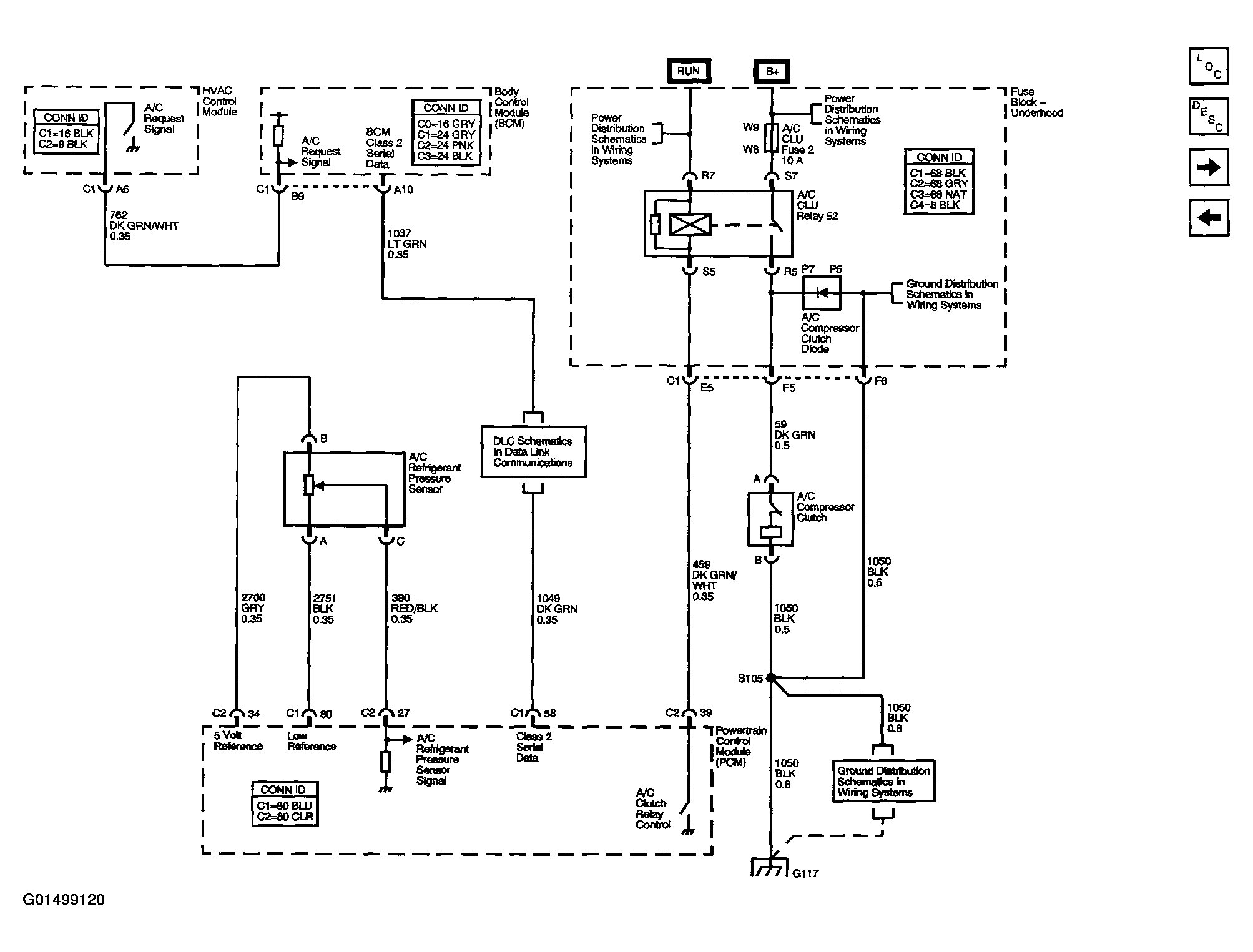

Fig 2: HVAC Compressor Control Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

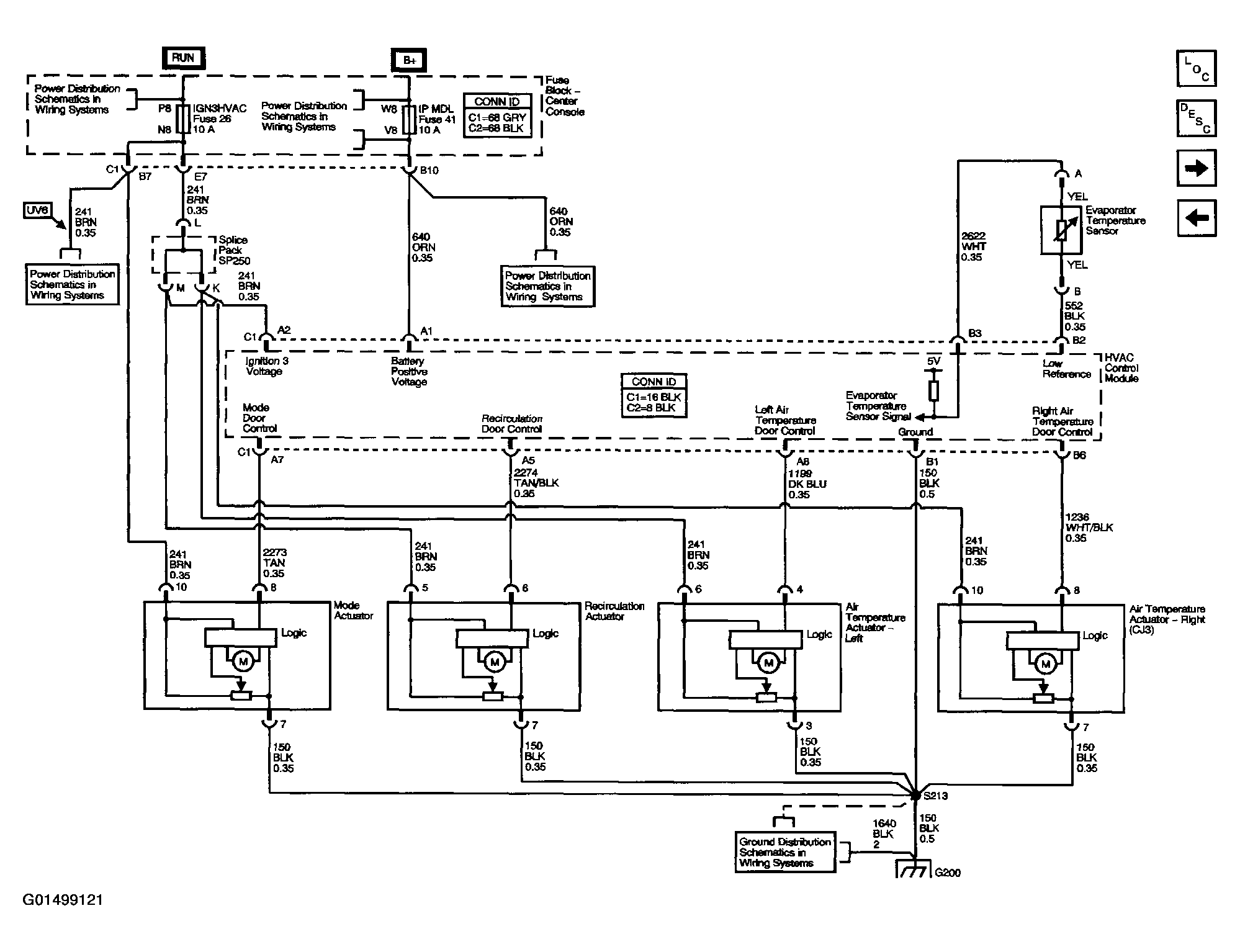

Fig 3: HVAC Schematics Air Delivery & Temperature Control Wiring Diagram
