Symptom List
WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Refer to one of the following symptom diagnostic procedures:
- HVAC COMPRESSOR CLUTCH DOES NOT ENGAGE
- HVAC COMPRESSOR CLUTCH DOES NOT DISENGAGE
- BLOWER MOTOR ALWAYS ON

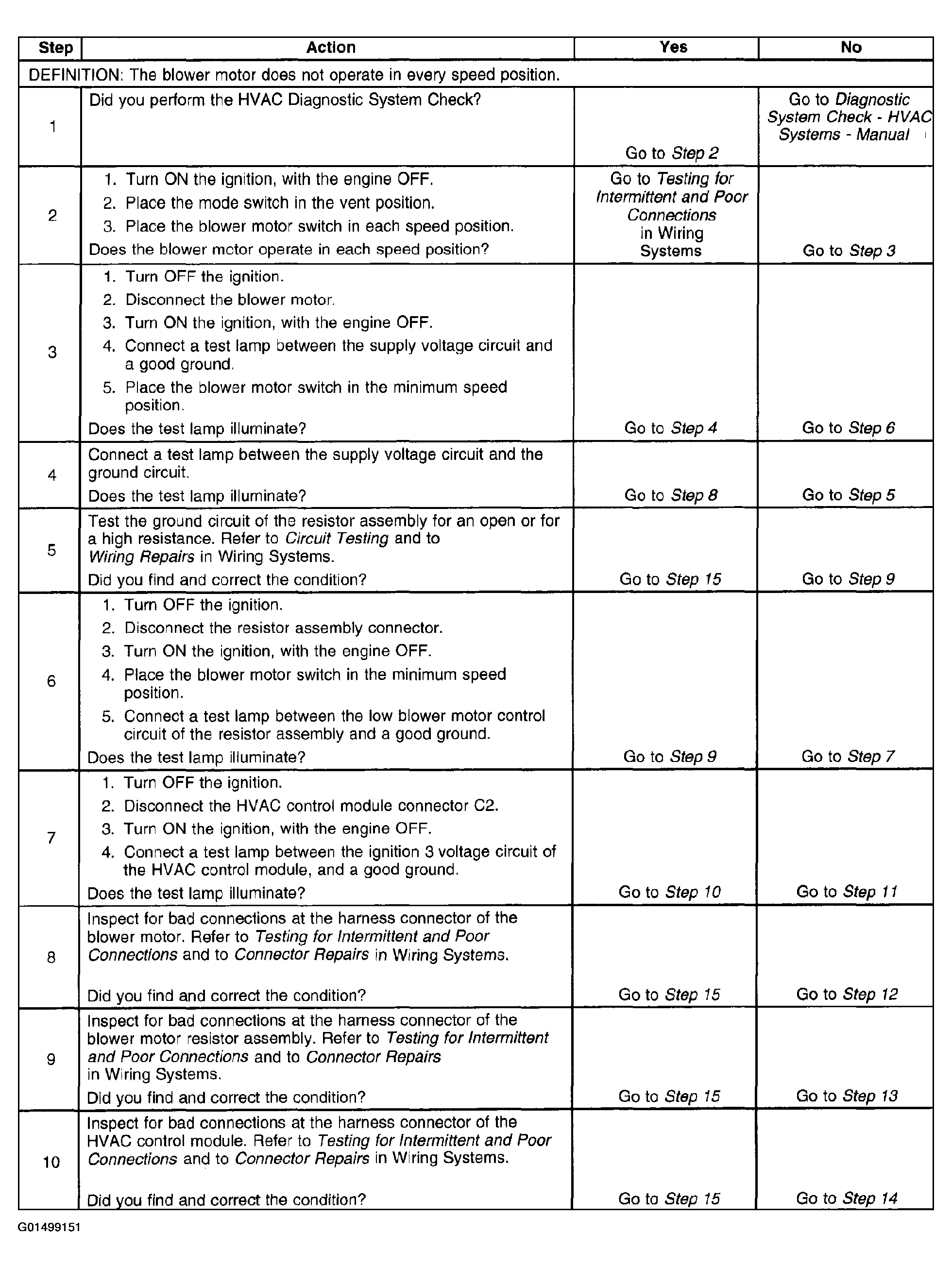

- Blower Motor Inoperative, see Figure

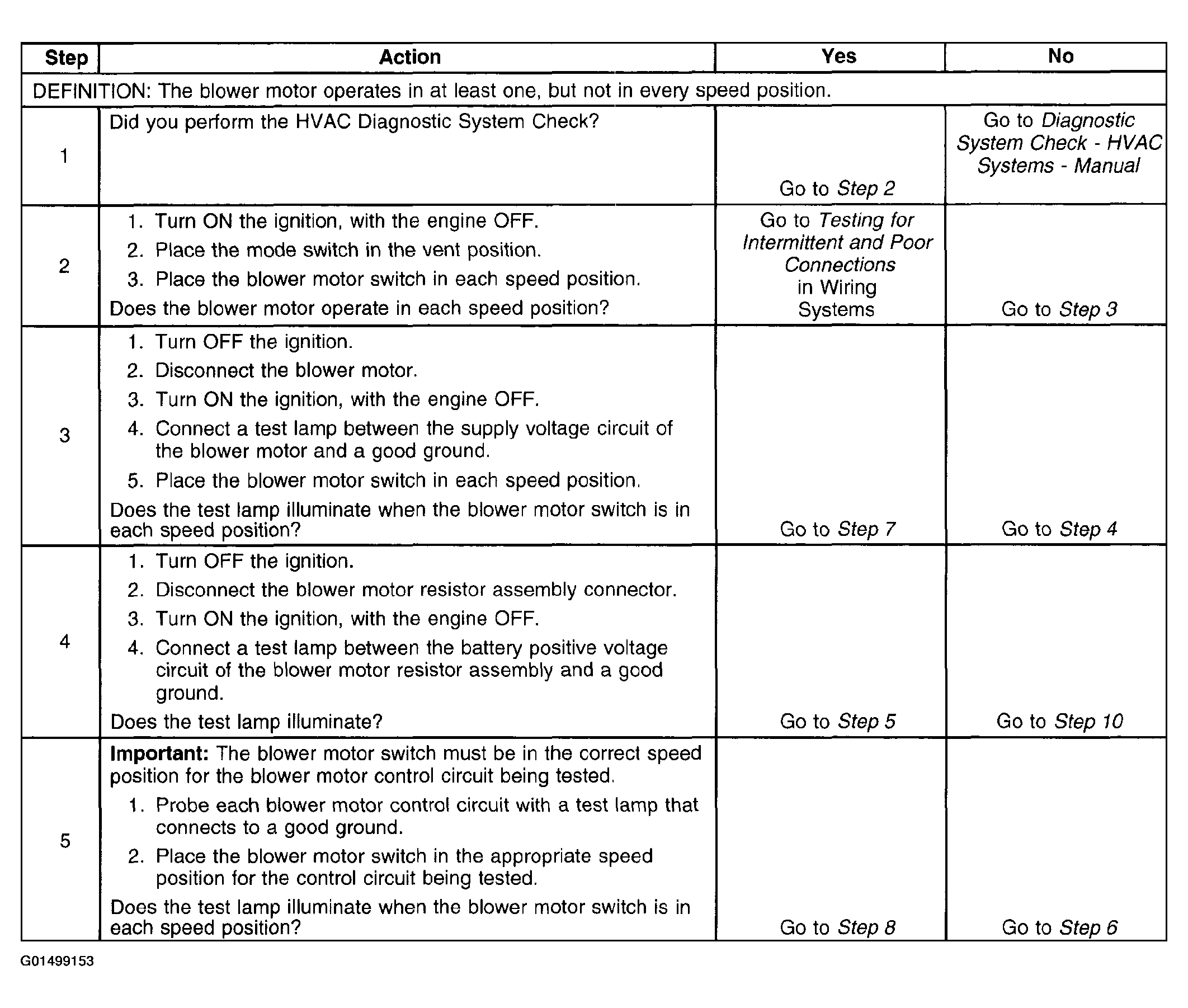

- Blower Motor Malfunction, see Figure
- TOO HOT IN VEHICLE
- TOO COLD IN VEHICLE
- AIR DELIVERY IMPROPER
- AIR RECIRCULATION MALFUNCTION
- LEAK TESTING
- DEFROSTING INSUFFICIENT
- NOISE DIAGNOSIS - BLOWER MOTOR
- NOISE DIAGNOSIS - AIR CONDITIONING (A/C) SYSTEM
- NOISE DIAGNOSIS - HVAC MODULE
- ODOR DIAGNOSIS
