Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear section of the console trim panel. Lift up and towards the rear to release the clips.
  2. Disconnect the rear power supply electrical connector.
  3. Remove the rear duct screws.
  4. Remove the rear duct from the console.
  5. If you are replacing the center section of the console duct, perform the following procedure:
    1. 5.1. Remove the center console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT -- FRONT FLOOR (RENDEZVOUS) .

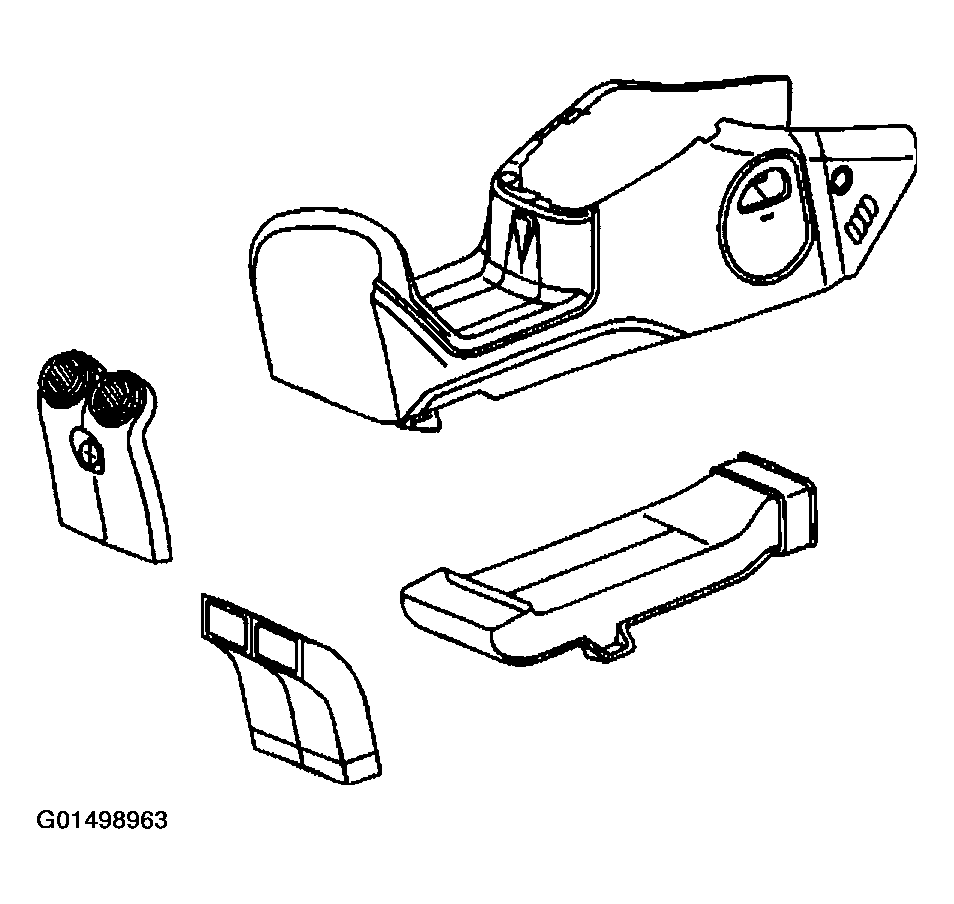

      Fig 1: Replacing Outlet Auxiliary Air - Floor Console
      G01498963Courtesy of GENERAL MOTORS CORP.
    2. 5.2. Rotate the console so that the bottom side is up.
    3. 5.3. Remove the center duct screws.
    4. 5.4. Remove the center console duct from the console.
