Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble the A/C refrigerant components. Refer to the appropriate repair procedure.
    • For compression style fittings use a back up wrench on the fitting (2) and loosen the fitting nut (1).
    • For banjo style fittings remove the bolt retaining the banjo type fitting.
  2. Remove the O-ring seal from the A/C refrigerant component.
  3. Inspect the O-ring seal for signs of damage.
  4. Inspect the A/C refrigerant components for damage or burrs. Repair if necessary.
  5. Discard the O-ring seal.

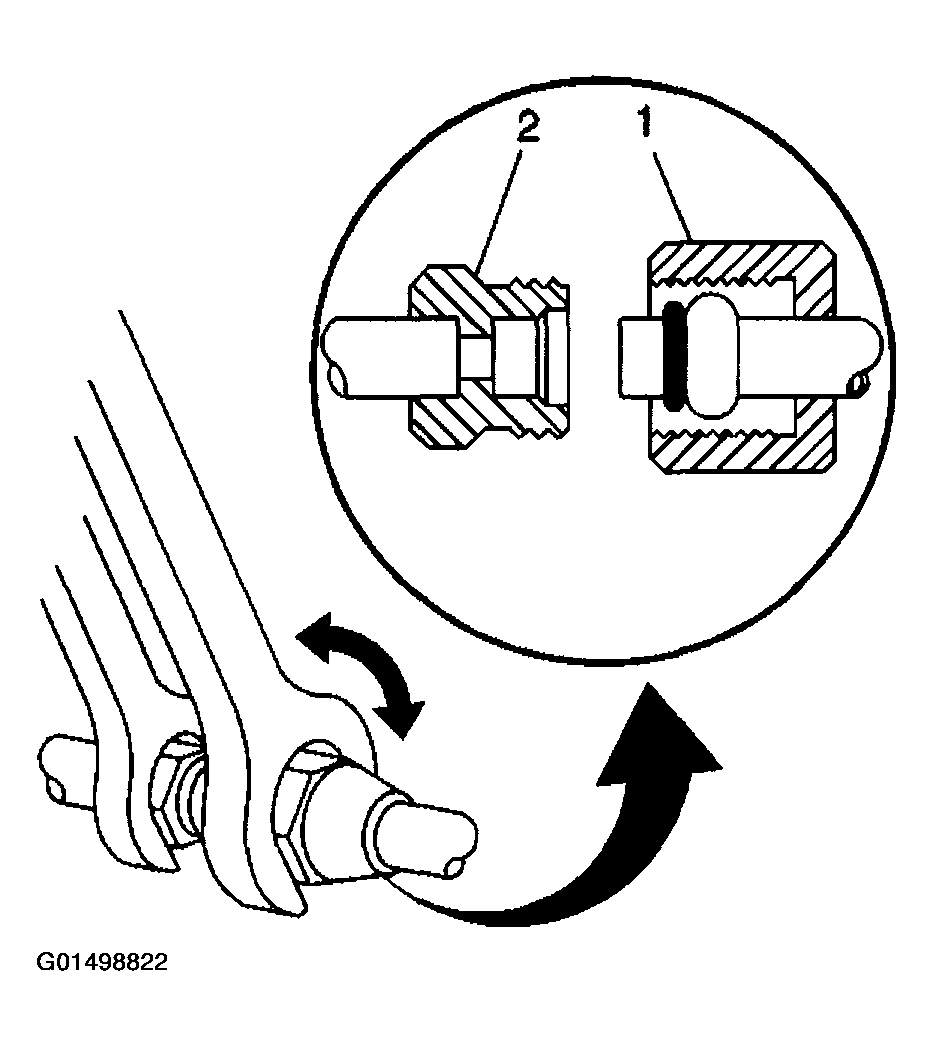

    Fig 1: Removing Procedure O-Ring
    G01498822Courtesy of GENERAL MOTORS CORP.
