Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Important: The defroster door must be closed to allow clearance during defroster duct removal.

Set the HVAC controls in the vent setting to close the defroster door.
Remove the I/P carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
Important: Count the number of threads showing from the tip of the mode actuator push rod to the end of the retainer clip.
Open the mode actuator push rod retainer clip (1) with a small flat- bladed screwdriver.
Disconnect the mode actuator push rod (2) from the retainer clip (1).

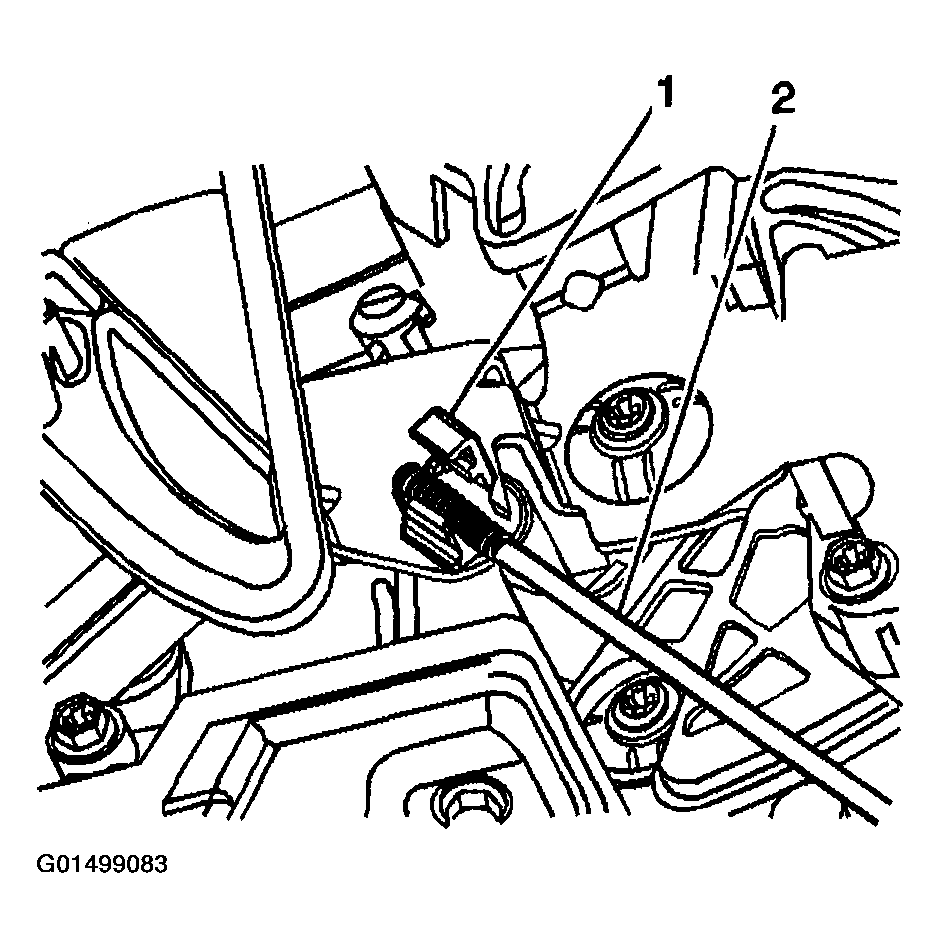

Fig 1: Removing Procedure Mode Door
Courtesy of GENERAL MOTORS CORP.
Remove the left HVAC module mounting bracket from the HVAC module assembly.
Remove the right HVAC module mounting bracket from the HVAC module assembly.

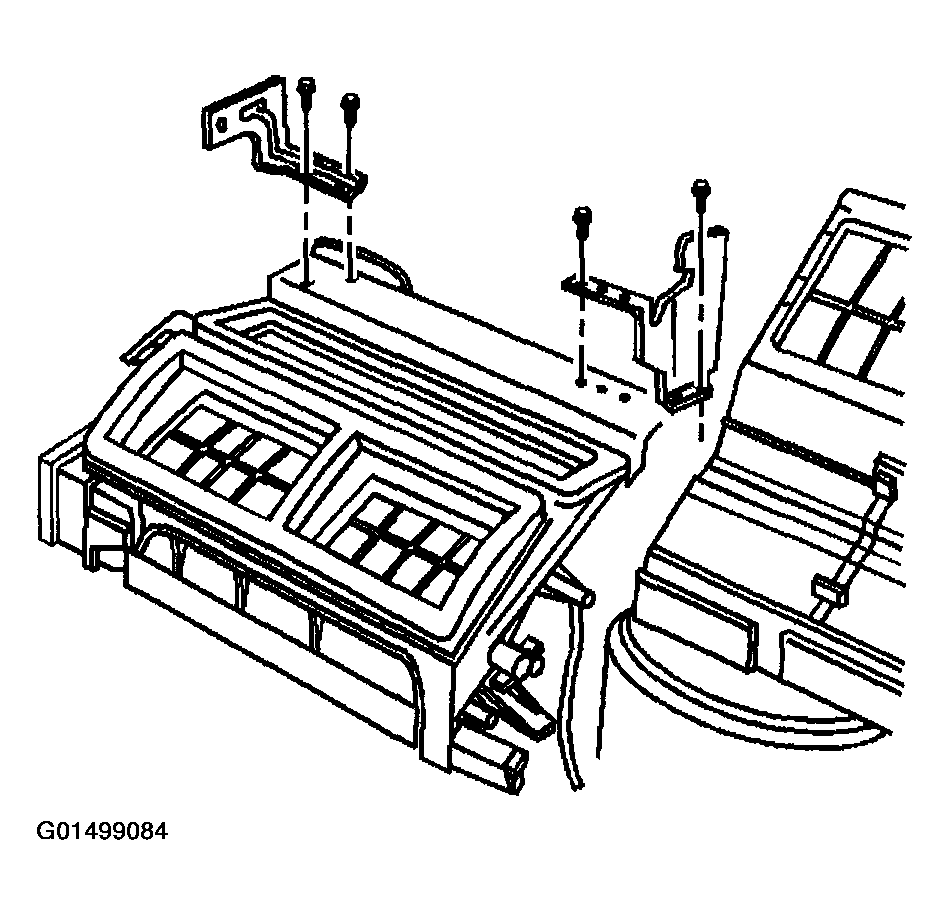

Fig 2: Removing Right HVAC Module Mounting bracket/caption>
Courtesy of GENERAL MOTORS CORP.
Disconnect the secondary defroster door lever from the secondary defroster door.

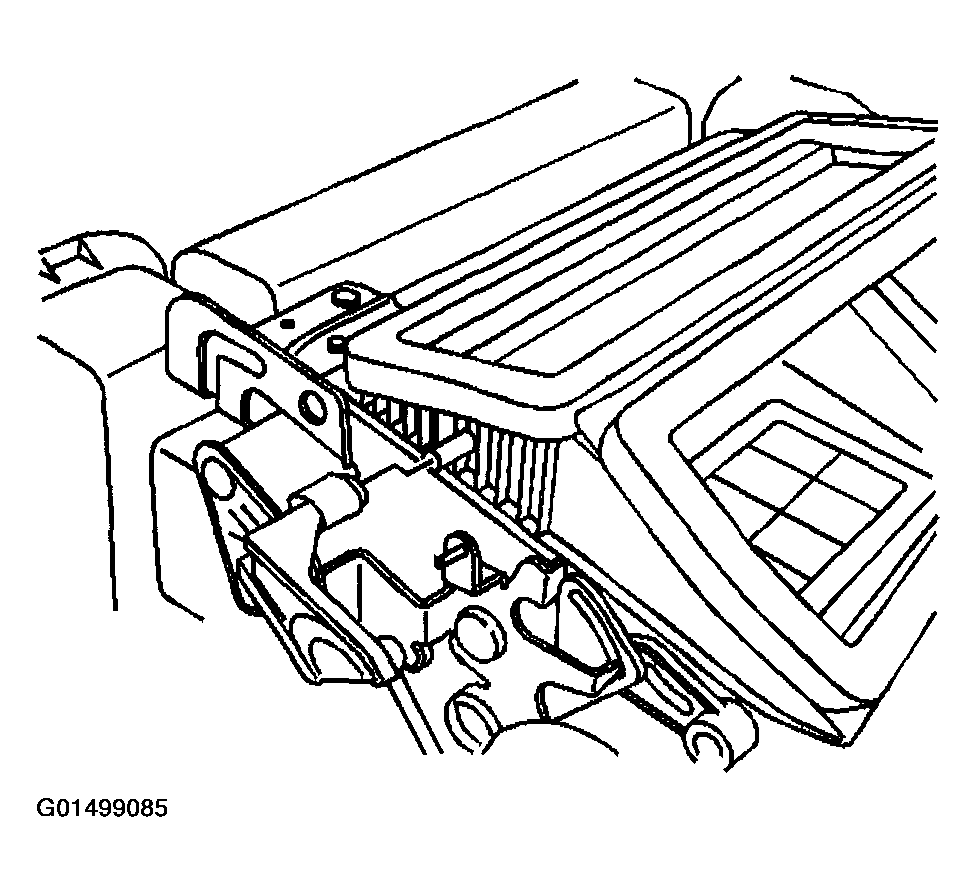

Fig 3: Disconnecting Secondary Defroster Door Lever
Courtesy of GENERAL MOTORS CORP.
Disconnect the defroster door spring (1) from the air distribution cover.

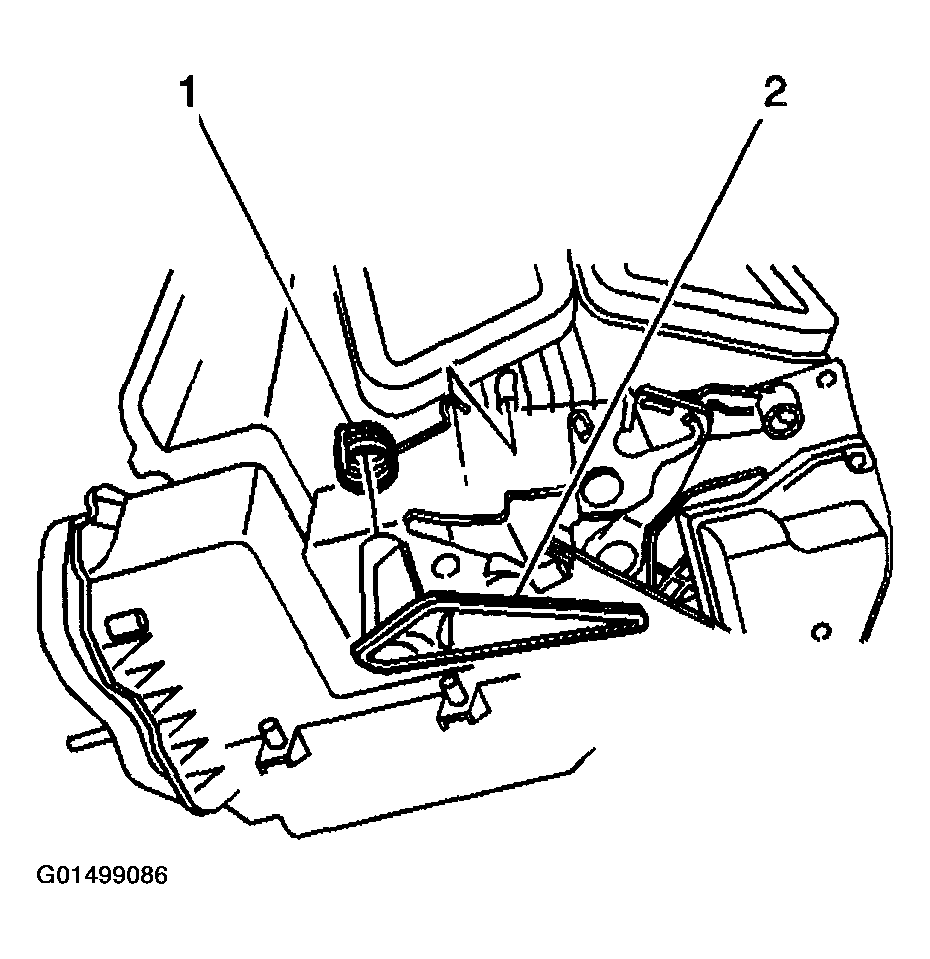

Fig 4: Locating Defroster Door Spring
Courtesy of GENERAL MOTORS CORP.
Remove the air distribution cover screws.
Remove the air distribution cover.

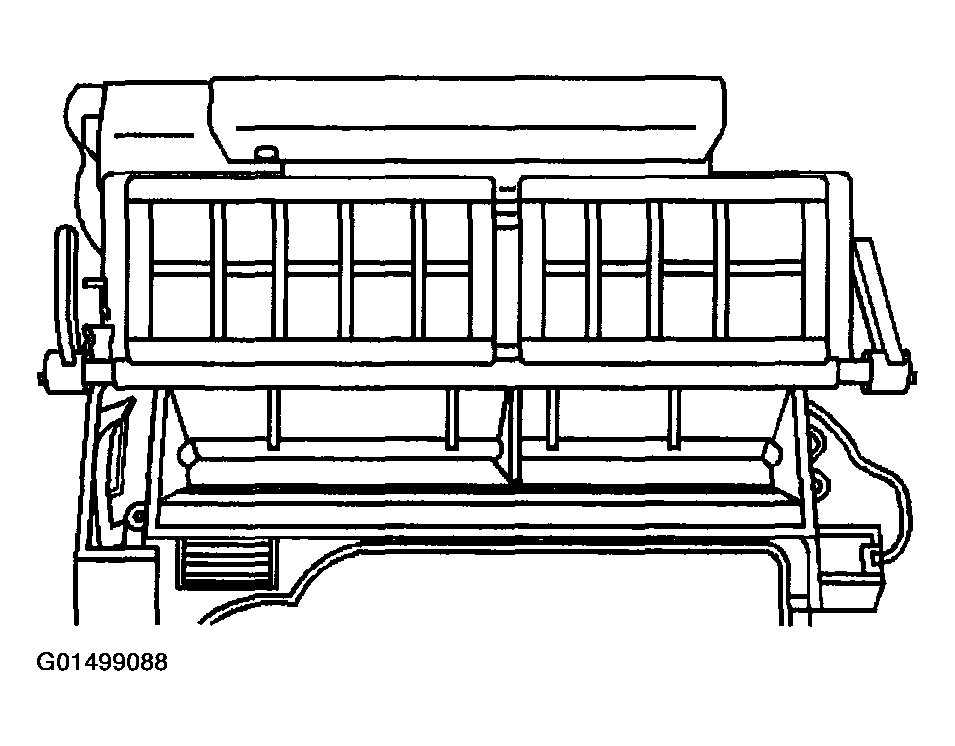

Fig 5: Removing Air Distribution Cover Screws/caption>
Courtesy of GENERAL MOTORS CORP.
Remove the mode door from the HVAC module assembly.
Disconnect and remove the left hand and right hand mode door levers from the mode door.

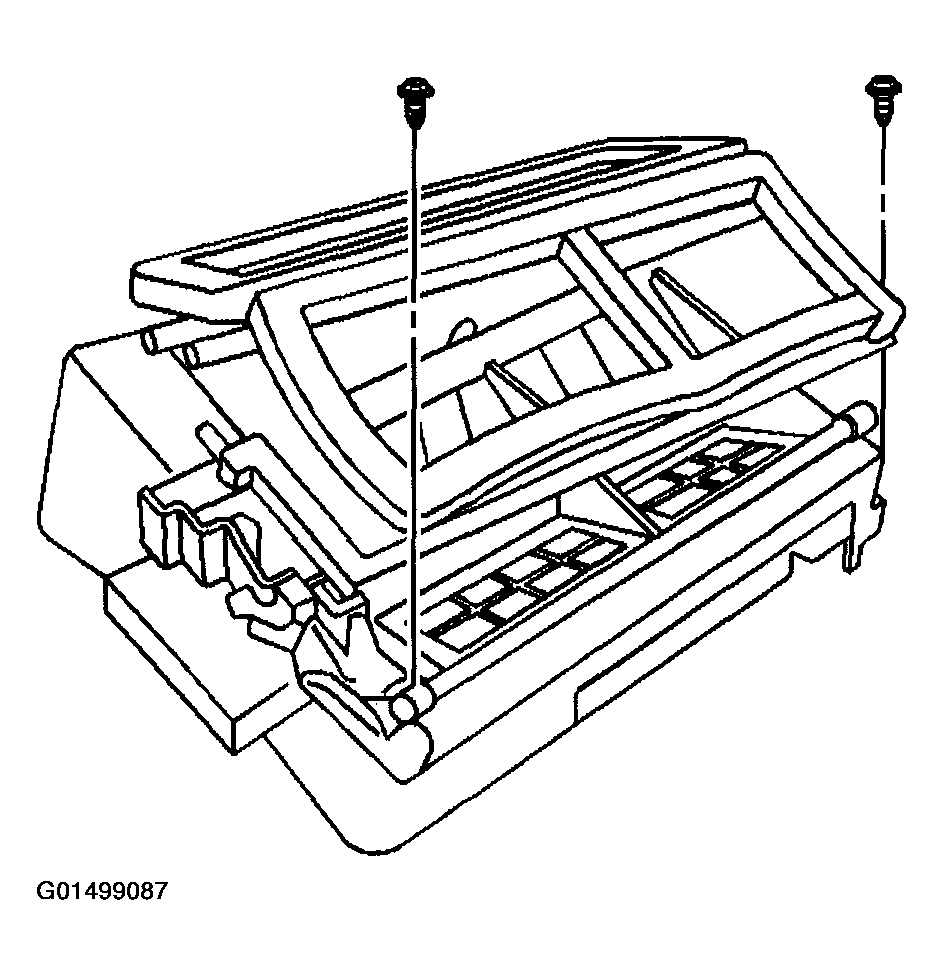

Fig 6: Removing Mode Door From HVAC Module Assembly.
Courtesy of GENERAL MOTORS CORP.
