Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater outlet duct. Refer to AIR OUTLET REPLACEMENT - FLOOR  .
  2. Remove the mode actuator. Refer to MODE ACTUATOR REPLACEMENT or MODE ACTUATOR REPLACEMENT .
  3. Remove the mode door actuator mounting bracket screws.
  4. Remove the mode door actuator mounting bracket.

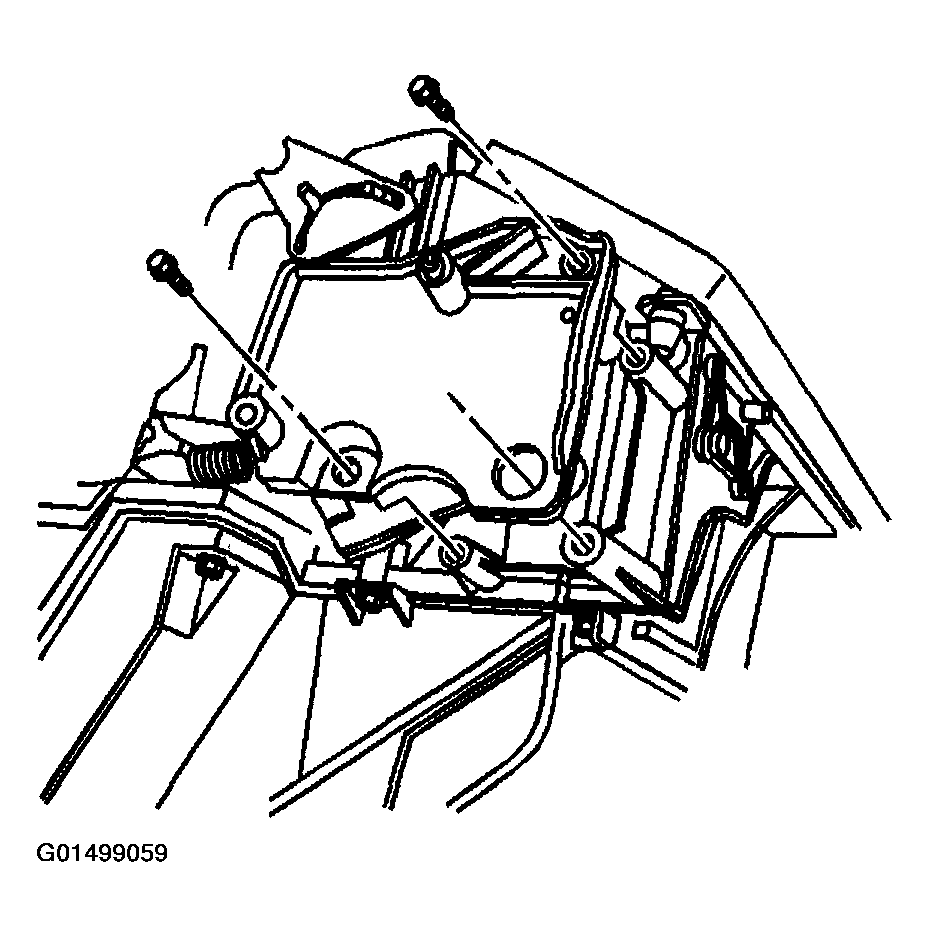

    Fig 1: Removing Mode Door Actuator Mounting Bracket Screws
    G01499059Courtesy of GENERAL MOTORS CORP.
  5. Disconnect and remove the floor air door lever from the floor air door.

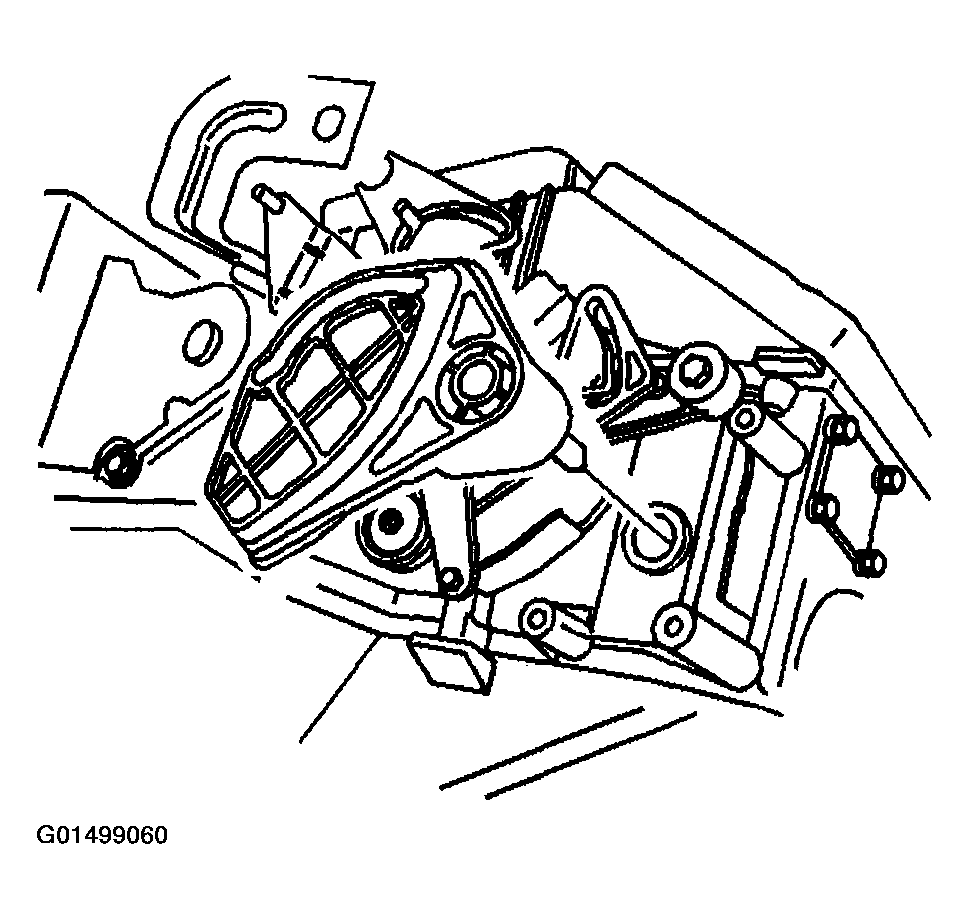

    Fig 2: Removing Floor Air Door Lever
    G01499060Courtesy of GENERAL MOTORS CORP.
  6. Remove the floor air door from the HVAC module.

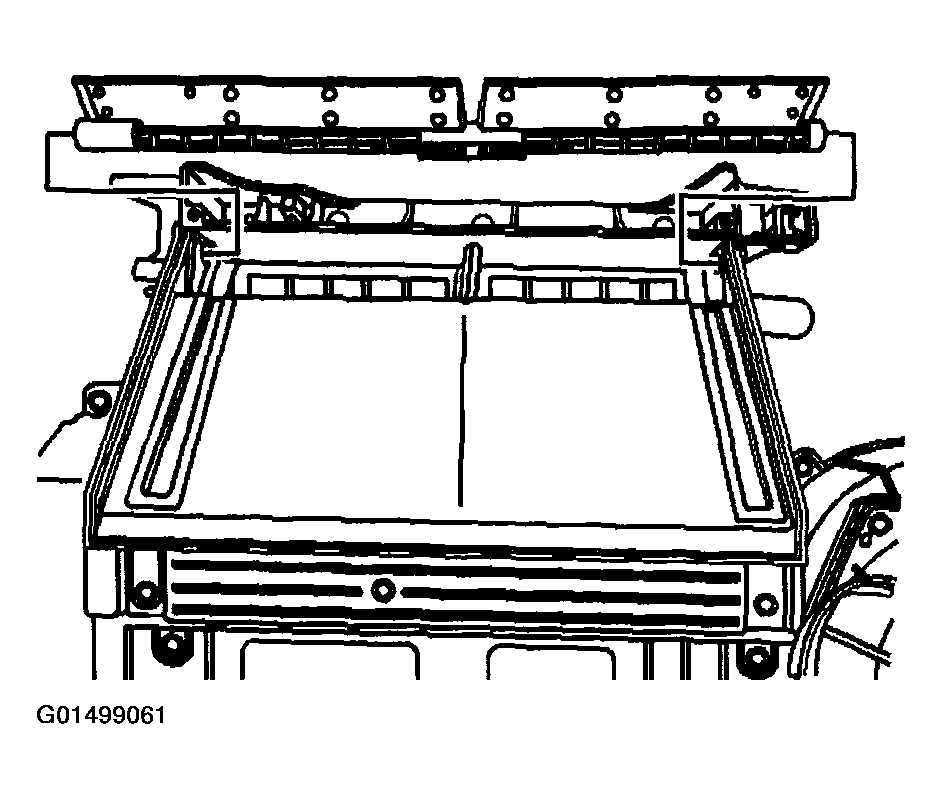

    Fig 3: Removing Floor Air Door
    G01499061Courtesy of GENERAL MOTORS CORP.
